Quantic PMI (Planar Monolithics) Products in Action

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

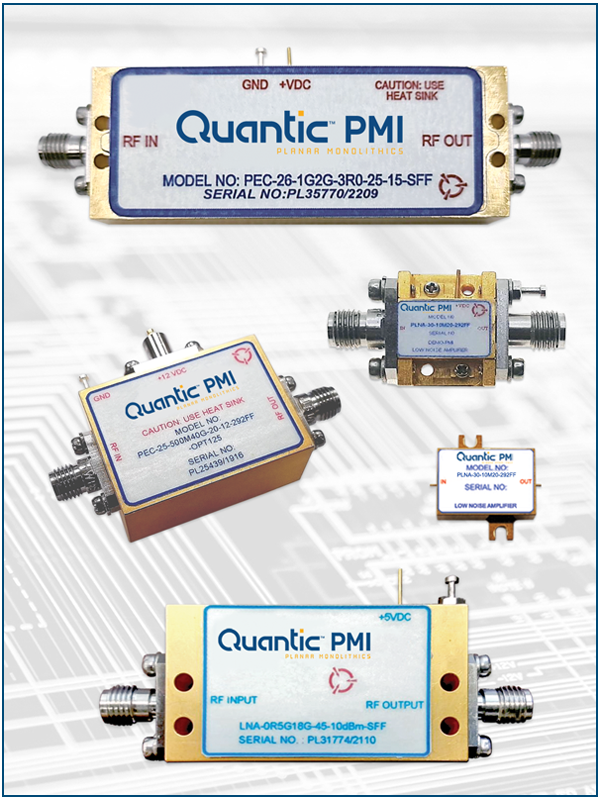

Featured Products

Learn More

Low Video Amplifier

DLVA-70M-80-15V

Frequency Range: 50 to 90 MHz

TSS: -80 dBm

Dynamic Range: -80 to 0 dB

Input VSWR: 1.5:1

Log Slope: 24.9 mV/dB

Log Linearity: ±1.23 dB

Rise Time: 28.8 ns

Limited RF Output: 0 dBm

SMA Female Connectors

Housing: 3.51" x 1.50" x 0.47"

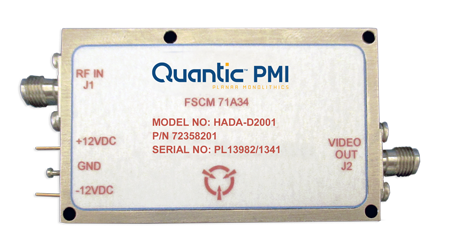

Log Video Amplifier

HADA-D2001

Frequency Range: 0.5 to 2 GHz

TSS: -44.1 dBm

Dynamic Range: 40 dB

Frequency Flatness: ±0.1 dB

Logging Accuracy: ±1.5 dB

Log Linearity: ±0.5 dB

Maximum Input Power: 23 dBm

Rise Time: 28 ns

Fall Time: 102 ns

Input VSWR: 1.29:1

Propagation Delay: 40 ns

SMA Female Connectors

Housing: 2.50" x 1.50" x 0.44"

Learn More

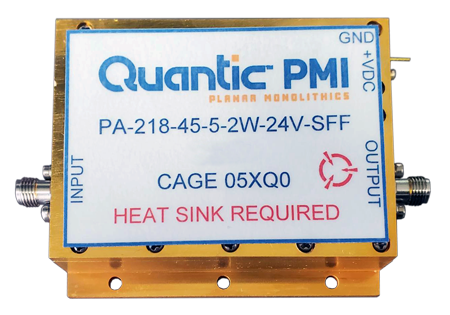

Power Amplifier

PA-218-45-5-2W-24V-SFF

Frequency Range: 2 to 18 GHz

Gain: 56 dB

Gain Flatness: 3.02 dB

VSWR: 1.87:1

Noise Figure: 3.36 dB

PSAT: 34 dBm

Maximum Input Power: 20 dBm

SMA Female Connectors

Housing: 2.88" x 2.50" x 0.67"

Low Noise Amplifier

PUB-15-30M20G-20-LCA

Frequency Range: 0.03 to 20 GHz

Gain: 15 dB

Gain Flatness: 2.21 dB

Noise Figure: 3 dB

OP1dB: 20 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More

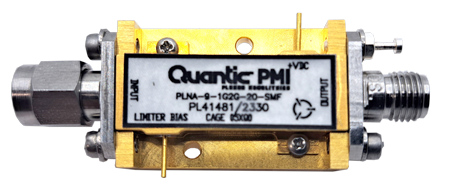

Low Noise Amplifier

PLNA-9-1G2G-20-SMF

Frequency Range: 1 to 2 GHz

Gain: 10.3 dB

Gain Flatness: 0.15 dB

Noise Figure: 3.8 dB

IP1dB: 14 dB

Input Power: 2 W

VSWR: 1.54:1

SMA Male/Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PLNA-2G4G-42-3DB-9DBM-SFF

Frequency Range: 2 to 4 GHz

Gain: 45 dB

Gain Flatness: ±1.35 dB

Noise Figure: 2.8 dB

Saturated Output Power: 11 dBm

Harmonics @ 5 dBm Input: -19 dBc

VSWR: 1.67:1

SMA Female Connectors

Housing: 2.75" x 1.15" x 0.66"

Learn More

Low Noise Amplifier

PE2-30-8R018R0-3R5-22-12-SFF

Frequency Range: 8 to 18 GHz

Gain: 36.3 dB

Gain Flatness: ±1.44 dB

Noise Figure: 3.5 dB

OP1dB: 18.7 dBm

VSWR: 1.83:3

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

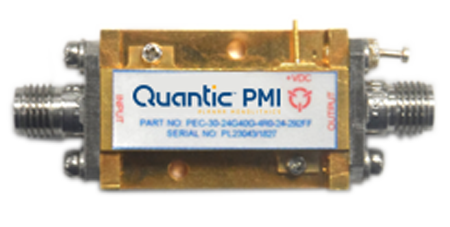

Low Noise Amplifier

PEC-30-24G40G-4R0-24-292FF

Frequency Range: 24 to 40 GHz

Gain: 30 dB

Gain Flatness: ±1.5 dB

Noise Figure: 6 dB

OP1dB: 24 dBm

VSWR: 2.5:1

2.92mm Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More

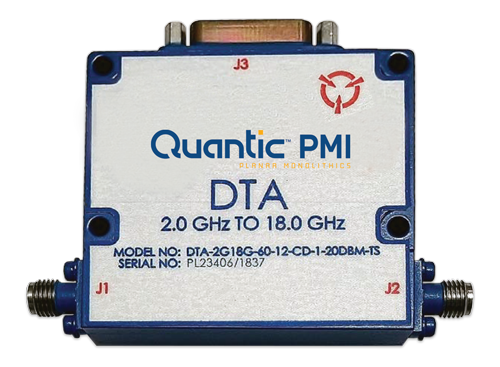

12-Bit Digital Attenuator

DTA-2G18G-60-12-CD-1-20DBM-TS-NSI

Frequency Range: 2 to 18 GHz

Insertion Loss: 4.2 dB

VSWR: 1.6:1

Flatness: 0.54 dB

Accuracy of Attenuation: 0.23 dB

Switching Speed: 1 µs

Digital Control: 12 Bit TTL

SMA Female Connectors

Housing: 2.0" x 1.8" x 0.5"

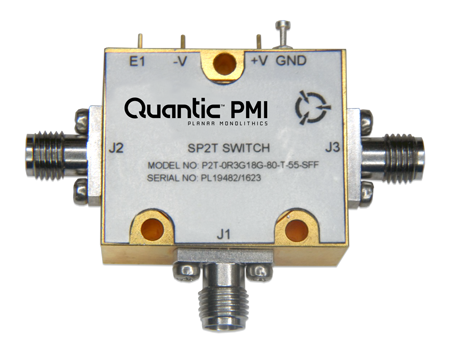

SP2T Absorptive Switch

P2T-0R3G18G-80-T-55-SFF

Frequency Range: 0.3 to 18 GHz

Insertion Loss: 2.7 dB

Isolation: 90.6 dB

VSWR: 1.7:1

Rise/Fall Time: 50 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.2" x 1.0" x 0.5"

Learn More

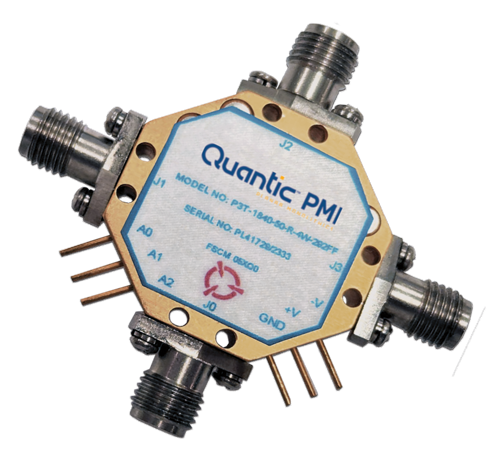

SP3T Reflective Switch

P3T-1840-50-R-4W-292FF

Frequency Range: 18 to 40 GHz

Insertion Loss: 3.76 dB

Isolation: 64.4 dB

VSWR: 1.92:1

Switching Speed: 50 ns

Operating Power Peak: 4 W

2.92mm Female Connectors

Housing: 0.966" x 0.966" x 0.365"

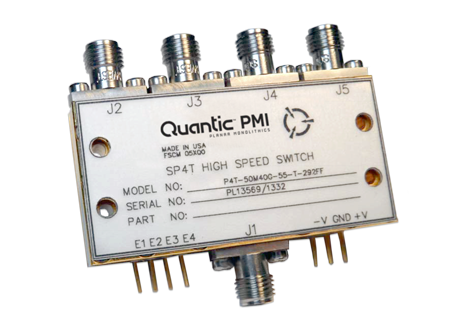

SP4T Absorptive Switch

P4T-50M40G-55-T-292FF

Frequency Range: 0.05 to 40 GHz

Isolation: 56.4 dB

Insertion Loss: 6 dB

VSWR: 2.48:1

Input Power: 20 dBm

Survival Power: 0.5 W CW, 5 W Peak, 1 us

Switching Speed: 85 ns

2.92mm Female Connectors

Housing: 2.0" x 1.0" x 0.4"

Learn More

SP8T Absorptive Switch

P8T-0R120G-110-T-512-SFF

Frequency Range: 0.1 to 20 GHz

Insertion Loss: 5.55 dB

Isolation: 110 dB

VSWR: 1.98:1

Switching Speed: 75 ns

SMA Female Connectors

Housing: Ø1.5" x 0.7"

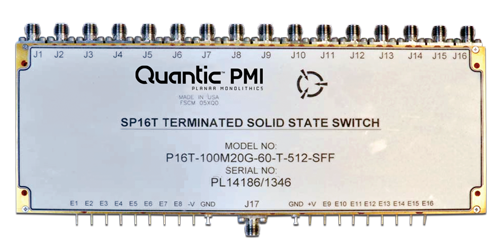

SP16T Absorptive Switch

P16T-100M20G-60-T-512-SFF

Frequency Range: 0.1 to 20 GHz

Insertion Loss: 7.88 dB

Isolation: 76 dB

VSWR: 1.92:1

Switching Speed Rise/Fall: 50/10 ns

Switching Speed Delay On/Off: 150 ns

Input Power: 20 dBm

Survival Power: 1 W CW, 10 W Peak

SMA Female Connectors

Housing: 8.00" x 3.00" x 0.65"

Learn More

Bi-Phase Modulator

BPM-2G18G-180-SFF-MB

Frequency Range: 2 to 18 GHz

Insertion Loss: 5.4 dB

VSWR: 2.0:1

Switching Speed: 100 ns

Amplitude Balance: 1.82 dB

SMA Female Connectors

Housing: 2.25" x 1.60" x 0.60"

Limiter

LM-10M2D5G-100CW-1KWP-SFF-ROHS

Frequency Range: 0.01 to 2.5 GHz

Insertion Loss: 0.7 dB

VSWR: 1.22:1

Input Power: 100 W CW

Flat Leakage: 14 dBm

P1dB: 5 dBm

Recovery Time: 2 us

SMA Female Connectors

Housing: 1.86" x 0.65" x 0.38"

ROHS Compliant

Learn More

Limiter

LM-20M15G-100W-15DBM

Passband Frequency: 0.02 to 15 GHz

Insertion Loss: 1.8 dB

VSWR: 1.85:1

RF Power Handling: 100 W CW

Leakage Power: 15 dBm

P1dB: 5 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

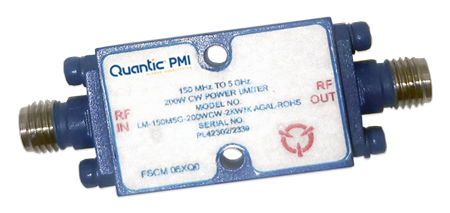

Limiter

LM-150M5G-200CW-2KWPK-AGAL-ROHS

Frequency Range: 0.15 to 5 GHz

Insertion Loss: 1.2 dB

VSWR: 1.7:1

Power Handling: 200 W CW

Peak Power Handling: 2 KW Peak

Flat Leakage: 20 dBm

P1dB: 10 dBm

Recovery Time: 100 ns

SMA Female Connectors

Housing: 1.00" x 0.68" x 0.35"

COTS Availability

ROHS Compliant

Learn More

Threshold Detector

TD-30T-218-FC-HS

Frequency Range: 2 to 18 GHz

VSWR: 2.7:1

Dynamic Range: -20 to +5 dBm

Threshold Variation Frequency: ±1.5 dB

Propagation Delay On/Off: 100 ns

SMA Female Connectors

Housing: 0.80" x 0.62" x 0.40"

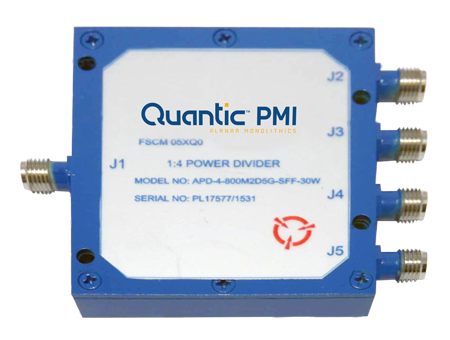

4-Way Power Divider

APD-4-800M2D5G-SFF-30W

Frequency Range: 0.8 to 2.5 GHz

Insertion Loss: 0.3 dB

VSWR: 1.17:1

Isolation: 22 dB

Amplitude Balance: ±0.3 dB

Phase Balance: ±6°

Power Handling Forward/Reversed: 30/1 W

SMA Female Connectors

Housing: 1.97" x 2.21" x 0.39"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
