Why wait to get what you need today... 4,000+ COTS High-Reliability Components & IMAs available!



Select from over 4,000+ available RF & Microwave products that can be shipped from Quantic PMI directly or one of its authorized distributors to you the same day. Eliminate Non-Recurring Engineering fees (NRE), long lead times and reduce your inventory burden. Check stock easily using the “Buy Now” Button on the product specification sheets or select from the available “Stock Items” on the quanticpmi.com site!

Visit us @

Booth # 1438

Featured Products

Digitally Controlled Phase Shifter

PS-360-16G22G-10B-SFF

Frequency Range: 16.0 to 22.0 GHz

Insertion Loss: 10.53 dB

VSWR: 1.92:1

Phase Accuracy: 4.6°

Switching Speed: 500 ns

Operating Power: +10 dBm

Survival Power: +25 dBm

SMA Female Connectors

Housing: 2.00" x 2.10" x 0.50"

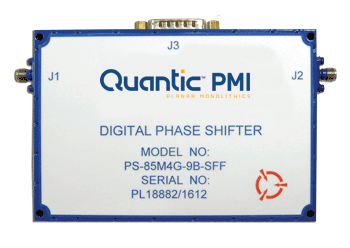

Digitally Controlled Phase Shifter

PS-85M4G-9B-SFF

Frequency Range: 0.085 to 4.0 GHz

Insertion Loss: 7.9 dB

VSWR: 1.53:1

Phase Shift: 360°

Amplitude Error: ±0.12 dB

Phase Shift Error: +0.6°

Switching Speed: 300 ns

SMA Female Connectors

Housing: 4.95" x 3.38" x 1.00"

Fixed Attenuator

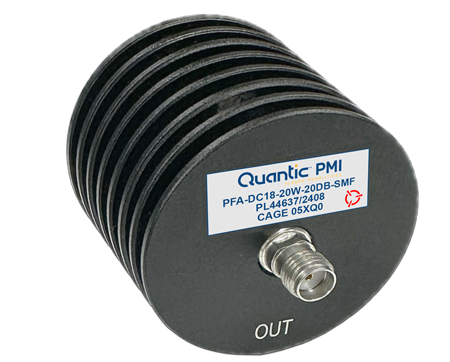

PFA-DC18-20W-20DB-SMF

Frequency Range: DC to 18.0 GHz

Nominal Attenuation: 19.91 dB

VSWR: 1.18:1

Input Power: 20 W

SMA Male/Female Connectors

Housing: 1.87" x Ø1.50"

Digitally Controlled Attenuator

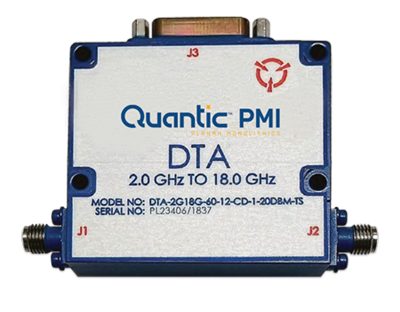

DTA-2G18G-60-12-CD-1-20DBM-TS-NSI

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 4.2 dB

VSWR: 1.6:1

Flatness: 0.54 dB

Accuracy of Attenuation: 0.22 dB

Temp Sensor: 3.03 V

Switching Speed: 1 us

SMA Female Connectors

Housing: 2.00" x 1.80" x 0.50"

Logarithmic Amplifier (ERDVLA)

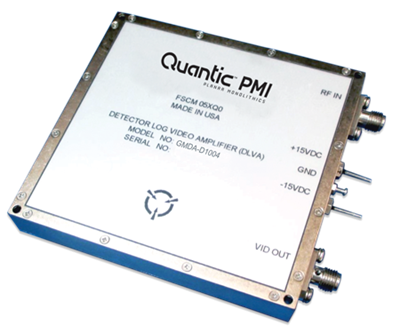

GMDA-D1004

Frequency Range: 2.0 to 18.0 GHz

TSS: -65.2 dBm

Log Slope: 25 ± 1 mV/dB

Log Linearity: ±1.5 dB

Log Range: - 60 to +7 dBm

Flatness: 100 mV

RF Safe Input Power: +23 dBm

Input VSWR: 2.3:1

Video Rise Time: 30 ns

Recovery Time: 1 us

Throughput Time: 30 ns

Video Bandwidth: 10 MHz

Offset Voltage: ±50 mV

2.92 mm Female Connectors

Housing: 3.50" x 3.20" x 0.50"

Low Noise Amplifier

PUB-15-30M20G-20-LCA

Frequency Range: 0.03 to 20.0 GHz

Gain: +15 dB

Gain Flatness: ±2.02 dB

Noise Figure: 3 dB

OP1dB: +21.6 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

PLNA-9-1G2G-20-SMF

Frequency Range: 1.0 to 2.0 GHz

Gain: 10.42 dB

Gain Flatness: 0.09 dB

Noise Figure: 3.68 dB

IP1dB: 14 dBm

Input Power: 2 W

VSWR: 1.57:1

SMA Male/Female Connectors

Housing: 1.08" x 0.71" x 0.29"

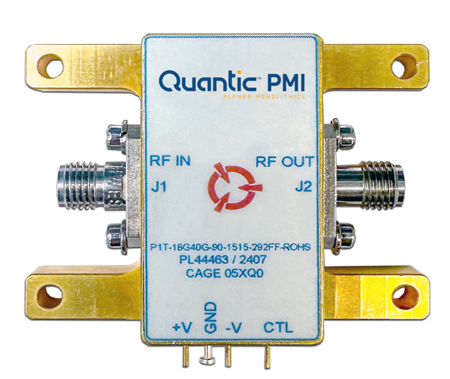

SPST Absorptive Switch

P1T-18G40G-90-1515-292FF-ROHS

Frequency Range: 18.0 to 40.0 GHz

Isolation: 91 dB

Insertion Loss: 4.93 dB

VSWR: 1.7:1

Input Power: 23 dBm

Switching Speed: 16.7 ns

2.92 mm Female Connectors

Housing: 1.37" x 1.50" x 0.60"

SP2T Absorptive Switch

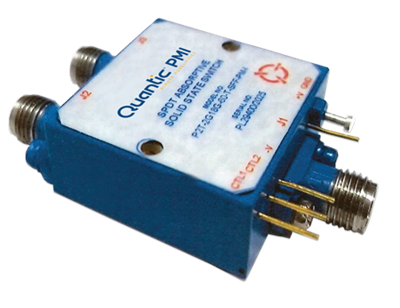

P2T-2G18G-60-T-SFF-PM-I

Center Frequency: 2.0 to 18.0 GHz

Input Power: +20 dBm

VSWR: 1.76:1

Insertion Loss: 2.81 dB

Phase Matching: 1.7°

Isolation: 76 dB

Switching Speed: 30 ns

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

SP2T Reflective Switch

P2T-12G18G-45-R-SFF-10W

Frequency Range: 12.0 to 18.0 GHz

Insertion Loss: 1.57 dB

Isolation: 46.83 dB

VSWR: 1.51:1

Rise/Fall Time: 50 ns

Delay On/Off: 50 ns

Pulse Width: 1 us

Port to Port Switching: 60 ns

Maximum PRF: 2 MHz

Average/Peak Power: 10 W/30 W

SMA Female Connectors

Housing: 1.20" x 1.00" x 0.50"

SP3T Absorptive Switch

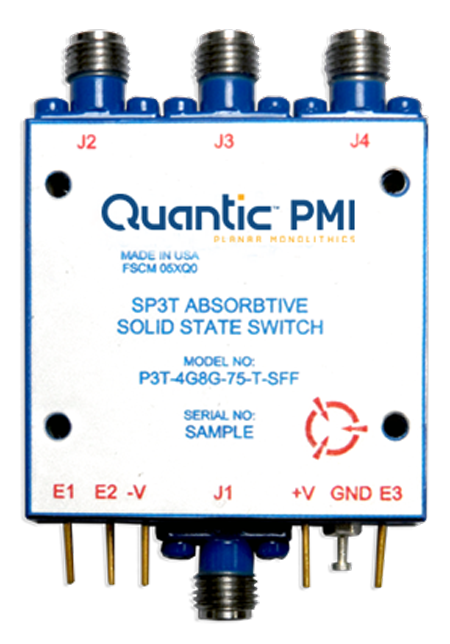

P3T-4G8G-75-T-SFF

Frequency Range: 4.0 to 8.0 GHz

Insertion Loss: 1.72 dB

Isolation: 92 dB

VSWR: 1.44:1

Switching Speed: 100 ns

Input Power: +20 dBm

SMA Female Connectors

Housing: 1.50" x 1.50" x 0.40"

SP3T Reflective Switch

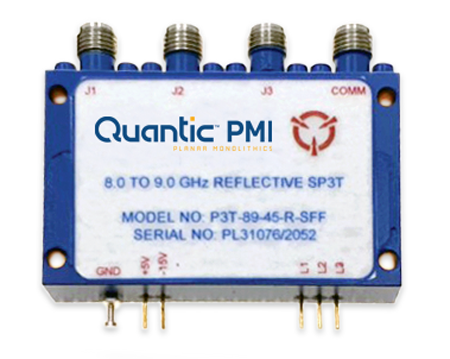

P3T-89-45-R-SFF

Frequency Range: 8.0 to 9.0 GHz

Insertion Loss: 2.4 dB

Isolation: 51.4 dB

VSWR: 1.63:1

Switching Speed: 100 ns

Power Handling: 10 W

SMA Female Connectors

Housing: 2.00" x 1.25" x 0.40"

Limiter

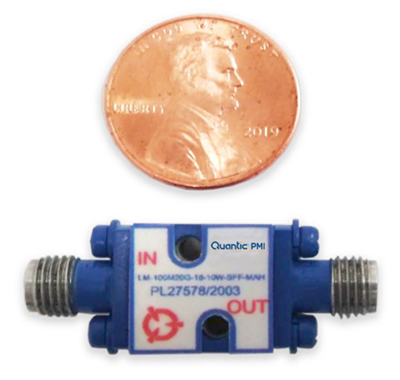

LM-100M20G-18-10W-SFF-MAH

Frequency Range: 0.1 to 20.0 GHz

Insertion Loss: 1.69 dB

VSWR: 1.6:1

Max Pulsed Peak Power Handling: 10 W

Max CW Input Power: 1 W

Max Flat Leakage: 18 dBm

Recovery Time: 115 ns

SMA Female Connectors

Housing: 0.50" x 0.50" x 0.22"

Limiter

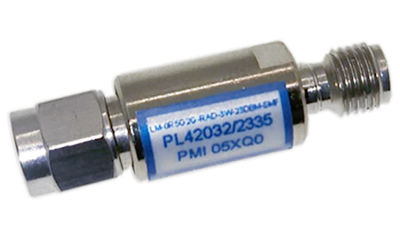

LM-0R5G2G-RAD-3W-23DBM-SMF

Frequency Range: 0.5 to 2.0 GHz

Insertion Loss: 0.39

Recovery Time: 200 ns

VSWR: 1.19:1

Power Handling: 3 W

Leakage Power: 200 mW

2.92 mm Male/Female Connectors

Housing: 1.314" x Ø0.188"

Limiter

LM-10M18G-16-20W-RAD-OPT28

Frequency Range: 2.0 to 8.0 GHz

Insertion Loss: 0.83 dB

VSWR: 1.4:1

RF Power Handling: 20 W

Limiting Threshold: +9 dBm

Leakage Power: 15.10 dBm

Recovery Time: 114 ns

2.92 mm Male/Female Connectors

Housing: Ø0.375 x 1.314"

Threshold Detector

TD-50M4G-CD-SFF

Frequency Range: 0.05 to 4.0 GHz

VSWR: 1.9:1

Dynamic Range: -20 to +10 dBm

Threshold Variation: ±0.75 dB

Propagation Delay: 20 ns

Minimum Pulse Width: 100 ns

Temperature Stability: 1 dB

Threshold Level Setting Range: -20 to 0 dBm

Input Power: 100 mW

SMA Female Connectors

Housing: 0.85" x 0.62" x 0.20"

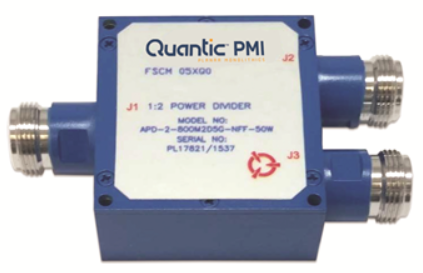

2-Way Power Divider

APD-2-800M2D5G-NFF-50W

Frequency Range: 0.8 to 2.5 GHz

Insertion Loss: 0.34 dB

VSWR: 1.15:1

Isolation: 27.05 dB

Amplitude Balance: 0.03 dB

Phase Balance: 0.2°

Power Handling: 50 W

N Female Connectors

Housing: 1.89" x 2.05" x 0.79"

Phase Locked Oscillator

PLDRO-12522R24M-13DBM-SFF

Frequency Range: 12.52224 GHz

External Reference: 130.44 MHz

Reference Input Power: 0 ± 3 dB

Output Power: 15.42 dBm

Spurious: -70 dBc

Harmonics: -36.57 dBc

Phase Noise: -130 dBc/Hz

SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.

In-Stock

Amplifiers - Solid State

Attenuators - Variable / Programmable / Fixed

Detector Log Video Amplifiers

Filters & Switched Filter Banks

Frequency Converters

Frequency Discriminators & IFM

Frequency Sources

I/Q Vector Modulators

Limiters

Phase Shifters & Bi-Phase Modulators

Switches - Solid State

Detectors

Form, Fit, Function Products & Services

Gain & Loss Equalizers

Integrated MIC/MMIC Assemblies (IMAs)



Miscellaneous Products

Monopulse Comparators

Power

Dividers/Combiners

Rack Mount & Chassis Products

Receiver Front Ends & Transceivers

Switch Filter Banks

Switch Matrices

SMT & QFN Products

Couplers (90°, 180°

& Directional)

USB Products
