Quantic PMI (Planar Monolithics) Products in Action

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Latest News & Events

March 2025

Quantic PMI High Power Limiters - Designed for Your Mission-Critical Applications!...

Quantic PMI's portfolio of Limiters offer DC to 70 GHz frequency coverage, low loss, high speed, low leakage levels, high peak power handling, small size, and surface mount or connectorized packaging. Available options include form, fit and function designs (our specialty); choice of connectors; hermetic sealing, military or space screening and custom packaging. These Limiters are ideal for your military, commercial, and industrial applications! COTS & RoHs complaint designs available.

Get More Info

Need it Now?... 4,500+ In Stock & COTS High-Reliability Components & IMAs available!

Select from over 4,500+ available RF & microwave products that can be shipped from Quantic PMI directly or one of its authorized distributors to you the same day. Eliminate Non-Recurring Engineering fees (NRE), long lead times and reduce your inventory burden. Check stock easily using the “Buy Now” Button on the product specification sheets or select from the available “Stock Items” on the quanticpmi.com site!

See What's Available!

Quantic PMI to Exhibit @ Satellite 2025

Quantic PMI will be exhibiting at the Satellite 2025 Conference & Exhibition at the Walter E. Washington Convention Centre in, Washington, DC. Stop by & visit us at booth 1421 and discover one of best electronics components companies in the industry - trusted technology leaders in RF & Microwave components, integrated microwave assemblies and more. Speak with our team and discover how we can power your engineering creativity in the most challenging environments.

Get More Info

Visit us @

Booth # 1421

Featured Products

Learn More

Log Video Amplifier

SDLVA-1G20G-55-12-SFF

Frequency Range: 1 to 20 GHz

Frequency Flatness: ±1.3 dB

Log Linearity: 1.48 dB

Logging Range: -55 to +5 dBm

Input VSWR: 2.8:1

Log Video Output Voltage: 0.1 to 2.5 V

Log Video Output Slope: 50 mV/dB

Log Video Output Rise Time: 5 ns

Log Video Output Fall Time: 20 ns

Log Video Recovery Time: 22.5 ns

Log Video Propagation Delay: 15 ns

TSS: -58 dBm

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

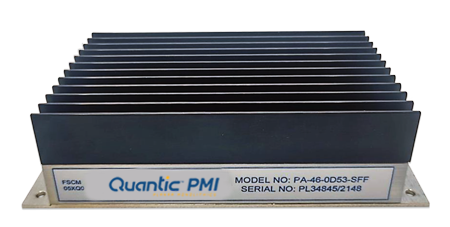

Power Amplifier

PA-46-0D5-SFF

Frequency Range: 0.5 to 3 GHz

Small Signal Gain: 46 dB

Gain Flatness: 2.5 dB

Output Power: 38.31 dBm

Output IP3: 51 dBm

Reverse Isolation: -70.56 dB

Noise Figure: 5 dB

Efficiency at Pout: 20%

VSWR: 1.07:1

SMA Female Connectors

Housing: 7.00" x 3.25" x 2.00"

Learn More

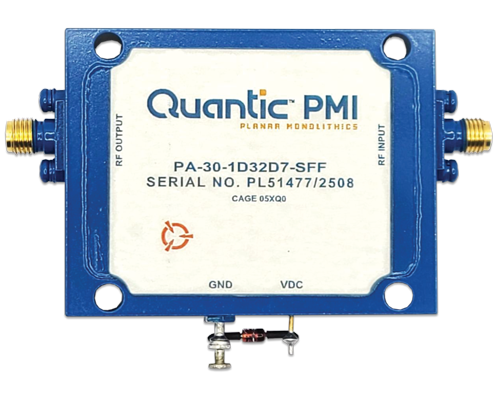

Power Amplifier

PA-30-1D32D7-SFF

Frequency Range: 1.3 to 2.7 GHz

Small Signal Gain: 32.82 dB

VSWR: 1.32:1

Saturation Output Power: 40.09 dBm

SMA Female Connectors

Housing: 2.36" x 1.93" x 0.57"

Low Noise Amplifier

PLNA-39-8G18G-5NF-8DBM-12V-SFF

Frequency Range: 8 to 18 GHz

Gain: 37.6 dB

Gain Flatness: ±0.49 dB

Noise Figure: 3.3 dB

Saturated Output Power: 9.85 dBm

Harmonics at +5 dBm Input: -6 dBc

VSWR: 1.6:1

SMA Female Connectors

Housing: 2.822" x 0.660" x 0.320"

Learn More

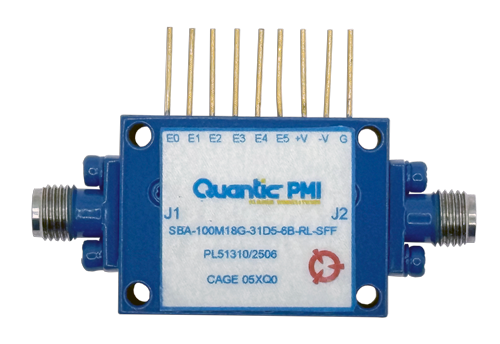

Switched Bit Attenuator

SBA-100M18G-31D5-6B-RL-SFF

Frequency Range: 0.1 to 18 GHz

Insertion Loss: 6 dB

Attenuation Range: 30.4 dB

Step Size: 0.72 dB

Switching Speed: 100 ns

VSWR: 1.98:1

Max RF Input Power: 20 dBm

SMA Female Connectors

Housing: 1.15" x 0.85" x 0.50"

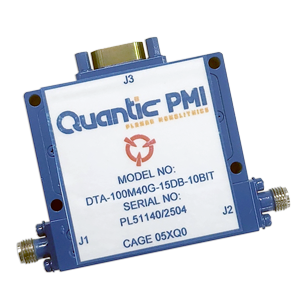

Digital Attenuator

DTA-100M40G-15DB-10BIT

Frequency Range: 0.1 to 40 GHz

Mean Attenuation Range: 16 dB

Insertion Loss: 3 dB

VSWR: 2.04:1

Accuracy of Attenuation: ±0.13 dB

Minimum Attenuation Step: 0.011705 dB

Switching Time: 1 us

2.92mm Female Connectors

Housing: 2.0" x 1.8" x 0.5"

Learn More

SP1T Absorptive Switch

P1T-DC52G-65-T-24FM

Frequency Range: DC to 52 GHz

Isolation: 60.01 dB

Insertion Loss: 6.03 dB

Insertion Loss Flatness: ±0.8 dB

VSWR: 2.0:1

Input Power: 17 dBm

Switching Speed: 14.2 ns

Rise/Fall Time: 1 ns

Video Transients: 7.1 mV

2.4mm Female/Male Connectors

Housing: 1.3" x 1.2" x 0.5"

SP1T Absorptive Switch

P1T-1G18G-65-T-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.75 dB

Isolation: 71 dB

VSWR: 1.91:1

Switching Speed: 50 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

Learn More

SP1T Absorptive Switch

P1T-6G18G-60-T-SFF-1W

Frequency Range: 6 to 18 GHz

Insertion Loss: 2.7 dB

Isolation: 93.1 dB

VSWR: 1.77:1

Switching Speed: 25 ns

Input Power: 30 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

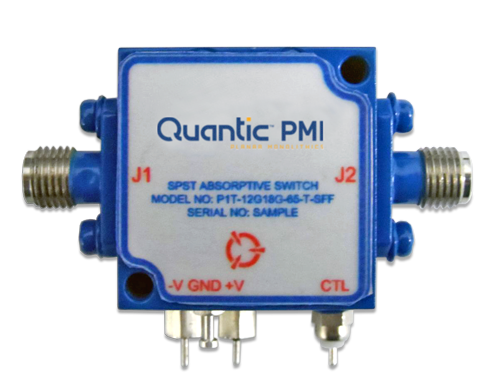

SP1T Absorptive Switch

P1T-12G18G-65-T-SFF

Frequency Range: 12 to 18 GHz

Input Power: 20 dBm

VSWR: 1.95:1

Insertion Loss: 2.77 dB

Isolation: 91.4 dB

Switching Speed: 50 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

Learn More

SP2T Absorptive Switch

P2T-0R3G18G-80-T-55-SFF

Frequency Range: 0.3 to 18 GHz

Insertion Loss: 3 dB

Isolation: 80.2 dB

VSWR: 1.74:1

Rise/Fall Time: 50 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.2" x 1.0" x 0.5"

SP2T Reflective Switch

P2T-2G18G-60-T-SFF-PM-I-NG

Frequency Range: 2 to 18 GHz

Input Power: 20 dBm

VSWR: 1.81:1

Insertion Loss: 2.44 dB

Phase Matching: 1.5°

Isolation: 62 dB

Switching Speed: 30 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

Learn More

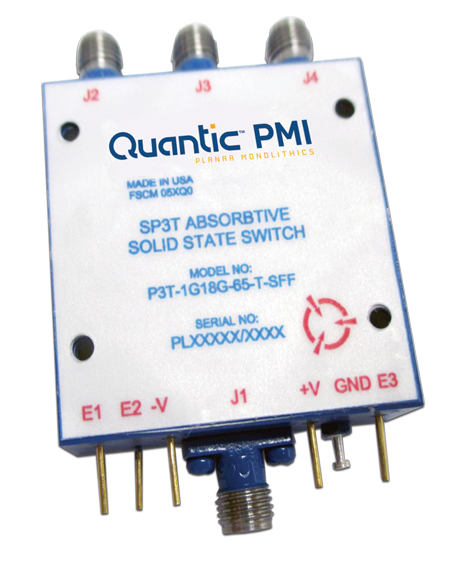

SP3T Absorptive Switch

P3T-1G18G-65-T-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 3.13 dB

VSWR: 1.96:1

Isolation: 71 dB

Switching Speed: 100 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.5" x 1.5" x 0.4"

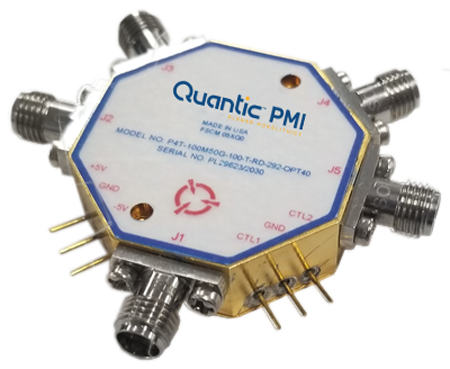

SP4T Absorptive Switch

P4T-100M50G-100-T-RD-292-OPT40

Frequency Range: 0.1 to 40 GHz

Insertion Loss: 3.28 dB

VSWR: 1.92:1

Isolation: 102.61 dB

Input Power: 20 dBm

Switching Speed: 50 ns

2.92mm Female Connectors

Housing: 1.25" x 1.25" x 0.40"

Learn More

SP8T Absorptive Switch

P8T-0D418-75-T-SFF

Frequency Range: 0.4 to 18 GHz

Isolation: 77.6 dB

Insertion Loss: 3.13 dB

Return Loss On/Off: -10 dB

SMA Female Connectors

Housing: 4.02" x 1.18" x 0.39"

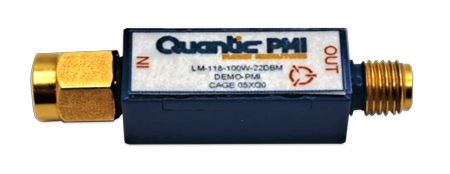

Limiter

LM-118-100W-22DBM

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.58 dB

VSWR: 1.87:1

Leakage: 17.19 dBm

Recovery Time: 100 ns

RF Power Handling: 100 W

Limiting Threshold: 13 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Learn More

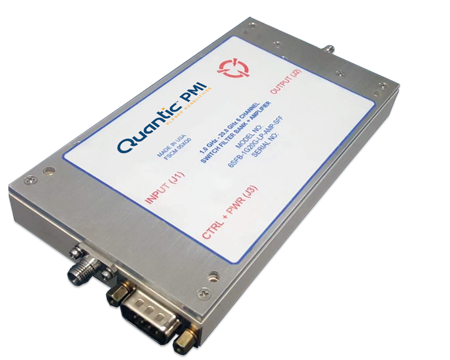

Switch Filter Bank

6SFB-1G20G-LP-AMP-SFF

Frequency Range: 1 to 20 GHz

Gain: 21.4 dB

VSWR: 1.9:1

Rejection: 59 dBc

Output 2nd Harmonic: 45 dBc @ 0 dBm

Switching Speed: 100 ns

Power Handling: 15 dBm

Output P1dB: 18 dBm

SMA Female Connectors

Housing: 5.50" x 0.75" x 0.75"

Threshold Detector

TD-30T-218-FC-HS

Frequency Range: 2 to 18 GHz

VSWR: 2.7:1

Dynamic Range: -20 to -10 dBm

Threshold Variation Frequency: ±1.5 dB

Propagation Delay: 100 ns

SMA Female Connectors

Housing: 0.80" x 0.62" x 0.40"

Learn More

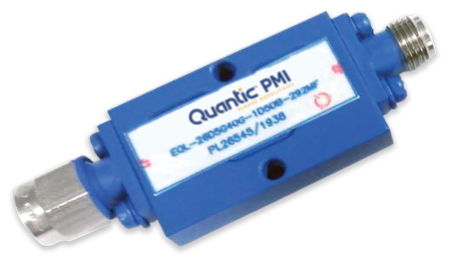

Passive Amplitude Equalizer

EQL-26D5G40G-1D5DB-292MF

Frequency Range: 26.5 to 40 GHz

Maximum Input Power: 0.5 W

VSWR: 1.65:1

Insertion Loss: 1.43 dB

Slope: 0.41 dB/GHz

Amplitude Accuracy: 0.4 dB

2.92mm Male/Female Connectors

Housing: 1.10" x 0.67" x 0.22"

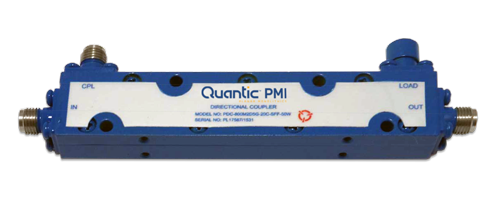

Directional Coupler

PDC-800M2D5G-20C-SFF-50W

Frequency Range: 0.8 to 2.5 GHz

Insertion Loss: 0.17 dB

VSWR: 1.07:1

Directivity: 47.8 dB

Coupling: 20 ± 0.6 dB

Frequency Sensitivity: 0.07 dB

Power Handling: 50 W

SMA Female Connectors

Housing: 3.35" x 0.67" x 0.43"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
