High Power, Broadband Limiters for

Mission-Critical Applications

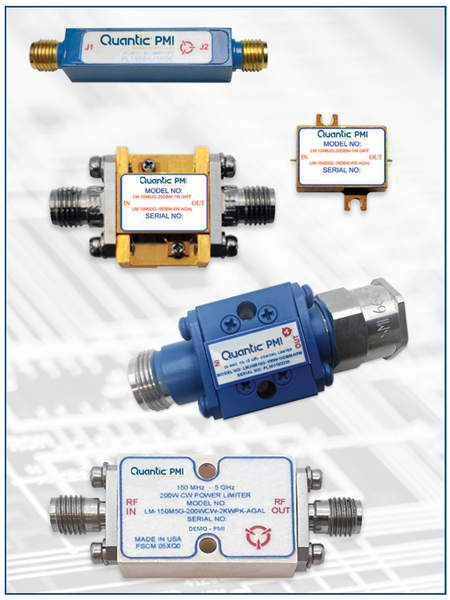

Quantic PMI offers a large portfolio of limiters covering the DC to 70 GHz frequency range that offer low loss, high speed, low leakage levels, high peak power handling, small size, and standardized packaging. Available options include surface mount or connectorized; form, fit and function designs (our specialty); choice of connectors; hermetic sealing, military or space screening and custom packaging. These Limiters are ideal for your military, commercial, and industrial applications! COTS availability!

Get More Info

Discover How Quantic PMI is Defining & Delivering the Future of Mission-Critical Electronics!



As a global leader within military, space and commercial markets Quantic PMI designs and manufacturers high-reliability components & integrated module assemblies up to 70 GHz with more than 4000 commercial off-the-shelf models. To find out more, download our newest presentation for a detailed overview of Quantic PMI’s technical capabilities and facilities as well as details into Quantic PMI products and services offered.

Get Download

Quantic PMI Exhibiting @ IMS MTT-S 2024


The IEEE MTT-S IMS2024 is fast approaching and is the must-attend event for the microwave and RF community­. Quantic PMI and other Quantic Electronics BUs will be exhibiting at the IMS, June 18th-21st in Washington, DC at the Walter E. Washington Convention Center!


Capitalize On Your IMS2024 Experience! Register Now!

Get More Info

Visit us @

Booth # 1251

Featured Products

Learn More

SDLVA

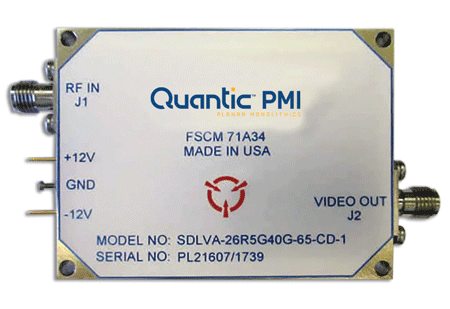

SDLVA-26R5G40G-65-CD-1

Frequency Range: 26.5 to 40.0 GHz

TSS: -67 dBm

Power Handling: +15 dBm

Dynamic Range: -63 to +2 dBm

Log Linearity: +1.71 dB

Log Slope: 24.2 mV/dB

Frequency Flatness: ±1.4 dB

Pulse Width Range: 30 ns to CW

Rise Time: 9.45 ns

Recovery Time: 43.6 ns

Delay Time: 9.2 ns

Input VSWR: 2.28:1

SMA Female Connectors

Housing: 2.37" x 1.80" x 0.42"

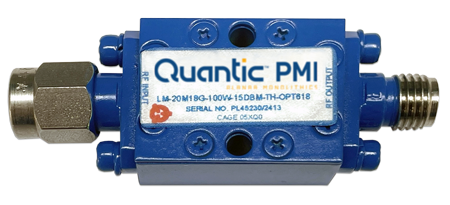

RF Limiter

LM-20M18G-100W-15DBM-TH-OPT618

Frequency Range: 6.0 to 18.0 GHz

Insertion Loss: 2.36 dB

VSWR: 1.92:1

Power Handling: 100 W CW

Limiting Threshold: +8 dBm

Leakage Power: 15 dBm

Recovery Time: 63.5 ns

SMA Male/Female Connectors

Housing: 0.625" x 0.80" x 0.40"

Learn More
Learn More

Digital Phase Shifter

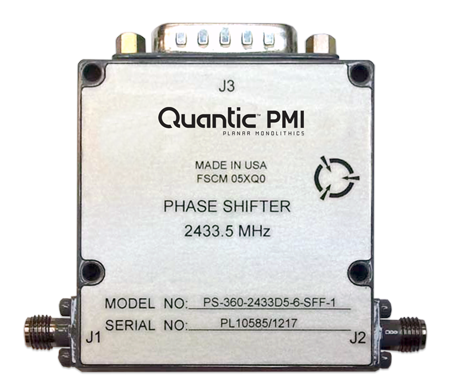

PS-360-2433D5-6-SFF-1

Frequency Range: 2.4325 to 2.4345 GHz

Insertion Loss: 4.79 dB

VSWR: 1.63:1

Phase Accuracy: ±8°

Switching Speed: 150 ns

RF Input Power: +33 dBm

SMA Female Connectors

Housing: 2.00" x 2.10" x 0.50"

Digital Phase Shifter

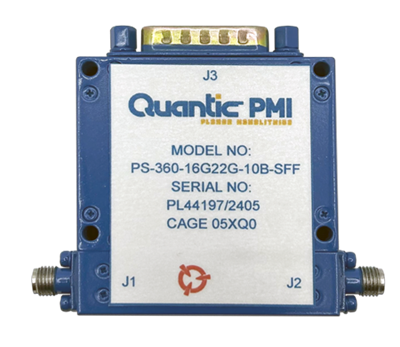

PS-360-16G22G-10B-SFF

Frequency Range: 16.0 to 22.0 GHz

Insertion Loss: 10.84 dB

VSWR: 1.95:1

Phase Accuracy: ±3°

Switching Speed: 500 ns

Operating Power: +10 dBm

Survival Power: +25 dBm

SMA Female Connectors

Housing: 2.00" x 2.10" x 0.50"

Learn More
Learn More

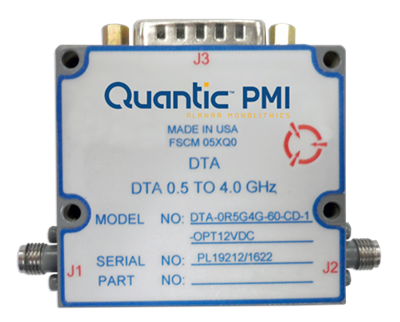

10-Bit Programmable Attenuator

DTA-0R5G4G-60-CD-1-OPT12VDC

Frequency Range: 0.5 to 4.0 GHz

Insertion Loss: 2.1 dB

VSWR: 1.8:1

Flatness: 0.18 dB

Accuracy of Attenuation: 0.75 dB

Switching Speed: 0.25 usec

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.88"

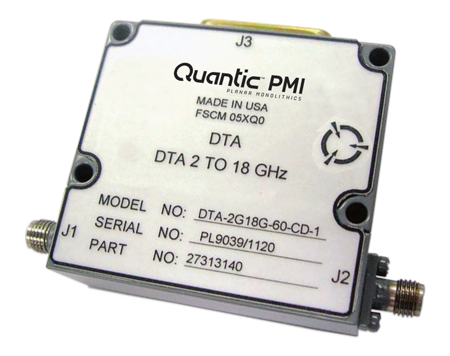

10-Bit Programmable Attenuator

DTA-2G18G-60-CD-1

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 3.9 dB

VSWR: 1.9:1

Flatness: ±1.19 dB

Accuracy of Attenuation: ±0.4 dB

Switching Speed: 1 usec

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.88"

Learn More
Learn More

Low Noise Amplifier

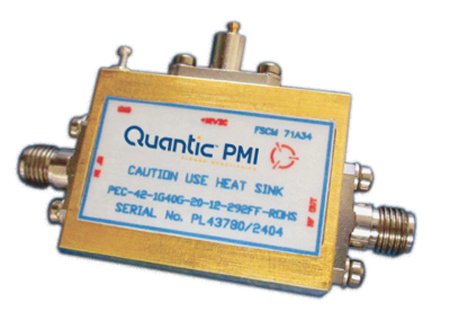

PEC-42-1G40G-20-12-292FF-ROHS

Frequency Range: 1.0 to 40.0 GHz

Gain: 42 dB

Gain Flatness: ±2.5 dB

Noise Figure: 4.5 dB

OP1dB: +19 dBm

Psat: +23 dBm

VSWR: 1.8:1

Input Power Handling: +17 dBm

2.92mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

Low Noise Amplifier

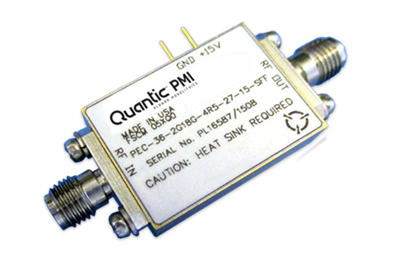

PEC-36-2G18G-4R5-27-15-SFF

Frequency Range: 2.0 to 18.0 GHz

Gain: 33.31 dB

Gain Flatness: ±1.5 dB

Noise Figure: 4.5 dB

OP1dB: 26.72 dBm

VSWR: 1.75:1

Input Power: +20 dBm CW

SMA Female Connectors

Housing: 1.00" x 0.75" x 0.25"

Learn More
Learn More

Low Noise Amplifier

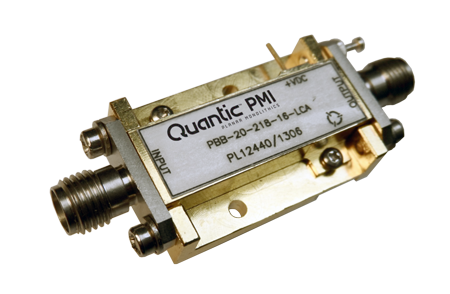

PBB-20-218-16-LCA

Frequency Range: 2.0 to 18.0 GHz

Gain: +31.6 dB

Gain Flatness: ±2.3 dB

Noise Figure: 3 dB

OP1dB: +21 dBm

VSWR: 1.7:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Low Noise Amplifier

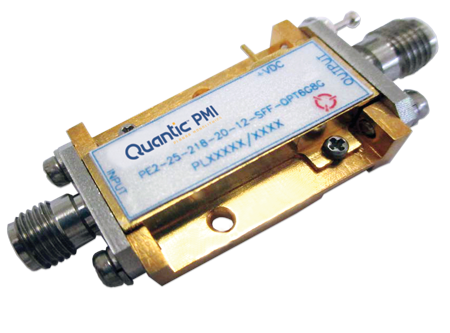

PE2-25-218-20-12-SFF-OPT6G8G

Frequency Range: 6.0 to 8.0 GHz

Gain: 27.5 dB

Gain Flatness: ±0.26 dB

Noise Figure: 3.2 dB

OP1dB: +23 dBm

VSWR: 1.15:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Learn More
Learn More

SP1T Absorptive Switch

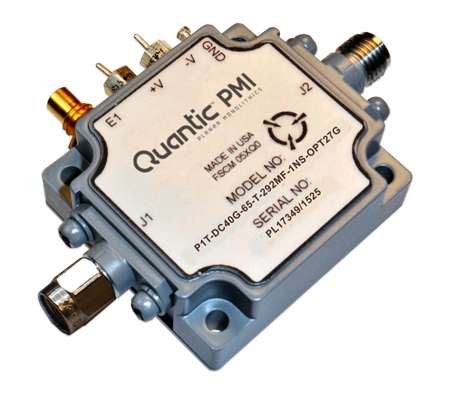

P1T-DC40G-65-T-292MF-1NS-OPT27G

Frequency Range: 0.05 to 27.0 GHz

Isolation: 60.5 dB

Insertion Loss: 4.52 dB

VSWR: 1.93:1

Input Power: 17 dBm

Switching Speed: 5 ns

Rise/Fall Time: 1 ns

2.92mm Male/Female Connectors

Housing: 1.3" x 1.2" x 0.5"

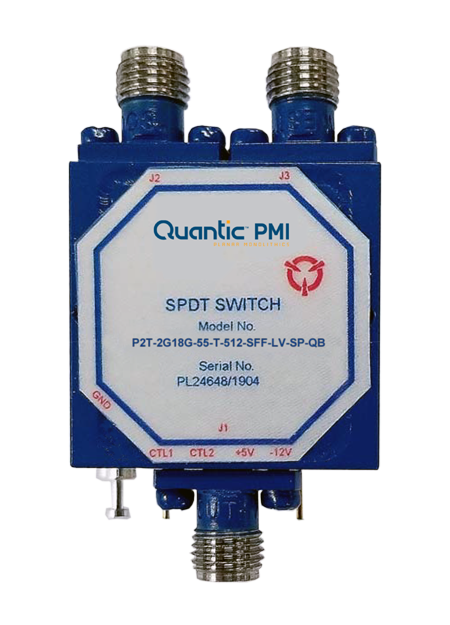

SP2T Absorptive Switch

P2T-2G18G-55-T-512-SFF-LV-SP-QB

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 2.7 dB

Isolation: 78.7 dB

VSWR: 1.9:1

Input Power: 23 dBm

Switching Speed: 50 ns

Switching Rate PRF: 5 MHz

Video Transients: 50 mV P-P, 300 MHz BW

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

Learn More
Learn More

SP6T Absorptive Switch

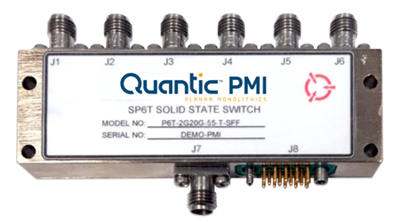

P6T-2G20G-55-T-SFF

Frequency Range: 2.0 to 20.0 GHz

Isolation: 65.2 dB

Insertion Loss: 4.38 dB

Frequency Flatness: 0.4 dB

VSWR: 1.99:1

Input Power: +20 dBm

RF Switching Speed: 30 ns

Video Leakage: 1.3 V

SMA Female Connectors

Housing: 3.10" x 1.00" x 0.40"

SP8T Absorptive Switch

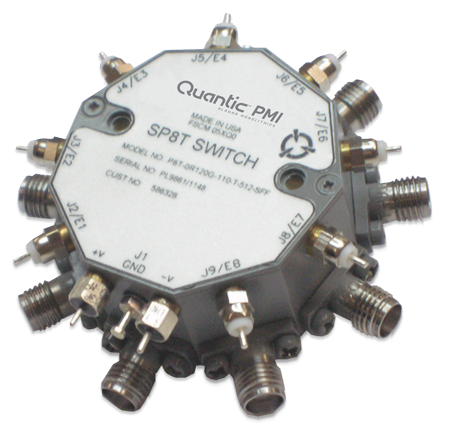

P8T-0R120G-110-T-512-SFF

Frequency Range: 0.1 to 20.0 GHz

Insertion Loss: 5.1 dB

Isolation: 111.3 dB

VSWR: 1.99:1

Rise/Fall Time: 300 ns

Input Power: 30 dBm

SMA Female Connectors

Housing: 0.7" x ø1.5"

Learn More
Learn More

Limiter

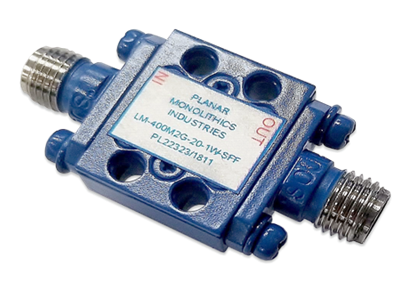

LM-400M2G-20-1W-SFF

Frequency Range: 0.4 to 2.0 GHz

Insertion Loss: 0.64 dB

Leakage Power: 24.62 mW

Spike Leakage: 0.1 erg

Recovery Time: 20 ns

VSWR: 1.6:1

RF Power Handling: 1 W CW

SMA Female Connectors

Housing: 0.532" x 0.650" x 0.220"

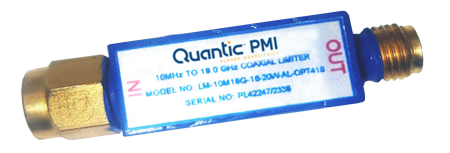

Limiter

LM-10M18G-16-20W-AL-OPT418

Frequency Range: 4.0 to 18.0 GHz

Insertion Loss: 1.52 dB

Leakage Power: +15 dBm

Recovery Time: 250 ns

VSWR: 1.87:1

RF Power Handling: 20 W

Limiting Threshold: +9 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

Learn More
Learn More

Image Reject Mixer

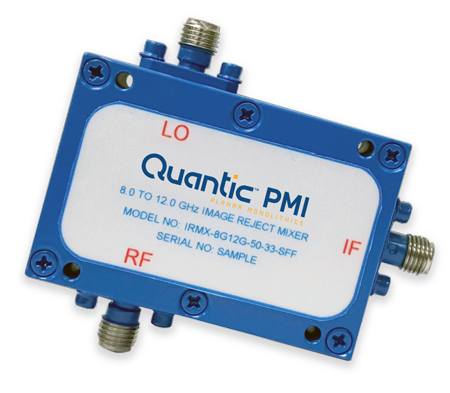

IRMX-8G12G-50-33-SFF

Frequency Range: 8.0 to 12.0 GHz

LO Power: +15 dBm

LO VSWR: 1.4:1

RF VSWR: 3.0:1

Conversion Loss: 7.5 dB

Noise Figure: 8 dB

Input IP3: +23 dBm

Input P1dB: +14 dBm

LO-RF Isolation: 50 dB

LO-IF Isolation: 55 dB

Image Rejection: 33 dB

LO/RF Input Power: +23 dBm

SMA Female Connectors

Housing: 2.00" x 1.35" x 0.58"

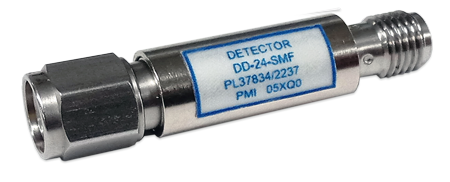

Diode Detector

DD-24-SMF

Frequency Range: 2.0 to 4.0 GHz

VSWR: 1.99:1

Frequency Flatness: ±0.4 dB

Rise Time: 11 ns

Voltage Sensitivity: 1100 mV/mW

Tangential Sensitivity: -50 dB

Output Capacitance: 47 pF

Input Power: +20 dBm

SMA Male/Female Connectors

Housing: 1.43" x 0.32" x 0.38"

Learn More
Learn More

Bandpass Filter

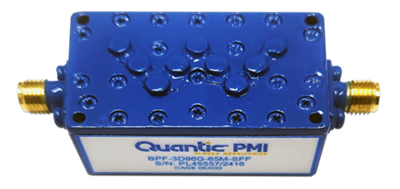

BPF-3D96G-65M-SFF

Passband Frequency: 3.9275 to 3.9925 GHz

Center Frequency: 3.96 GHz

Insertion Loss: 0.8 dB

VSWR: 1.1:1

Rejection: 45 dBc

Input Power: 20 W

SMA Female Connectors

Housing: 1.58" x 0.63" x 0.95"

Notch Filter

BR2G315R2G35R-SFF

Stop Band Frequency: 2.315 to 2.35 GHz

Stop Band Attenuation: 65.74 dB

Pass Band Insertion Loss (DC to 2.3 GHz): 1.38 dB

Pass Band Insertion Loss (2.365 to 6.0 GHz): 1.06 dB

VSWR: 1.52:1

SMA Female Connectors

Housing: 12.59" x 2.17" x 1.50"

Learn More
Learn More

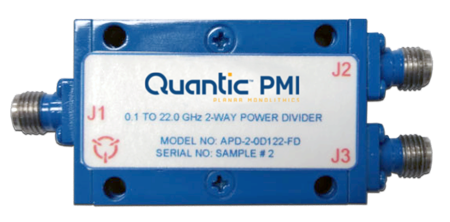

2-Way Power Divider

APD-2-0D122-FD

Frequency Range: 0.1 to 22.0 GHz

Insertion Loss: 1.69 dB

Isolation: 15 dB

VSWR: 2.05:1

Amplitude Balance: ±0.37 dB

Phase Balance: ±2.38°

Average Power: 25 W

2.92mm Female Connectors

Housing: 1.58" x 1.00" x 0.40"

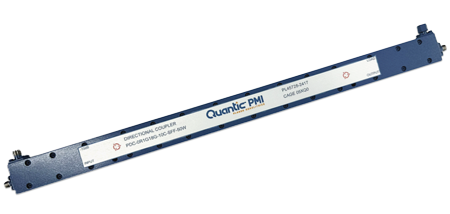

Directional Coupler

PDC-0R1G18G-10C-SFF-50W

Frequency Range: 0.1 to 18.0 GHz

Insertion Loss: 2.7 dB

Coupling Factor: 10.2 dB

Coupling Sensitivity: ±1 dB

Directivity: 10 dB

VSWR: 1.31:1

Power Handling: 30 W

SMA Female Connectors

Housing: 14.36" x 1.00" x 0.50"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.

In-Stock

Amplifiers - Solid State

Attenuators

Detector Log Video Amplifiers

Filters & Switched

Filter Banks

Frequency

Converters

Frequency Discriminators & IFM

Frequency

Sources

I/Q Vector

Modulators


Limiters

Phase Shifters &

Bi-Phase Modulators


Switches - Solid State



Detectors

Form, Fit, Function Products & Services



Gain & Loss Equalizers

Integrated Microwave Assemblies (IMA)

Miscellaneous

Products

Monopulse

Comparators

Power

Dividers/Combiners

Rack & Chassis

Mount Products

Receiver Front Ends

& Transceivers

Switch Filter Banks

Switch Matrices

SMT & QFN Products

Couplers (90°, 180°

& Directional)



USB Products
