Quantic PMI (Planar Monolithics) Products in Action

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

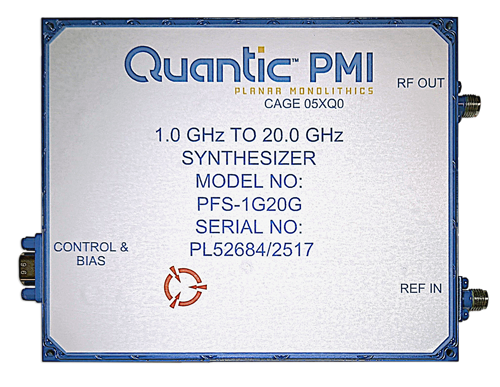

Frequency Synthesizer

PFS-1G20G

Frequency Range: 1 to 20 GHz

Frequency Step Size: 0.2 Hz

Frequency Switch Time: 42.45 ms

Output Power: 11.3 dBm

Frequency Accuracy: ±2 x 10^-7

Frequency Stability: ±2 x 10^-7

Spurious: -70.7 dBc

Harmonics: -12.18 dBc

SMA Female Connectors

Housing: 4.53" x 3.74" x 0.57"

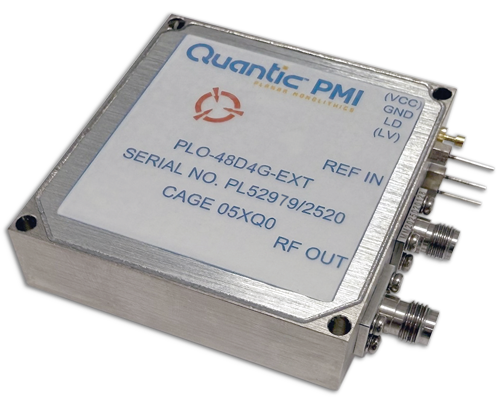

Phase Locked Dielectric Resonator Oscillator (PLDRO)

PLO-48D4G-EXT

Output Frequency: 48.4 GHz

Load VSWR: 1.5:1

Output Power: 15.1 dBm

Spurious: -60 dBc

Phase Noise: -102 dBc/Hz @ 100 kHz

Frequency Stability: Same as Reference

Harmonics: -20 dBc

External Reference: 100 MHz (Sine Wave)

2.4 mm/SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

Learn More

Phase Locked Dielectric Resonator Oscillator (PLDRO)

PLO-48D8G-EXT

Output Frequency: 48.8 GHz

Load VSWR: 1.5:1

Output Power: 15.1 dBm

Spurious: -60 dBc

Phase Noise: -102 dBc/Hz @ 100 kHz

Frequency Stability: Same as Reference

Harmonics: -20 dBc

External Reference: 100 MHz (Sine Wave)

2.4 mm/SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

Log Video Amplifier

DLVA-70M-80-15V

Frequency Range: 0.05 to 0.12 GHz

Output Voltage: 0.2 to 2 V

Log Slope: 25 mV/dB

Log Linearity: ±1.23 dB

Bandwidth: 0.05 to 0.09 GHz

Rise Time: 23 ns

Limited RF Output: 0 dBm

SMA Female Connectors

Housing: 3.51" x 1.50" x 0.47"

Learn More

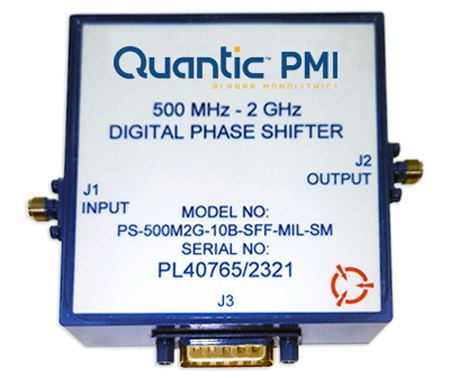

Digital Phase Shifter

PS-500M2G-10B-SFF-MIL-SM

Frequency Range: 0.5 to 2 GHz

Control: 10 Bit TTL

Insertion Loss: 8 dB

Phase Shift: 360°

Amplitude Error: ±0.07 dB

Phase Shift Error: 0.6°

Switching Speed: 500 ns

Spurious: -60 dBc

SMA Female Connectors

Housing: 3.25" x 3.25" x 0.84"

Low Noise Amplifier

PEC-30-10M20-SFF

Frequency Range: 0.01 to 20 GHz

Gain: 28.02 dB

Gain Flatness: ±1.12 dB

Noise Figure: 3 dB

OP1dB: 15 dBm

VSWR: 2.0:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.32"

Learn More

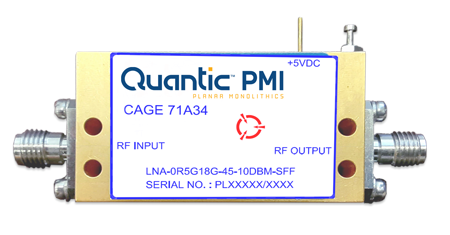

Low Noise Amplifier

LNA-0R518G-45-10DBM-SFF

Frequency Range: 0.5 to 18 GHz

Gain: 45 dB

Gain Flatness: ±0.86 dB

Noise Figure: 3.25 dB

OP1dB: 14.2 dBm

VSWR: 1.98:1

SMA Female Connectors

Housing: 1.668" x 0.901" x 0.360"

COTS Availability

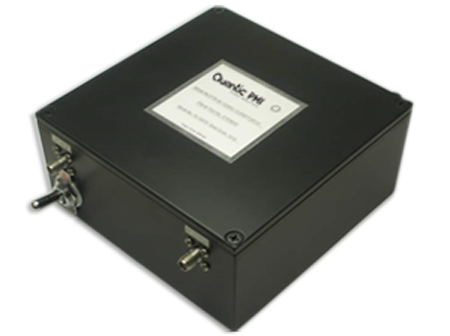

Portable Amplifier

PTB-42-1G40G-12-292FF-DC12

Frequency Range: 1 to 40 GHz

Gain: 40 dB

Gain Flatness: ±2.5 dB

Noise Figure: 4.8 dB

OP1dB: 22 dBm

VSWR: 2.4:1

Maximum RF Input: 15 dBm

SMA Female Connectors

Housing: 4.92" x 4.92" x 2.10"

COTS Availability

Learn More

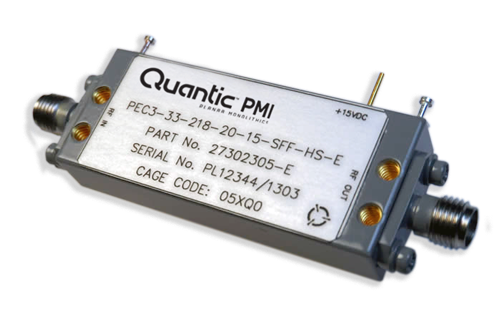

Low Noise Amplifier

PEC3-33-218-20-15-SFF-HS-E

Frequency Range: 2 to 8 GHz

Gain: 41.4 dB

Gain Flatness: ±1.71 dB

Noise Figure: 4 dB

OP1dB: 20.82 dBm

OIP3: 30 dBm

Input Power Handling: 17 dBm

VSWR: 1.81:1

SMA Female Connectors

Housing: 1.92" x 0.78" x 0.36"

COTS Availability

SP1T Absorptive Switch

P1T-DC40G-65-T-292FF-1NS-OPT18G

Frequency Range: DC to 18 GHz

Isolation: 60.1 dB

Insertion Loss: 3.94 dB

VSWR: 1.89:1

Operating Power CW: 17 dBm

Switching Speed: 6 ns

Rise/Fall Time: 1 ns

SMA Female Connectors

Housing: 1.3" x 1.2" x 0.5"

Learn More

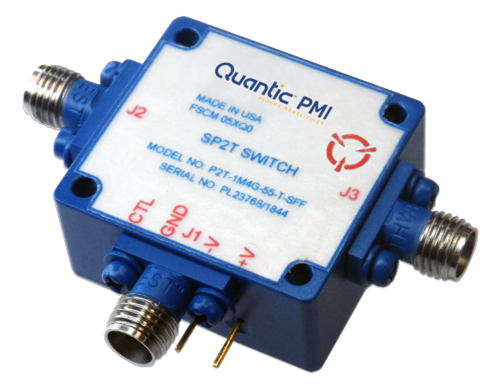

SP2T Absorptive Switch

P2T-1M4G-55-T-SFF

Frequency Range: 1 MHz to 4 GHz

Insertion Loss: 3.57 dB

Isolation: 78 dB

VSWR: 1.76:1

Delay On/Off: 15 ns

Rise/Fall Time: 5 ns

Survival Input Power: 20 dBm

Input P1dB: 17.8 dBm

SMA Female Connectors

Housing: 1.1" x 1.0" x 0.5"

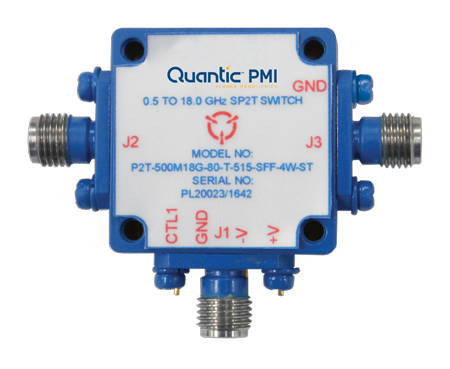

SP2T Absorptive Switch

P2T-500M18G-80-T-515-SFF-4W-ST

Frequency Range: 0.5 to 18 GHz

Isolation: 72.7 dB

Insertion Loss: 3.42 dB

VSWR: 1.9:1

Operating Power: 4 W

Operating Power Peak: 20 W

Switching Speed: 60 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

COTS Availability

Learn More

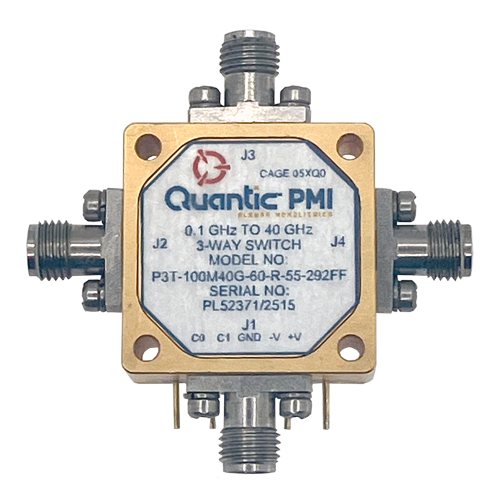

SP3T Reflective Switch

P3T-100M40G-60-R-55-292FF

Frequency Range: 0.1 to 40 GHz

Isolation: 56.7 dB

Insertion Loss: 5.1 dB

VSWR: 2.4:1

RF Switching Speed: 15 ns

2.92mm Female Connectors

Housing: 1.0" x 1.0" x 0.5"

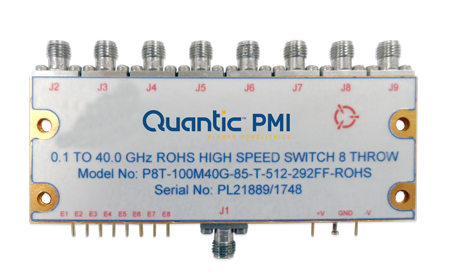

SP8T Absorptive Switch

P8T-100M40G-85-T-512-292FF-ROHS

Frequency Range: 0.1 to 40 GHz

Insertion Loss: 5 dB

Isolation: 90 dB

VSWR: 2.45:1

Operating Input Power: 20 dBm

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 4.0" x 1.5" x 0.4"

RoHs Compliant

Learn More

SP9T Reflective Switch

P9T-500M18G-60-R-SFF

Frequency Range: 0.5 to 18 GHz

Isolation: 85.3 dB

Insertion Loss: 4.96 dB

VSWR: 1.94:1

Operating Power: 25 dBm

Switching Speed: 100 ns

SMA Female Connectors

Housing: 4.5" x 1.5" x 0.4"

Limiter

LM-0R1G4G-100W-15DBM-SMF

Frequency Range: 0.1 to 4 GHz

Insertion Loss: 0.76 dB

VSWR: 1.49:1

Leakage Power: 9.74 dBm

Input Power: 50 dBm

Peak Input Power: 60 dBm

Recovery Time: 100 ns

SMA Male/Female Connectors

Housing: 0.800" x 0.625" x 0.400"

Learn More

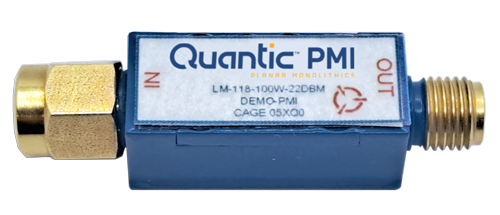

Limiter

LM-118-100W-22DBM

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.63 dB

VSWR: 1.92:1

Leakage: 18.92 dBm

Recovery Time: 100 ns

RF Power Handling: 100 W CW, 1 KW Peak

Limiting Threshold (P1dB): 14 dBm

SMA Male/Female Connectors

Housing: 0.90" x 0.38" x 0.38"

COTS Availability

Limiter

LM-1G18G-15-3W-500WP-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.12 dB

Recovery Time: 100 ns

VSWR: 1.87:1

RF Power Handling: 3 W CW, 500 W Peak

Limiting Threshold: 17 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

Learn More

Bandpass Filter

8BP1750-500-3A-SFF

Passband Frequency: 1.5 to 2 GHz

Bandwidth (-3 dB): 0.5 GHz

VSWR: 1.36:1

Insertion Loss @ 1.75 GHz: 0.89 dB

Rejection @ 0.95 GHz: 63.4 dBc

Rejection @ 2.3 GHz: 86.6 dBc

SMA Female Connectors

Housing: 1.50" x 0.31" x 0.31"

Bandpass Filter

BPF-35D-4G-292FF

Frequency Range: 33 to 37 GHz

VSWR: 1.57:1

Insertion Loss: 1.08 dB

Rejection @ DC to 31 GHz: 73.2 dB

Rejection @ 39 to 43 GHz: 62.3 dB

Input Power: 5 W

2.92mm Female Connectors

Housing: 1.97" x 0.53" x 0.31"

Learn More

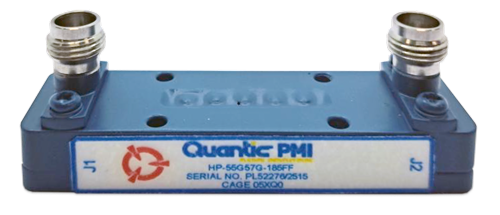

High Pass Filter

HP-55G57G-185FF

Passband Frequency Range: 55 to 57 GHz

3 dB Cut Off Frequency: 54.5 GHz

VSWR: 1.27:1

Passband Insertion Loss: 0.87 dB

Rejection @ 34 to 45 GHz: 74.96 dB

Operating Input Power: 2 W

1.85mm Female Connectors

Housing: 1.97" x 0.33" x 0.55"

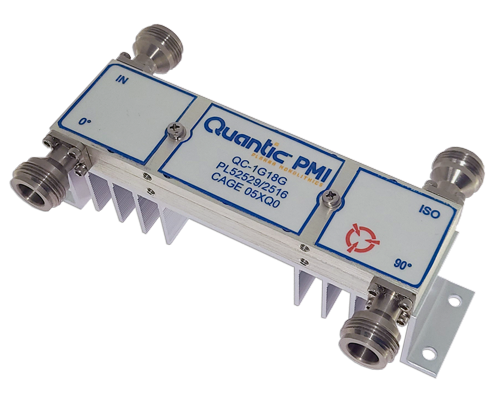

Quadrature Hybrid Coupler

QC-1G18G

Frequency Range: 1 to 18 GHz

Isolation: 19.6 dB

VSWR: 1.31:1

Coupling: 3 dB

Insertion Loss: 1.63 dB

Power: 300 W CW, 3000 W Peak

Amplitude Balance: ±0.42 dB

Phase Balance: ±2.31°

N-Type Female Connectors

Housing: 5.51" x 1.60" x 1.25"

Learn More

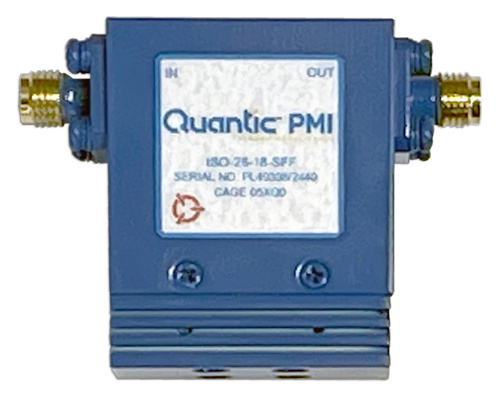

Isolator

ISO-26-18-SFF

Frequency Range: 2 to 6 GHz

Insertion Loss: 0.64 dB

VSWR: 1.45:1

Isolation: 15.45 dB

Forward/Reverse Power: 100 W

SMA Female Connectors

Housing: 1.2" x 1.5" x 0.6"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
