Featured Products

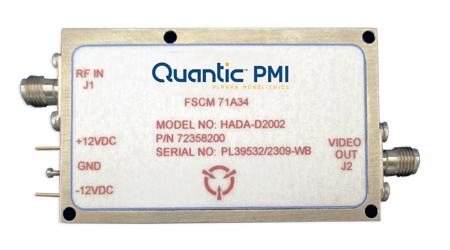

Detector Log Video Amplifier (DLVA)

HADA-D2002

Frequency Range: 2.0 to 18.0 GHz

TSS: -40.5 dBm

Frequency Flatness: ±0.916 dB

Logging Accuracy: 0.66 dB

Log Linearity: 0.34 dB

Maximum Input Power: +23 dBm

Rise Time: 27.8 ns

Fall Time: 252.8 ns

Input VSWR: 1.58:1

SMA Female Connectors

Housing: 2.50" x 1.50" x 0.44"

Successive Detection Log Video Amplifier (SDLVA)

SDLVA-18G40G-65-CD-292FF

Frequency Range: 18.0 to 40.0 GHz

TSS: -68 dBm

Input Power Handling: +10 dBm

Video Log Range: -63 to +2 dBm

Video Log Linearity: +1.47 dB

Video Log Slope: 24.5 mV/dB

Video Frequency Flatness: 1.9 dB

Video Rise Time: 9 ns

Recovery Time: 35 ns

Input VSWR: 2.08:1

2.92 mm Female Connectors

Housing: 2.37" x 1.80" x 0.42"

Integrated Microwave Assembly

PIMA-26-4C-PD2-BPF-L

Frequency Range: 2.0 to 6.0 GHz

Insertion Loss: 3.2 dB

Isolation: 15 dB

VSWR: 1.98:1

Amplitude Balance: ±0.09 dB

Phase Balance: ±0.3°

Filter Rejection: 57.05 dB

Passband Flatness: ±0.53 dB

Channel to Channel Isolation: 70.13 dB

SMA Female Connectors

Housing: 3.25" x 4.00" x 0.50"

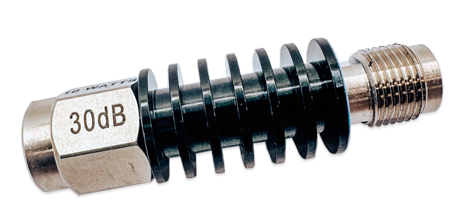

Fixed Attenuator

PFA-DC18-30DB-TNCMF

Frequency Range: DC to 18.0 GHz

Attenuation: 30.29 dB

VSWR: 1.35:1

Power: 10 W

Deviation: ±0.36 dB

TNC Male/Female Connectors

Housing: ø0.65" x 2.02"

10-Bit Programmable Attenuator

DTA-0R4G18G-60-CD-1

Frequency Range: 0.4 to 18.0 GHz

Insertion Loss: 3.9 dB

VSWR: 1.7:1

Flatness: ±0.97 dB

Accuracy of Attenuation: ±0.38 dB

Switching Speed: 1 us

SMA Female Connectors

Housing: 2.00" x 1.80" x 0.50"

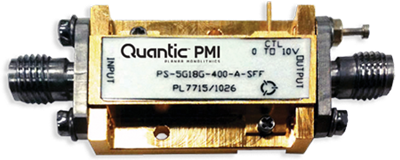

Analog Phase Shifter

PS-5G18G-400-A-SFF

Frequency Range: 5.0 to 18.0 GHz

Phase Shift Range: 234°

Insertion Loss: 5 dB

Return Loss: 7.1 dB

Control Voltage Range: 0 - 10 VDC

Modulation Bandwidth: 50 MHz

Phase Voltage Sensitivity: 40°/V

Insertion Phase Temp Sensitivity: 0.5°/V

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

Vector Phase Shifter

PS-2G18G-360-12D-TS

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 16.67 dB

VSWR: 2.02:1

Amplitude Variation vs Phase: ±1.48 dB

Phase vs Frequency: ±10.73°

Switching Speed: 410 ns

SMA Female Connectors

Housing: 4.25" x 3.50" x 1.00"

Low Noise Amplifier

PE2-30-20G20R6G-3R0-10-12-SFF

Frequency Range: 20.0 to 26.5 GHz

Gain: +30.5 dB

Gain Flatness: ±0.86 dB

Noise Figure: 2.5 dB

OP1dB: +10.7 dBm

VSWR: 1.7:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

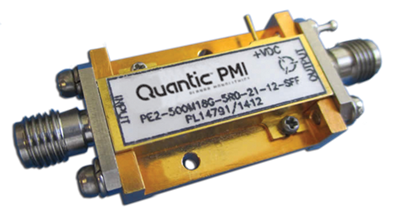

Low Noise Amplifier

PE2-500M18G-5R0-21-12-SFF

Frequency Range: 0.5 to 18.0 GHz

Gain: 28.8 dB

Gain Flatness: ±1.4 dB

Noise Figure: 3.2 dB

OP1dB: +20.2 dB

Maximum Input Power: 18 dBm

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

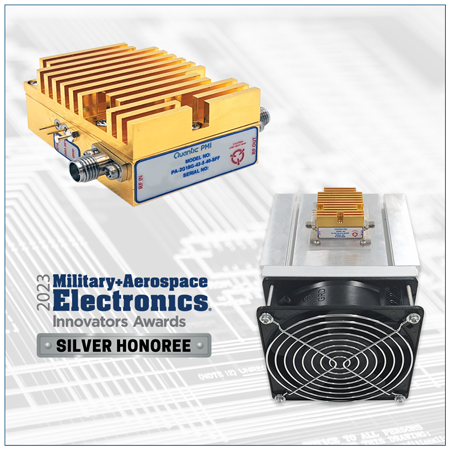

High Power Amplifier

PA-2G18G-43-5-40-SFF-HS

Frequency Range: 2.0 to 18.0 GHz

Gain: 43.32 dB

VSWR: 2.0:1

Noise Figure: 3.49 dB

PSAT: 40 dBm

Input Power: 20 dBm

SMA Female Connectors

Housing: 4.92" x 5.32" x 6.70"

Single Pole, Single Throw, Absorptive Switch

P1T-DC40G-65-T-292FF-1NS-OPT18G

Frequency Range: DC to 18.0 GHz

Insertion Loss: 4.04 dB

VSWR: 1.88:1

Isolation: 61 dB

Switching Speed: 6 ns

Rise/Fall Time: 1 ns

Input Power: +17 dBm

SMA Female Connectors

Housing: 1.30" x 1.20" x 0.50"

Single Pole, Single Throw, Absorptive Switch

P1T-DC40G-65-T-292FF-1NS-OPT18G-50OHM

Frequency Range: DC to 18.0 GHz

Isolation: 60 dB

Insertion Loss: 3.65 dB

VSWR: 1.76:1

Input Power: +17 dBm

Switching Speed: 6 ns

Rise/Fall Time: 1 ns

SMA Female Connectors

Housing: 1.30" x 1.20" x 0.50"

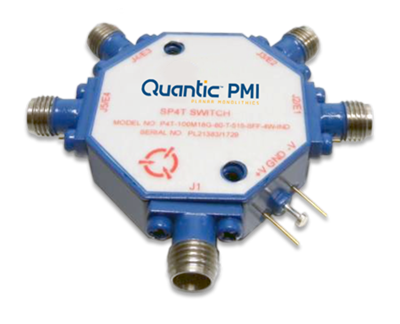

Single Pole, Four Throw, Absorptive Switch

P4T-100M18G-80-T-515-SFF-4W-IND

Frequency Range: 0.1 to 18.0 GHz

Insertion Loss: 4.49 dB

Isolation: 82 dB

VSWR: 1.86:1

Switching Speed: 200 ns

Operating Power: +36 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.40"

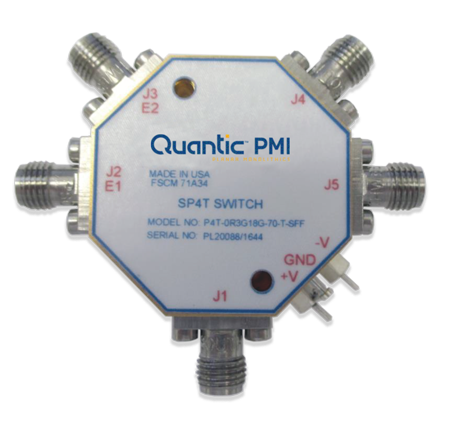

Single Pole, Four Throw, Absorptive Switch

P4T-0R3G18G-70-T-SFF

Frequency Range: 0.3 to 18.0 GHz

Insertion Loss: 3.27 dB

Isolation: 74.1 dB

VSWR: 1.85:1

Rise/Fall Time: 15 ns

Delay On/Off: 100 ns

Survival Power: 1 W

2.92mm Female Connectors

Housing: 1.25" x 1.25" x 0.70"

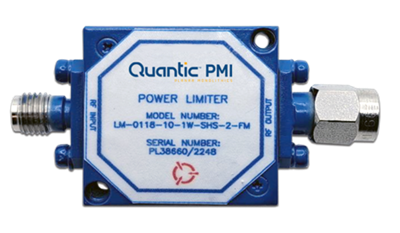

High Power Limiter

LM-0118-10-1W-SHS-2-FM

Frequency Range: 0.1 to 18.0 GHz

Insertion Loss: 1.68 dB

VSWR: 1.5:1

Leakage: +10 dBm

Input Power: 5 W

Peak Power: 100 W

Limiting Threshold: +10 dBm

SMA Female/Male Connectors

Housing: 1.00" x 1.00" x 0.40"

Limiter

LM-2G18G-RAD-3W-19DBM-SMF

Frequency Range: 2.0 to 18.0 GHz

Insertion Loss: 2.16 dB

VSWR: 1.85:1

Leakage Power: +14.66 dBm

Power Handling: 3 W

Recovery Time: 1000 ns

2.92mm Male/Female Connectors

Housing: R0.188" x 1.314"

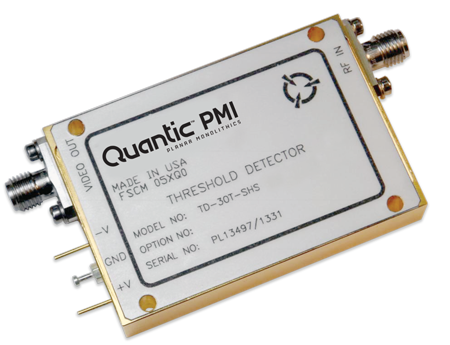

Threshold Detector

TD-30T-SHS-218

Frequency Range: 2.0 to 18.0 GHz

VSWR: 2.8:1

Minimum Signal Level for Logic 1: 20.5 dBm

Threshold Variation Over Frequency: ±0.25 dB

Minimum Signal Level for Logic 0: -20.8 dBm

Propagation Delay: 15 ns

SMA Female Connectors

Housing: 2.20" x 1.50" x 0.40"

Combline Band Pass Filter

8CL1800-100-CD-SFF

Frequency Range: 1.75 to 1.85 GHz

3 dB Bandwidth: 0.119 GHz

VSWR: 1.36:1

Insertion Loss: 1.43 dB

Rejection: 72.8 dBc

SMA Female Connectors

Housing: 1.30" x 1.20" x 0.50"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
