Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

Latest News & Events

November 2025

Quantic PMI Achieves ISO 9001:2015 & AS9100D Certification for Aerospace Quality Management System...



Quantic PMI is excited to share that we have earned the ISO 9001:2015 and AS9100D certifications for its quality management system for its Frederick, Maryland and El Dorado Hills, California facilities. This certification reinforces Quantic PMI’s ability to meet stringent customer requirements and deliver consistent, RF & Microwave Components & Integrated modules & subsystems.

Visit us @

Booth # M-13

Visit us @

Booth # 916

Featured Products

Low Noise Amplifier

PE2-15-5R06R0-3R5-21-12-SFF

Frequency Range: 5 to 6 GHz

Gain: 17.4 dB

Gain Flatness: ±0.06 dB

Noise Figure: 2.27 dB

OP1dB: 22.1 dBm

VSWR: 1.35:1

Input Power: 23 dBm

SMA Female Connectors

Housing: 0.53" x 0.70" x 0.26"

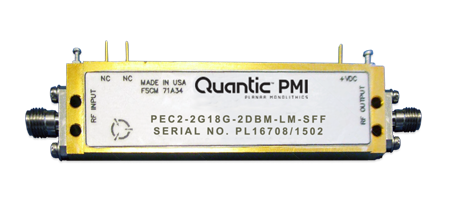

Limiting Amplifier

PEC2-2G18G-21DBM-LM-SFF

Frequency Range:: 2 to 18 GHz

Input Power: -45 to 10 dBm CW

OP1dB: 16 dBm Typ

Saturated Output Power: 23.4 to 27.07 dBm

VSWR IN/OUT: 1.49:1 / 1.9:1

3rd Order Intercept Point:35 dBm

2nd Harmonic Rejection: 12.74 dBc

3rd Harmonic Rejection: 10.10 dBc

Noise Figure: 2.27 dB

SMA Female Connectors

Housing: 2.98" x 0.78" x 0.36"

COTS Availability

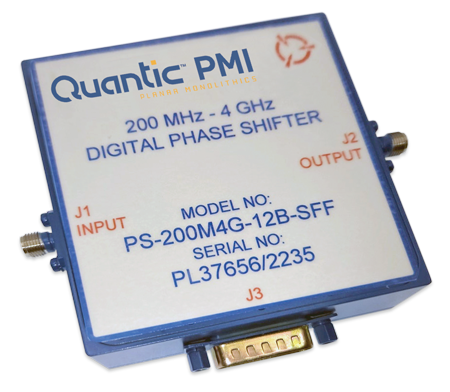

Digital Phase Shifter

PS-200M4G-12B-SFF

Frequency Range: 0.2 to 4 GHz

Phase Shift Range:360°

Phase Accuracy: ±0.5°

Insertion Loss: 10.5 dB

Switching Speed: 500 ns Max

Input Power: 5 dBm Max

Control: 12 Bit TTL

Noise Figure: 5 dB

SMA Female Connectors

Housing: 3.25" x 3.25" x 0.84"

Digital Phase Shifter

PS-500M2G-10B-SFF-MIL-SM

Frequency Range: 0.5 to 2 GHz

Control: 10-Bit TTL

Insertion Loss: 7.9 dB

Amplitude Error: ±0.06 dB

Phase Shift Error: 0.4°

Switching Speed: 500 ns

Spurious: -60 dBc

SMA Female Connectors

Housing: 3.25" x 3.25" x 0.84"

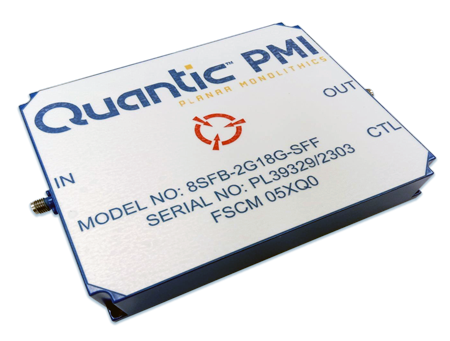

8-Channel Switch Filter Bank

8SFB-2G18G-SFF

Frequency Range: 2 to 18 GHz

No. of Channels: 8 (2 GHz BW per path)

Insertion Loss: 10 dB Max

Switching Speed: 200 ns Max

Passband Ripple: ±0.5 dB Typ, ±1 dB Max

Input Power: 15 dBm Max

Impedance: 50 Ohm

VSWR: 2.0:1

SMA Female Connectors

Housing: 5.0" x 4.13" x 1.0"

Analog Attenuator

PVA-500M18G-60-SFF

Frequency Range:: 0.5 to 18 GHz

Attenuation Range: 0 to 60 dB

Attenuation Control: 10 dB / V

Insertion Loss: 3.8 dB

Attenuation Flatness: ±2.24 dB

Attenuation Accuracy: ±2.5 dB @ 60 dB

VSWR: 2.0:1

Switching Time: 3 µs Max

Power Handling: 20 dBm

SMA Female Connectors

Housing: 2.0" x 1.81" x 0.5"

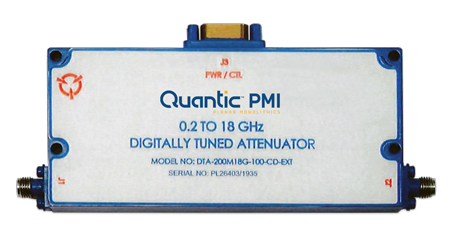

Digital Attenuator

DTA-200M18G-100-CD-EXT

Frequency Range: 0.2 to 0.18 GHz

Control Bits: 8-Bit TTL

Insertion Loss: 11.8 dB
VSWR: 2.2:1

Flatness: ±0.98 dB

Attenuation Accuracy: ±0.92

Switching Speed On/Off: 0.704/0.140 µs

SMA Female Connectors

Housing: 4.0" x 1.8" x 0.5"

SP1T Reflective Switch

P1T-500M18G-80-R-SFF-SW21841A-515

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 2.1 dB

Isolation: 89 dB

VSWR: 1.35:1

Input Power: 2 W Average, 10 W Peak

Rise/Fall Time: 2 ns

Delay On/Off: 20 ns

SMA Female Connectors

Housing: 1.97" x 0.79" x 0.53"

SP2T High Power Switch

PDT-5G8G-50-515-SFF

Frequency Range:: 5 to 8 GHz

Insertion Loss: 1.69 dB

Isolation: 51.32 dB

Input Power: 38 dBm

VSWR: 1.21:1

Switching Speed: 200 ns

IM3: -55 dBc

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.30"

SP3T Absorptive Switch

P3T-8G12G-70-T-SFF

Frequency Range: 8 to 12 GHz

Insertion Loss: 2.46 dB

Isolation: 72 dB

VSWR:1.41:1

Switching Speed: 100 ns

Operating Input Power: 20 dBm

Survival Input Power: 30 dBm

SMA Female Connectors

Housing: 1.5" x 1.5" x 0.4"

COTS Availability!

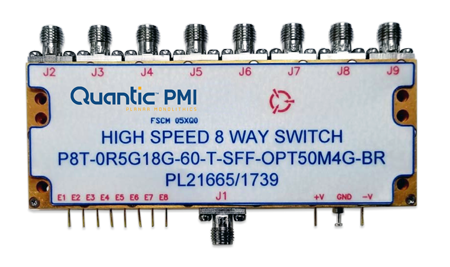

SP8T Absorptive Switch

P8T-0R5G18G-60-T-SFF-BR

Frequency Range:: 0.02 to 15 GHz

Insertion Loss:4.71 dB

Isolation:86 dB

Input Power: 30 dBm Operating

VSWR: 1.92:1

Switching Speed: 100 ns

SMA Female Connectors

Housing: 4.0" x 1.5" x 0.4"

Isolator

ISO-26-18-SMF

Frequency Range:: 2 to 6 GHz

Insertion Loss: 0.61 dB

Isolation: 14 dB

VSWR: 1.44:1

Forward Power: 100 W

Reverse Power: 100 W

SMA Male / Female Connectors

Housing: 1.2" x 1.5" x 0.6"

2-Way Power Divider

APD-2-812D4-30W-SFF

Frequency Range: 8 to 12.4 GHz

Isolation: 25.44 dB

Insertion Loss: 0.34 dB

VSWR IN/OUT: 1.30:1 / 1.27:1

Power Handling: 30 W (FW), 1 W (RV)

SMA Female Connectors

Housing: 1.0" x 0.8" x 0.38"

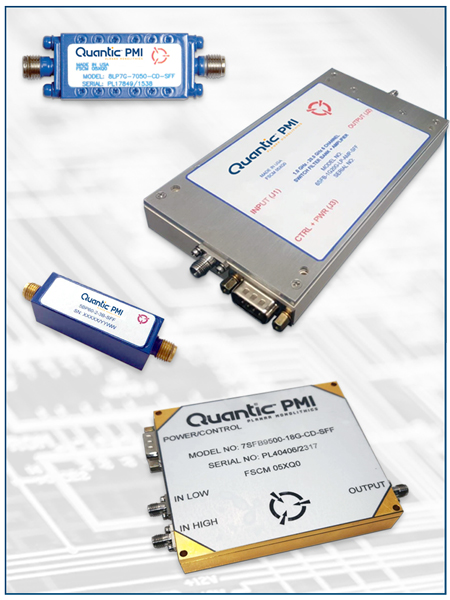

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.

In-Stock

Amplifiers - Solid State

Attenuators

Bias Tees

Couplers (90°, 180° & Directional & Pick-Off Tees)

Detectors

Detector Log Video Amplifiers

Filters & Switched

Filter Banks

Form, Fit, Function Products & Services

Frequency

Converters

Frequency Discriminators & IFM

Frequency

Sources

Gain & Loss

Equalizers

Integrated Microwave Assemblies (IMA)

I/Q Vector

Modulators

Isolators &

Circulators

Limiters

Mixers

Monopulse

Comparators

Prescalers &

Multiplexers

Phase Shifters &

Bi-Phase Modulators

Power

Dividers/Combiners

Rack & Chassis

Mount Products

Receiver Front Ends

& Transceivers

SMT & QFN Products

Switches - Solid State

 Switch Filter Banks

Switch Matrices

 USB Products
