Quantic PMI (Planar Monolithics) Products in Action

Proven, Mission-Critical Components

& Integrated Assemblies up to 70 GHz

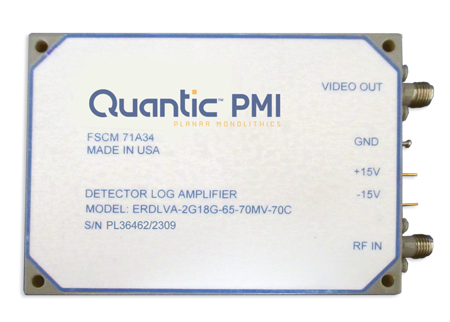

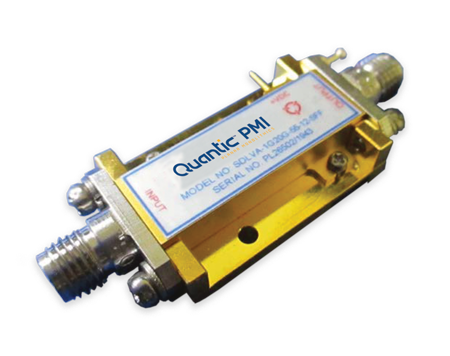

Log Video Amplifier

ERDLVA-2G18G-65-70MV-70C

Frequency Range: 2 to 18 GHz

VSWR: 1.77:1

Input Power: 1 W

Video Out TSS: -72.3 dBm

Video Out Dynamic Range: -65 to 0 dBm

Video Out Log Slope: 70 ± 3 mV/dB

Video Out Log Linearity: 0.61 dB

Video Out Log Accuracy: 1.24 dB

Video Out Rise/Fall Time: 24.8 ns/ 204.7 ns

SMA Female Connectors

Housing: 3.5" x 2.5 x 0.5"

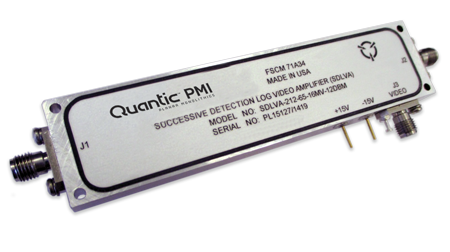

Log Video Amplifier

DLVA-8G10G-75-50-SFF

Frequency Range: 8 to 10 GHz

Flatness: ±1.2 dB

TSS: -78 dBm

Log Dynamic Range: -75 to 0 dBm

Log Slope: 50 mV/dB ± 3.2 mV/dB

Log Linearity: ±1.36 dB

DC Offset: 50 mV ± 50 mV

Rise/Fall Time: 19.3 ns 100 ns

Recovery Time: 100 ns

SMA Female Connectors

Housing: 2.0" x 1.5" x 0.4"

Learn More

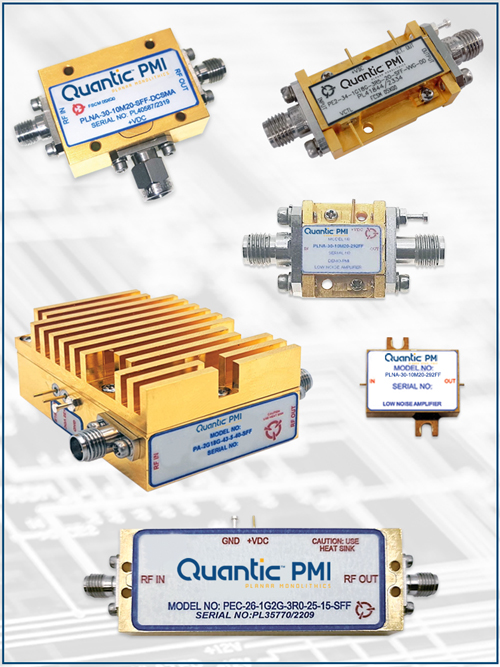

Low Noise Amplifier

PEC-30-10M20-SFF-ROHS

Frequency Range: 0.01 to 20 GHz

Gain: 28 dB

Gain Flatness: ±1.17 dB

Noise Figure: 3 dB

OP1dB: 15 dBm

Psat: 16.6 dBm

OIP3: 25 dBm

VSWR: 1.9:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.32"

RoHS compliant

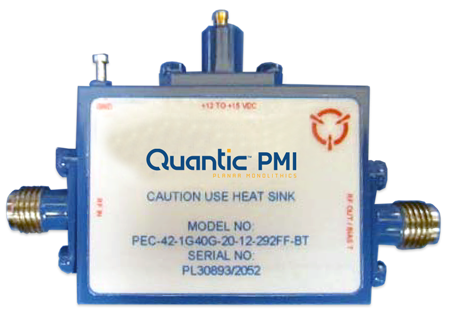

Low Noise Amplifier

PEC-42-1G40G-20-12-292FF-BT

Frequency Range: 1 to 40 GHz

Gain: 40 dB

Gain Flatness: ±2.5 dB

Noise Figure: 5.5 dB

Pout @ 1 dB Compression: 17 dBm

Psat: 20 dBm

VSWR: 2.0:1

Input Power Handling: 17 dBm

2.92mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

Learn More

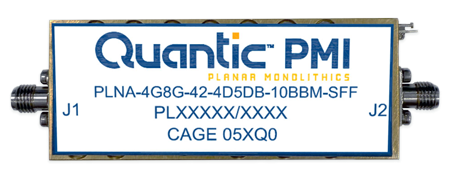

Low Noise Amplifier

PLNA-4G8G-42-4D5DB-10BBM-SFF

Frequency Range: 4 to 8 GHz

Gain: 45 dB

Gain Flatness: ±1.16 dB

Noise Figure: 2.9 dB

Saturated Output Power: 10.5 dBc

Harmonics: -17.5 dBc

VSWR: 1.62:1

SMA Female Connectors

Housing: 2.75" x 1.15" x 0.66"

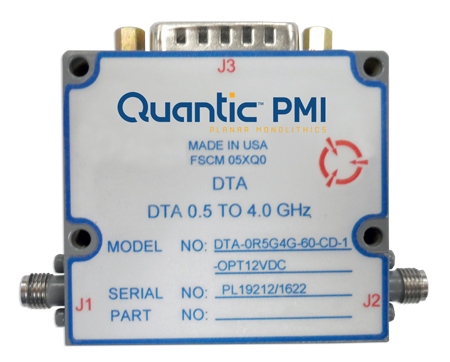

Digital Attenuator

DTA-0R5G4G-60-CD-1-OPT12VDC

Frequency Range: 0.5 to 4 GHz

Insertion Loss: 1.9 dB

VSWR: 1.3:1

Flatness: ±0.16 dB

Accuracy of Attenuation: ±0.6 dB

Switching Speed: 1 µs

SMA Female Connectors

Housing: 2.00" x 1.81" x 0.88"

Learn More

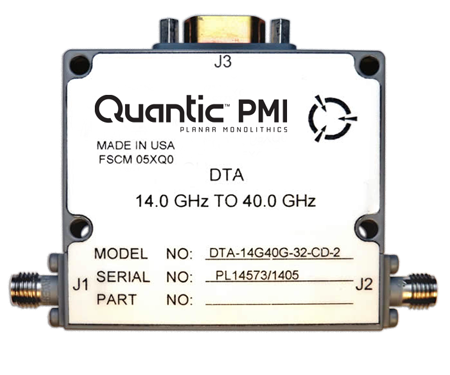

Digital Attenuator

DTA-14G40G-32-CD-2

Frequency Range: 14 to 40 GHz

Insertion Loss: 8 dB

VSWR: 1.8:1

Flatness: ±1.29 dB

Accuracy of Attenuation: ±0.35 dB

Switching Speed: 1 µs

2.92mm Female Connectors

Housing: 2.0" x 1.8" x 0.5"

Digital Attenuator

DTA-18G40G-60-CD-1

Frequency Range: 18 to 40 GHz

Mean Attenuation Range: 64.3 dB

Insertion Loss: 11 dB

VSWR: 1.71:1

Flatness: ±3 dB

Accuracy of Attenuation: ±0.75 dB

Power Handling: 24 dBm

Input 1 dB Compression: 10 dBm

Switching Time: 1 µs

2.92mm Female Connectors

Housing: 2.0" x 1.8" x 0.5"

Learn More

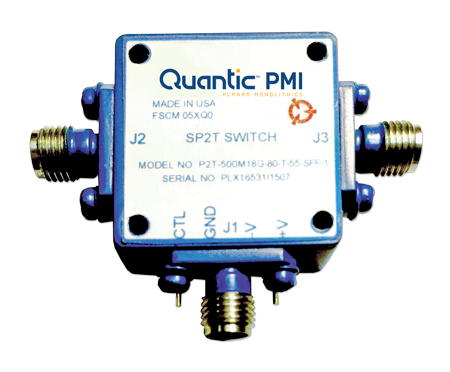

SP2T Absorptive Switch

P2T-500M18G-80-T-55-SFF-1

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 3.15 dB

Isolation: 89.2 dB

VSWR: 1.8:1

Switching Speed: 25 ns

Input Power: 20 dBm

Survival Power: 23 dBm

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

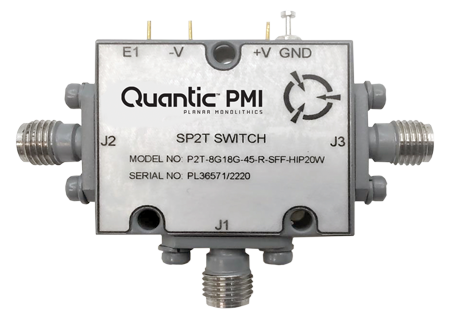

SP2T High Power Switch

P2T-8G18G-45-R-SFF-HIP20W

Frequency Range: 8 to 18 GHz

Insertion Loss: 1.9 dB

Isolation: 48 dB

VSWR: 1.89:1

Rise/Fall Time: 75 ns/25 ns

Delay On/Off: 150 ns/100 ns

Operating Input Power: 20 W

Hot Switching: 10 W

SMA Female Connectors

Housing: 1.2" x 1.0" x 0.5"

Learn More

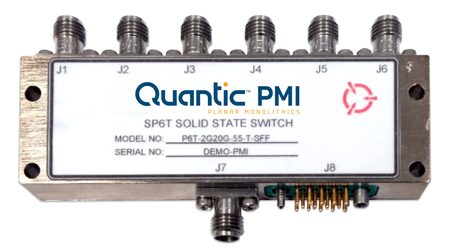

SP6T Absorptive Switch

P6T-2G20G-55-T-SFF

Frequency Range: 2 to 20 GHz

Isolation: 58.7 dB

Insertion Loss: 4.42 dB

Frequency Flatness: 0.7 dB

VSWR: 1.86:1

Input Power: 20 dBm

Rise/Fall Time: 30 ns

Video Leakage: 1.3 V, 25 ns Window

SMA Female Connectors

Housing: 3.1" x 1.0" x 0.4"

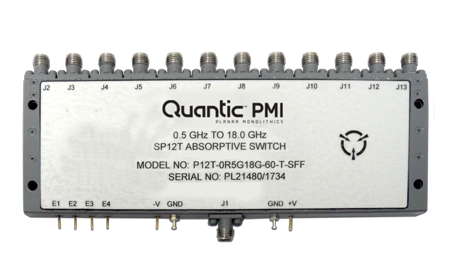

SP12T Absorptive Switch

P12T-0R5G18G-60-T-SFF

Passband Frequency: 0.5 to 18 GHz

Isolation: 87.01 dB

Insertion Loss: 4.42 dB

VSWR: 1.77:1

Switching Speed: 100 ns

Power Handling: 25 dBm

SMA Female Connectors

Housing: 6.0" x 2.0" x 0.4"

Learn More

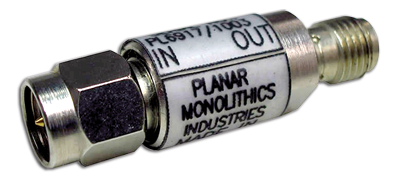

Limiter

LM-30M3G-C3-1

Frequency Range: 0.03 to 3 GHz

Insertion Loss: 0.98 dB

Peak Power: 5 W

Leakage Power: 10 dBm

Recovery Time: 1 usec

VSWR: 1.32:1

2.92mm Male/Female Connectors

Housing: 1.314" x 0.375"

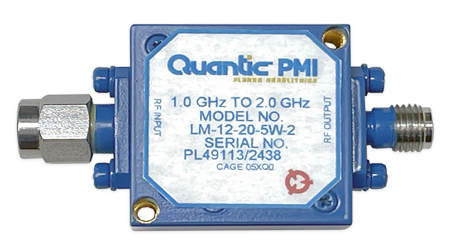

Limiter

LM-12-20-5W-2

Frequency Range: 1 to 2 GHz

Insertion Loss: 0.81 dB

Peak Power: 400 W

Leakage Power: 13 dBm

Average Power: 5 W

VSWR: 1.26:1

SMA Male/Female Connectors

Housing: 1.0" x 1.0" x 0.4"

Learn More

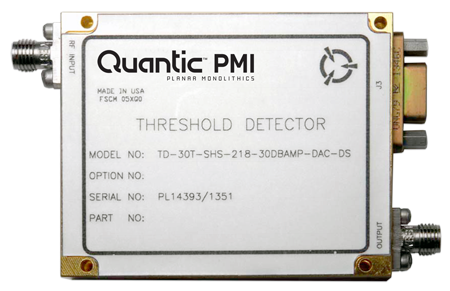

Threshold Detector

TD-30T-SHS-218-30DBAMP-DAC-DS

Frequency Range: 2 to 18 GHz

Minimum Signal Level for Response: -52 dB

Propagation Delay Monitor Output: 15 ns

Propagation Delay Logic Output: 27 ns

Threshold Level Range: 21 dB

SMA Female Connectors

Housing: 2.5" x 2.0" x 0.5"

Frequency Discriminator

FD-70M-50M-1212-50OHMS

Center Frequency: 70 MHz

Peak to Peak Bandwidth: 90 MHz

Linear Bandwidth: 50 MHz

Sensitivity: 100 mV/MHz

Linearity: ±0.1%

Input VSWR: 1.13:1

Input Dynamic Range: -10 to 0 dBm

SMA Female Connectors

Housing: 4.63" x 1.50" x 0.47"

Learn More

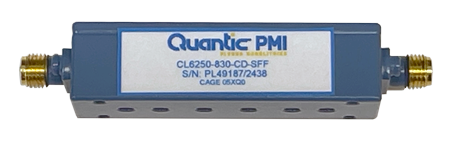

Combline Bandpass Filter

CL6250-830-CD-SFF

Center Frequency: 6.25 GHz

3 dB Bandwidth: 0.85 GHz

VSWR: 1.38:1

Group Delay: 1.96 ns

Insertion Loss: 0.35 dB

Rejection: -68.1 dB

Input Power: 5 W

SMA Female Connectors

Housing: 2.17" x 0.55" x 0.63"

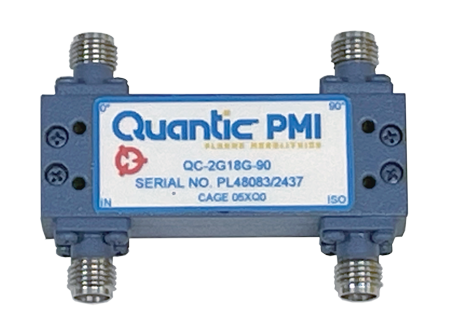

Quadrature Coupler

QC-2G18G-90

Frequency Range: 2 to 18 GHz

Insertion Loss: 1.28 dB

Isolation: 21.3 dB

VSWR: 1.27:1

Amplitude Balance: ±0.44 dB

Phase Balance: ±1.19°

Power Handling: 50 W

SMA Female Connectors

Housing: 1.850" x 0.640" x 0.433"

Learn More

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
