Featured Products

High Pass Filter

HP3G55M18G-SMA

Frequency Range: 3.55 to 18.0 GHz

Cutoff Frequency: 3.315 GHz

Insertion Loss: 0.68 dB

Rejection: 64.2 dB

VSWR: 1.59:1

Power Handling: 10 W

SMA Female Connectors

Housing: 1.26" x 0.71" x 0.39"

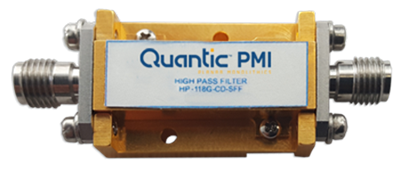

High Pass Filter

HP-118-CD-SFF

Frequency Range: 1 to 8 GHz

Insertion Loss: 2.18 dB

VSWR : 1.72:1

Rejection: 64.02 dB

SMA Female Connectors

Housing: 1.00" x 0.71" x 0.32"

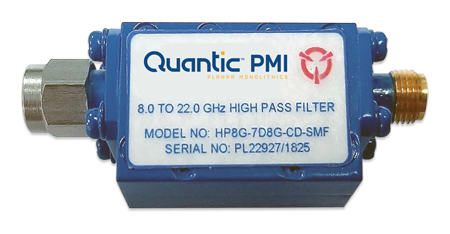

High Pass Filter

HP8G-7D8G-CD-SMF

Frequency Range: 8 to 22 GHz

3 dB Cutoff: 7.6 GHz

Input Power : 5 W

Ripple: 0.35 dB

VSWR: 1.57:1

Insertion Loss: 0.84 dB

Rejection: 17.23 dB

SMA Male/Female Connectors

Housing: 1.15" x 0.70" x 0.50"

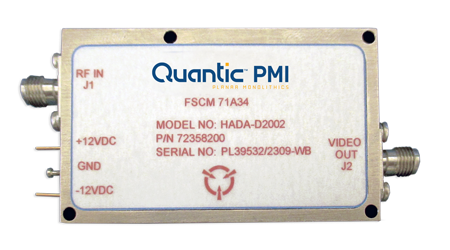

Detector Log Video Amplifier

(DLVA)

HADA-D2002

Frequency Range: 2 to 18 GHz

TSS: -40.5 dBm

Frequency Flatness: ±0.916

Logging Accuracy: 0.66 dB

Log Linearity: 0.34 dB

Rise/Fall Time: 27.8 ns/252.8 ns

Input VSWR: 1.58:1

SMA Female Connectors

Housing: 2.425" x 1.50" x 0.44"

Extended Range Detector Log Video Amplifier (ERDLVA)

ERDLVA-218-CW-75MV-93

Frequency Range: 2 to 18 GHz

VSWR: 1.29:1

Input Power: 23 dBm

Video Out TSS: -42 dBm

Video Out Dynamic Range: -40 to

+20 dBm

Video Out Log Linearity: ±1.5 dB

Video Out Rise Time: 25 ns

SMA Female Connectors

Housing: 2.90" x 2.30" x 0.50"

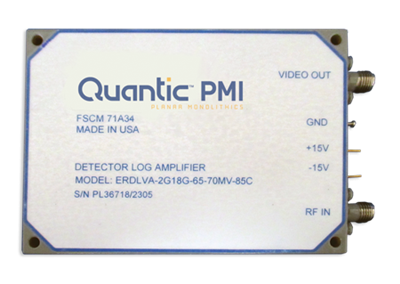

Extended Range Detector Log Video Amplifier (ERDLVA)

ERDLVA-2G18G-65-70MV-85C

Frequency Range: 2 to 18 GHz

VSWR: 2.06:1

Input Power: 1 W

Video Out TSS: -71 dBm

Video Out Dynamic Range: -65 to 0 dBm

Video Out Linearity: ±0.84 dB

Video Out Log Accuracy: ±1.25 dB

Video Out Rise/Fall Time: 26.5 ns /117 ns

SMA Female Connectors

Housing: 3.50" x 2.50" x 0.50"

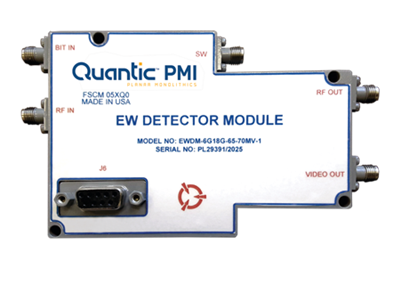

EW Detector Module

EWDM-6G18G-65-70MV-1

Frequency Range: 6 to 18 GHz

VSWR: 1.68:1

Noise Figure: 4.6 dB

Input Power: 1 W

Isolation: 60 dB

Switching Speed: 50 ns

Frequency Flatness: ±0.99 dB

Dynamic Range: -65 to 0 dBm

Rise/Fall Time: 25.8 ns/152.8 ns

SMA Female Connectors

Housing: 4.20" x 2.90" x 0.80"

Low Noise Amplifier

PEC-30-500M40G-20-12-292FF

Frequency Range: 0.5 to 40 GHz

Gain: 22.7 dB

Gain Flatness: ±2.5 dB

Noise Figure: 4.4 dB

OP1dB: 19.7 dBm

Psat: 23 dBm

Input Power Handling: 17 dBm

VSWR: 2.24:1

2.92mm Female Connectors

Housing: 1.37" x 1.00" x 0.60"

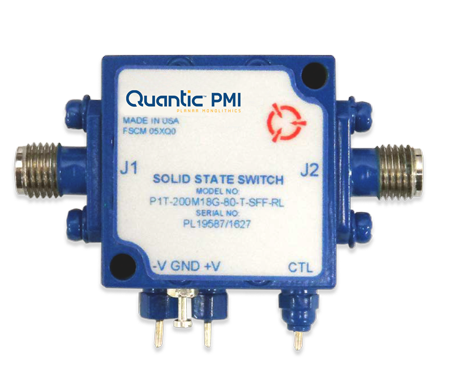

Single Pole, Single Throw, Absorptive Switch (SPST)

P1T-200M18G-80-T-SFF-RL

Frequency Range: 0.2 to 18 GHz

Insertion Loss: 2.07 dB

Isolation: 89.3 dB

VSWR: 1.9:1

Switching Speed: 5 ns

Operating Power: +27 dBm

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.50"

Single Pole, Two Throw, Absorptive Switch (SP2T)

P2T-0R3G18G-80-T-55-SFF

Frequency Range: 0.3 to 18 GHz

Insertion Loss: 2.8 dB

Isolation: 80.9 dB

VSWR: 1.92:1

Rise/Fall Time : 50 ns

Input Power: 20 dBm

SMA Female Connectors

Housing: 1.20" x 1.00" x 0.50"

Single Pole, Two Throw, Absorptive Switch (SP2T)

P2T-500M18G-80-T-515-SFF-4W-ST

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 3 dB

Isolation: 77 dB

VSWR: 1.69:1

Operating Input Power: 4 W

Switching Speed: 40 ns

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

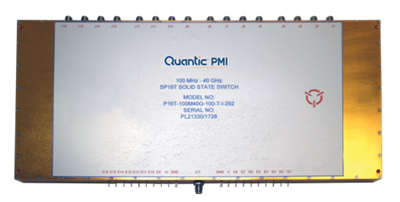

Single Pole, Sixteen Throw, Absorptive Switch (SP16T)

P16T-100M40G-100-T-I-292

Frequency Range: 0.1 to 40 GHz

Insertion Loss: 7.8 dB

Isolation: 95.6 dB

VSWR: 2.1:1

Input Power: 20 dBm

Switching Speed: 100 ns

2.92mm Female Connectors

Housing: 12.00" x 5.50" x 0.65"

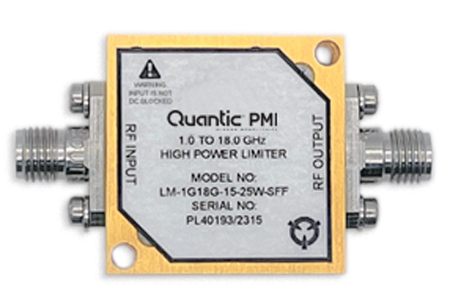

High Power Limiter

LM-1G18G-15-25W-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.06 dB

VSWR: 1.88:1

Recovery Time: 100 ns

RF Power Handling: 250 W

Limiting Threshold: +8 dBm

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

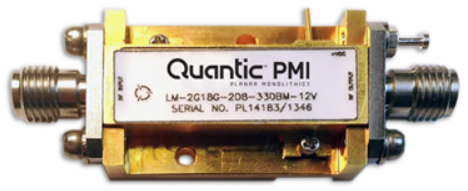

Limiter

LM-2G18G-2D8-33DBM-12V

Frequency Range: 2 to 18 GHz

Insertion Loss of 0.25 dB

Max Input Power of +33 dBm

Output Leakage Power, 0.31 dBm

VSWR of 1.92:1

SMA Female Connectors

Housing of 1.08" x 0.71" x 0.29"

High Power Limiter

LM-1G18G-15-3W-500WP-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 2.16 dB

VSWR: 1.88:1

Recovery Time: 100 ns

RF Power Handling: 3 W CW

Peak Power: 500 W

SMA Female Connectors

Housing: 1.00" x 1.00" x 0.40"

Threshold Detector

GMTA-1003

Frequency Range: 8.0 to 18 GHz

Threshold Stability: ±3.0 dB

Threshold Level: -42 dBm

VSWR: 2.33:1

Max Power Input: +10 dBm

Response Time: 10 µs

SMA Female Connectors

Housing: 1.15" x 1.15" x 0.37"

Directional Coupler

PDC-2G18G-20C-SFF-50W

Frequency Range: 2 to 18 GHz

Insertion Loss: 0.4 dB

VSWR: 1.18:1

Directivity: 17.8 dB

Coupling Factor: 20 ± 0.52 dB

Coupling Sensitivity: +0.3 dB

Power Handling: 50 W

SMA Female Connectors

Housing: 1.693" x 0.669" x 0.443"

16-Way Power Divider

PD-16-0D5G18D0G-SFF

Frequency Range: 0.5 to 18 GHz

Insertion Loss: 10.56 dB

Isolation: 18.47 dB

VSWR: 1.58:1

Amplitude Balance: 1.46 dB

Phase Balance: 8.81°

Power Handling: 10 W

SMA Female Connectors

Housing: 12.39" x 7.88" x 0.74"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
