Featured Products

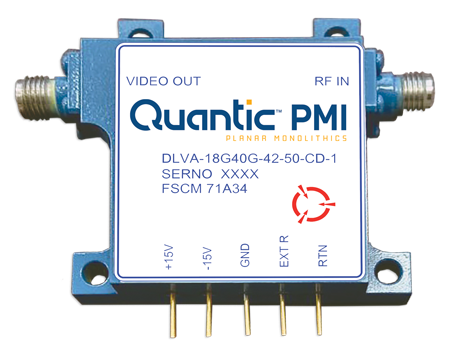

Log Video Amplifier

DLVA-18G40G-42-50-CD-1

Frequency Range: 18 to 40 GHz

VSWR: 1.5:1

TSS: 19.93 dB

DC Offset: 32 mV

Log Range: ±0.5 dB

Log Slope: 50.38 dB

Output Level Stability: ±0.75 dB

Frequency Flatness @ -23 dBm: ±0.2 dB

Log Intercept: 1.843 V

Rise Time: 0.161 us

Recovery Time: 4.8 us

2.92mm Female Connectors

Housing: 1.86" x 1.69" x 0.40"

Low Noise Amplifier

PEC-30-10M20-SFF-ROHS

Frequency Range: 0.01 to 20 GHz

Gain: 28.6 dB

Gain Flatness: ±1.35 dB

Noise Figure: 2.9 dB

OP1dB: 14.5 dBm

OIP3: 20 dBm

VSWR: 1.95:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.32"

RoHs Compliant

Low Noise Amplifier

PE2-25-218-20-12-SFF-OPT6G8G

Frequency Range: 6 to 8 GHz

Gain: 26 dB

Gain Flatness: ±0.15 dB

Noise Figure: 2.6 dB

OP1dB: 25.7 dBm

VSWR: 1.4:1

SMA Female Connectors

Housing: 1.08" x 0.71" x 0.29"

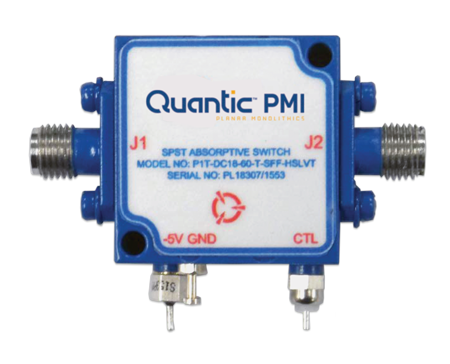

SP1T Absorptive Switch

P1T-DC18-60-T-SFF-HSLVT

Frequency Range: DC to 18 GHz

Insertion Loss: 3.4 dB

Isolation: 62.1 dB

Leakage: 71.4 dB

VSWR: 1.53:1

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.5"

SP1T Absorptive Switch

P1T-18G40G-90-1515-292FF

Frequency Range: 18 to 40 GHz

Isolation: 91 dB

Insertion Loss: 4.47 dB

VSWR: 1.5:1

Operating Power: 23 dBm

Switching Speed: 25 ns

2.92mm Female Connectors

Housing: 2.00" x 1.50" x 0.75"

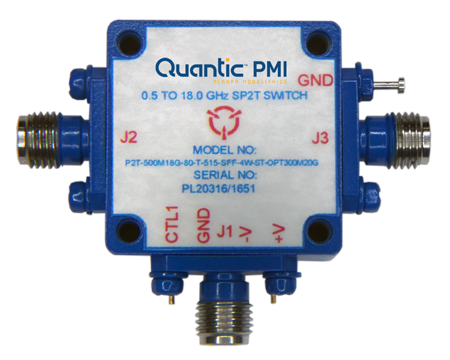

SP2T Absorptive Switch

P2T-500M18G-80-T-515-SFF-4W-ST-OPT300M20G

Frequency Range: 0.3 to 20 GHz

Insertion Loss: 3.47 dB

Isolation: 77.79 dB

VSWR: 1.77:1

Switching Speed: 60 ns

Operating Input Power: 4 W

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

SP2T High Power Switch

PDT-8G12G-40-515-SFF

Frequency Range: 8 to 12 GHz

Insertion Loss: 1.88 dB

Isolation: 52.4 dB

Input Power: 40 dBm

Operating Power Peak: 57 dBm

VSWR: 1.57:1

Switching Speed: 200 ns

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.30"

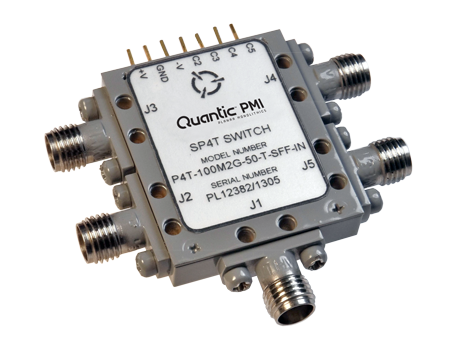

SP4T Absorptive Switch

P4T-100M2G-50-T-SFF-IN

Frequency Range: 0.1 to 2 GHz

Insertion Loss: 2.12 dB

Isolation: 71.4 dB

VSWR: 1.66:1

Survival Power: 1 W

Switching Speed: 25 ns

Rise/Fall Time: 10 ns

SMA Female Connectors

Housing: 1.00" x 1.20" x 0.24"

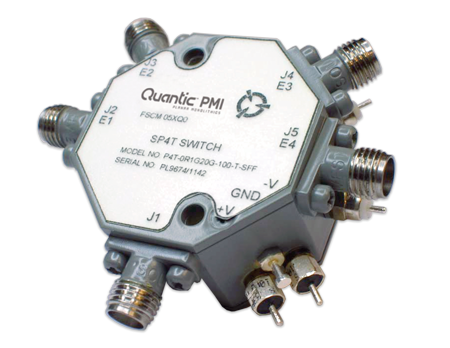

SP4T Absorptive Switch

P4T-0R1G20G-100-T-SFF

Frequency Range: 0.1 to 20 GHz

Insertion Loss: 4.8 dB

Isolation: 110 dB

VSWR: 1.9:1

Switching Speed: 300 ns

Survival Power: +30 dBm

Operating Power: +20 dBm

SMA Female Connectors

Housing: 1.25" x 1.25" x 0.70"

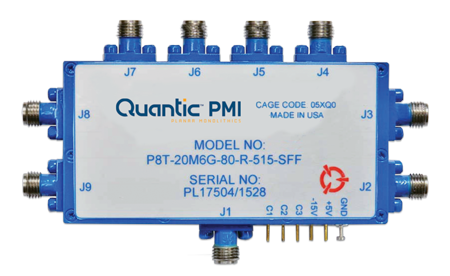

SP8T Reflective Switch

P8T-20M6G-80-R-515-SFF

Frequency Range: 0.02 to 6 GHz

Insertion Loss: 2.01 dB

Isolation: 85.4 dB

VSWR: 1.36:1

Switching Speed: 250 ns

Operating Power: 23 dBm

SMA Female Connectors

Housing: 3.0" x 1.5" x 0.5"

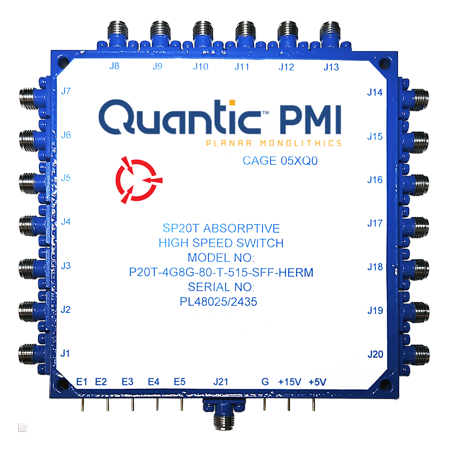

SP20T Absorptive Switch

P20T-4G8G-80-T-515-SFF-HERM

Frequency Range: 4 to 8 GHz

Isolation: 85.2 dB

Insertion Loss: 3.88 dB

VSWR: 1.73:1

Operating Power: 0.1 W

Switching Speed: 2 µs

SMA Female Connectors

Housing: 4.00" x 4.00" x 0.63"

Limiter

LM-1G18G-2W-SFF-BIAS

Frequency Range: 1 to 18 GHz

Insertion Loss: 1.58 dB

VSWR: 1.74:1

RF Leakage: 24.75 dBm

P1dB: 17 dBm

SMA Male/Female Connectors

Housing: 0.53" x 0.70" x 0.26"

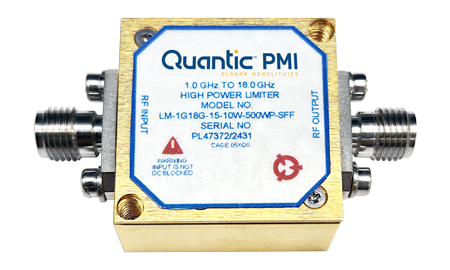

Limiter

LM-1G18G-15-10W-500WP-SFF

Frequency Range: 1 to 18 GHz

Insertion Loss: 1.67 dB

VSWR: 1.74:1

RF Leakage: 11.32 dBm

RF Power Handling: 10 W CW, 500 W Peak

Recovery Time: 100 ns

SMA Female Connectors

Housing: 1.0" x 1.0" x 0.4"

Limiter

LM-8D5G10D5G-1W-13DBM-SFM

Passband Frequency: 8.5 to 10.5 GHz

Insertion Loss: 1.03 dB

VSWR: 1.35:1

Leakage: 13 dBm

Input Power: 30 dBm

Limiting Threshold: 7 dBm

SMA Female Connectors

Housing: 0.90" x 0.38" x 0.38"

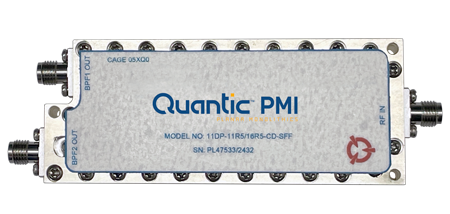

Diplexer

11DP-11R5/16R5-CD-SFF

BPF1 Center Frequency: 11.5 GHz

BPF2 Center Frequency: 16.5 GHz

BPF1 Passband Frequency Range: 10.75 to 12.25 GHz

BPF2 Passband Frequency Range: 15.75 to 17.25 GHz

Insertion Loss @ Passband: 0.96 dB

VSWR: 1.3:1

Rejection: -106.02

Return Loss Input/Output: -17.58 dB

SMA Female Connectors

Housing: 3.5" x 1.4" x 0.5"

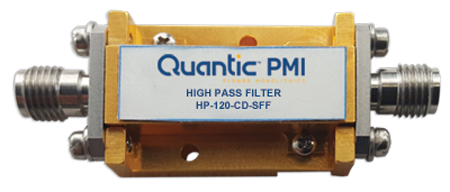

High Pass Filter

HP-120-CD-SFF

Passband: 1 to 20 GHz

Cut-Off Frequency: 1 GHz

Passband Insertion Loss: 3 dB

Passband VSWR: 2.0:1

Rejection: 60 dB @ 0.5 GHz

Operating Power: 10 W

SMA Female Connectors

Housing: 1.00" x 0.71" x 0.32"

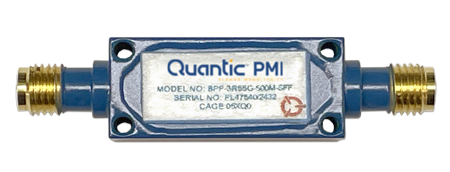

Band Pass Filter

BPF-3R55G-500M-SFF

Frequency Range: 3.3 to 3.8 GHz

Insertion Loss: 1 dB

Pass Band Ripple: ±0.3 dB

VSWR: 1.4:1

Rejection @ 3 GHz: 43.2 dBc

Input Power: 1 W

SMA Female Connectors

Housing: 0.99" x 0.47" x 0.35"

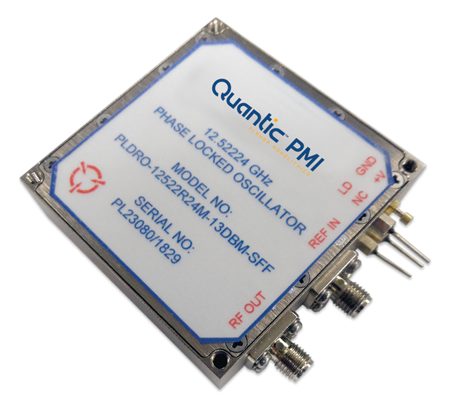

Phase Locked Oscillator

PLDRO-12522R24M-13DBM-SFF-ROHS

Frequency Range: 12.52224 GHz

External Reference: 0.13044 GHz

Reference Input Power: 0 dB

Output Power: 14.3 dBm

Spurious: -70 dBc

Harmonics: -31.41 dBc

SMA Female Connectors

Housing: 2.25" x 2.25" x 0.62"

RoHs Compliant

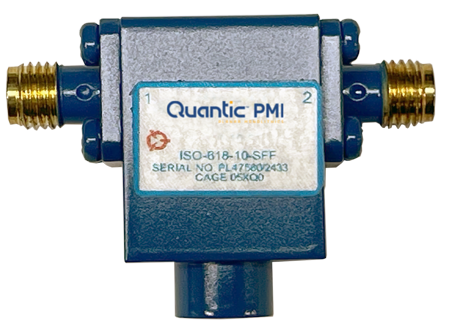

Isolator

ISO-618-10-SFF

Frequency Range: 6 to 18 GHz

Insertion Loss: 1.4 dB

VSWR: 1.8:1

Forward Power: 60 W

Reverse Power: 10 W

Isolation: 11.8 dB

SMA Female Connectors

Housing: 0.63" x 0.85" x 0.55"

DC to 70 GHz Components, Modules, and Sub-Systems

Quantic PMI (Planar Monolithics) is a leading supplier of custom, high-reliability RF and microwave components, modules and subsystems. Delivering industry-standard performance for mission-critical applications in the military, communications, commercial and consumer industries, Quantic PMI continues to expand its portfolio of state-of-the-art hybrid MIC/MMIC components, modules, and subsystems offering frequency coverage up to 70 GHz.
