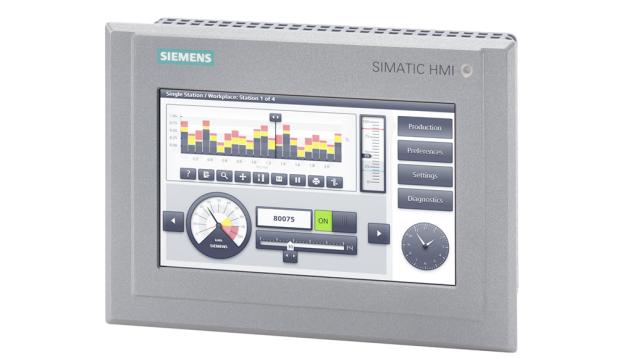

SIMATIC HMI Comfort Panels


High-end operator devices for sophisticated HMI applications


SIMATIC HMI Comfort Panels are designed for implementation of high-performance visualization applications on the machine-level. High performance, functionality and numerous integrated interfaces offer the greatest convenience in high-end applications.SIMATIC HMI Comfort Panels Standard devices form the technological basis for specialised variants like IP65 protected devices, panels with a stainless steel front, or for outdoor applications as well as coated versions.

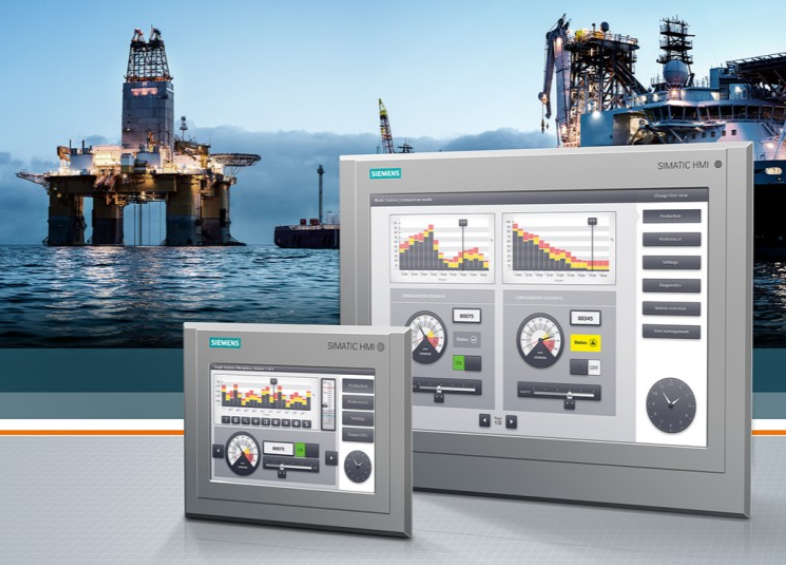

Comfort Panels Outdoor - Extremely flexible for every outdoor application

The SIMATIC HMI Comfort Outdoor Panels have been developed specifically for demanding HMI applications under extreme ambient conditions. This makes operation and monitoring extremely flexible – for every outdoor area.
Whether in the oil and gas industry, on ships or in refrigerated warehouses: SIMATIC HMI Comfort Outdoor Panels, with 7- or 15-inch daylight readable widescreen display, provide everything you need for outdoor operation and monitoring.
Flexible outdoor application through extremely robust design

The new SIMATIC HMI Comfort Outdoor Panels TP700 and TP1500 offer the same convenience as the familiar standard comfort devices in combination with extreme equipment properties for flexible outdoor application

  • Reliable operation in a wide temperature range from -30 °C to +60 °C, for example in refrigerated warehouses or in desert regions

  • High vibration and shock resistance, for example for use in vehicles or in the stamping machine and press sector

  • Panel front in IP66 for high degree of protection against dust and water penetration, for example for use in the mining industry or on ships

  • High UV resistance for long-term availability of function and optics, for example when used in mountain regions or close to the equator

  • Bonded display (as tough as laminated safety glass) for maximum protection against air humidity (90%), condensation and thermal stresses, for example for use in tropical zones
Application in any industry thanks to comprehensive certifications

SIMATIC HMI Comfort Outdoor Panels can be used with virtually no restriction in a wide range of different industrial sectors. Comprehensive certifications (in preparation), for example IEC-EX protection and marine, offer you flexible options for application in extreme areas:

  • Oil and gas production, transport and processing, biogas systems

  • Marine, shipbuilding, port facilities and cranes

  • Wind farms and solar parks, hydropower plants and sewage treatment plants

  • Deep-shaft and surface mining, quarries, gravel and sand pits

  • Cable railways, ice rinks and refrigerated warehouses

  • Vehicles and special machines in outdoor applications
