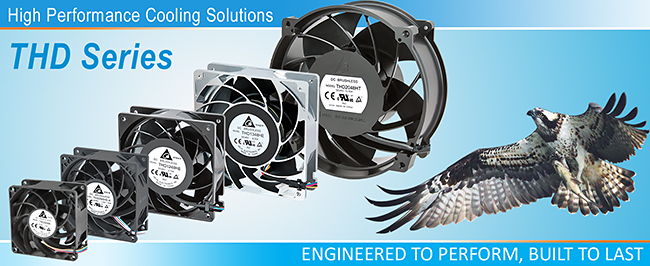

THD Series - High performance fans designed specifically for the following applications:
TELECOM, NETWORKING, DATA CENTER / SERVER, and CLOUD STORAGE.
The THD series boasts newly designed bionic blades inspired by nature's most powerful winged predators. This fan series represents the most quietest, powerful, and most efficient design Delta has to offer. Engineers managed to apply the posture and wing structures of an osprey in-flight to design the fan blades via parameterized and simulated processes. By simulating the curve of an osprey's wing in-flight, the new THD series fan reduces fan noise up to 6dB-A. THD fans offer different sizes of products, from SQ80mm to OD200mm.
Delta Electronics' THD series offers newly designed fan blades featuring:
●  Higher performance at lower noise
●  More powerful cooling solution
●  45% higher bionic fan efficiency
●  High strength blade design
●  Advanced motor driving tech
THD Series Fan Characteristics
Part Number
Dimensions
(mm)
Voltage
(VDC)
Speed
(RPM)
Air Flow
(CFM)
80x80x38
48 VDC
9500
128.00CFM (3.626 m3/min)
92x92x38
48 VDC
13500
182.41CFM (5.167 m3/min)
92x92x38
48 VDC
13500
182.41CFM (5.167 m3/min)
120x120x38
48 VDC
10900
287.00CFM (8.122 m3/min)
134x134x38
48 VDC
12500
490.00CFM (13.870 m3/min)
200x200x70
48 VDC
7400
1026.80CFM (29.06 m3/min)
About Delta's Fans and Thermal Management Business Group
Delta's Fans and Thermal Management Business Group, a global supplier of thermal management products, specializes in providing innovative, clean, and energy-efficient solutions. Delta offers a full line of thermal products for IT, telecommunication, consumer, automotive and industrial application to improve power efficiency and thermal performance.
