When Ground Penetration Radar Goes Wrong.

SEARCH TECHNOLOGY AND FORENSIC SCIENCE

Ground-Penetrating Radar in Forensic Search:

Capabilities, Limitations, and the High Cost of Misinterpretation

A Review Informed by Grave Error: How the Media Misled Us

Champion, C.P. & Flanagan, T. (Eds.) (2023)

Peace River K9 Search and Rescue (PRSAR) • Published 2026

Written by Michael Hasdell

Introduction

Ground-penetrating radar is a genuinely useful tool. In the right conditions, operated by a properly trained technician, interpreted with appropriate caution, and combined with other complementary methods, it can meaningfully contribute to forensic search operations. None of what follows is an argument against GPR as a technology.

It is, however, an argument against the way GPR is increasingly being taught, deployed, and—most critically—communicated to the public and to decision-makers. Across university forensic programs, law enforcement agencies, and media coverage of search operations, a consistent and dangerous misrepresentation has taken hold: that GPR detects graves or bodies. It does not. It detects anomalies in soil. The distinction is not a technical footnote. It is the entire point. And nowhere in recent history has the failure to maintain that distinction produced more catastrophic consequences than in Kamloops, British Columbia, Canada, in 2021.

This article examines what GPR actually does, what it cannot do, what conditions govern its reliability, and what protocols any responsible search program must follow before a GPR anomaly is treated as meaningful evidence of anything. It draws substantially on the scholarship assembled in Grave Error: How the Media Misled Us (Champion & Flanagan, 2023)—a rigorous multi-author examination of the Kamloops case and its aftermath—alongside the peer-reviewed forensic science literature on GPR performance in forensic burial detection.

What Ground-Penetrating Radar Actually Does

Ground-penetrating radar works by emitting high-frequency electromagnetic pulses into the ground and recording the reflections that return when those pulses encounter boundaries between materials with different electrical properties—such as different densities, moisture contents, or compositions. The pattern of these reflected signals is displayed as a radargram: a visual representation of subsurface conditions along the scan line.

When a grave is dug and a body is buried, several things happen that can, under the right conditions, produce a detectable GPR signature. The soil that was removed and replaced is no longer in its original compressed, stratified state—it has been disturbed, mixed, and re-deposited with different density and void characteristics than the surrounding undisturbed earth. The body itself, as it decomposes, may create a further void or density change. The contrast between these disturbed zones and the surrounding undisturbed soil is what GPR can sometimes detect.

Critical Distinction:

GPR does NOT detect bodies, graves, bones, or human remains. It detects contrasts in soil properties. A GPR anomaly indicates that something has changed in the subsurface at that location. It does not, and cannot, tell you what caused that change.

What Else Produces GPR Anomalies

This is the limitation that is most frequently omitted from public communications about GPR, and it is the one that matters most. Every one of the following can produce a GPR signal that is identical or highly similar to the signal produced by a disturbed grave:

• Tree roots and root systems, particularly from large trees or stumps

• Rocks, cobbles, and buried boulders

• Animal burrows and dens

• Buried pipes, cables, and utility infrastructure

• Old agricultural features: drainage ditches, buried furrows, fence post holes

• Natural soil stratification changes: lenses of gravel, clay pockets, filled sinkholes

• Previous excavations, construction disturbances, or landscaping

• Known and documented burial sites—including cemeteries—where wooden grave markers have rotted away

• Seasonal frost patterns and water table fluctuations

The peer-reviewed forensic science literature is explicit on this point. Research published by Schultz et al. documented that grave anomalies become less distinctive over time as decomposing bodies and settling backfill compact into the surrounding soil—meaning that GPR is least reliable for older interments, precisely when forensic interest is often highest. Studies have also shown that soil type is a dominant variable: GPR performs well in sandy soils and gravel, moderately in loam, and poorly in wet, clay-heavy, or high-conductivity soils where signal penetration is severely limited.

A Case Study in Misinterpretation: Kamloops, 2021

On May 27, 2021, the Chief of the Tkʼemlúps te Secwépemc announced that ground-penetrating radar had located the remains of 215 missing children in an apple orchard on the grounds of the former Kamloops Indian Residential School in British Columbia, Canada. Within hours, the announcement had become international news. Within days, it had become a defining moral and political event—described by many commentators as Canada's most significant reckoning with its treatment of Indigenous peoples.

Churches were burned. Statues were toppled. National days of mourning were declared. A cascade of government apologies, compensation settlements, and policy commitments followed, ultimately totaling many billions of dollars in direct payments and long-term reform commitments. The Prime Minister flew the national flag at half-staff.

Not one body was found. Not one grave was confirmed. Not one set of human remains was identified.

From Grave Error (Champion & Flanagan, 2023):

Ground-penetrating radar cannot locate bodies, graves or possible graves. The 215 purported grave sites in Kamloops, since reduced to 200 soil anomalies, have never been investigated. Of all the alleged locations across Canada, only four supposedly hidden gravesites have been excavated. No graves were found.

What the Evidence Actually Showed

The GPR survey at Kamloops was conducted by a single technician—not a forensic anthropologist, not a geologist, not a trained forensic geophysicist—who identified anomalies in the subsurface of the apple orchard. Those anomalies were described publicly as the likely remains of 215 children. No cadaver dog searches were conducted. No soil probing was done. No core sampling was taken. No excavation was authorized. The site was not examined by a forensic anthropologist.

What was known—and not communicated in the initial announcement—was substantial. The apple orchard had been an orchard for decades, with all of the root systems, organic disturbances, and soil variations that imply. The area had been previously excavated at various times without producing any evidence of burials. The school's own historical records documented students who had died during the school's operation and were buried in a known cemetery some distance from the orchard. Historical death records, school records, and government records did not support the claimed scale of unrecorded deaths.

Historian Jacques Rouillard’s essay, “In Kamloops, Not One Body Has Been Found”—among the foundational contributions to Grave Error—examined the historical record in detail and found no credible evidentiary basis for the claim that 215 children were secretly buried in the orchard. His analysis, which reached nearly 300,000 readers in its original online form, documents how the GPR anomalies—never ground-truthed, never verified, never excavated—were transformed by a cascade of media reporting, political response, and institutional capitulation into settled historical fact.

The Root Cause: Conflating Anomaly with Evidence

The Kamloops case is not primarily a story about GPR failing as a technology. GPR performed as it always performs—it detected subsurface anomalies. The failure was in interpretation, communication, and the complete absence of the verification protocols required by any responsible forensic investigation.

A GPR anomaly is a question, not an answer. It says: something is different here. It does not say: a child is buried here. The step from anomaly to conclusion requires ground-truthing, and ground-truthing was never done. Instead, the anomaly was announced as a discovery, reported as a discovery, and responded to as a discovery, while the apple orchard’s soil continued to hold nothing more than roots, rocks, and the complex stratigraphy of decades of agricultural use.

The Kamloops Lesson:

When a GPR anomaly is treated as confirmation of a burial without cadaver dog verification, soil probing, core sampling, and qualified forensic excavation, it is not science. It is speculation—and speculation announced as fact to a grieving and responsive public can cause damage that no subsequent correction will undo.

Technical Limitations of GPR in Forensic Contexts

The Kamloops case illustrates the human and institutional failure modes of GPR misuse. But it is worth examining the technical limitations in their own right, because they are substantial and because they are frequently minimized in university forensic curricula and law enforcement training programs.

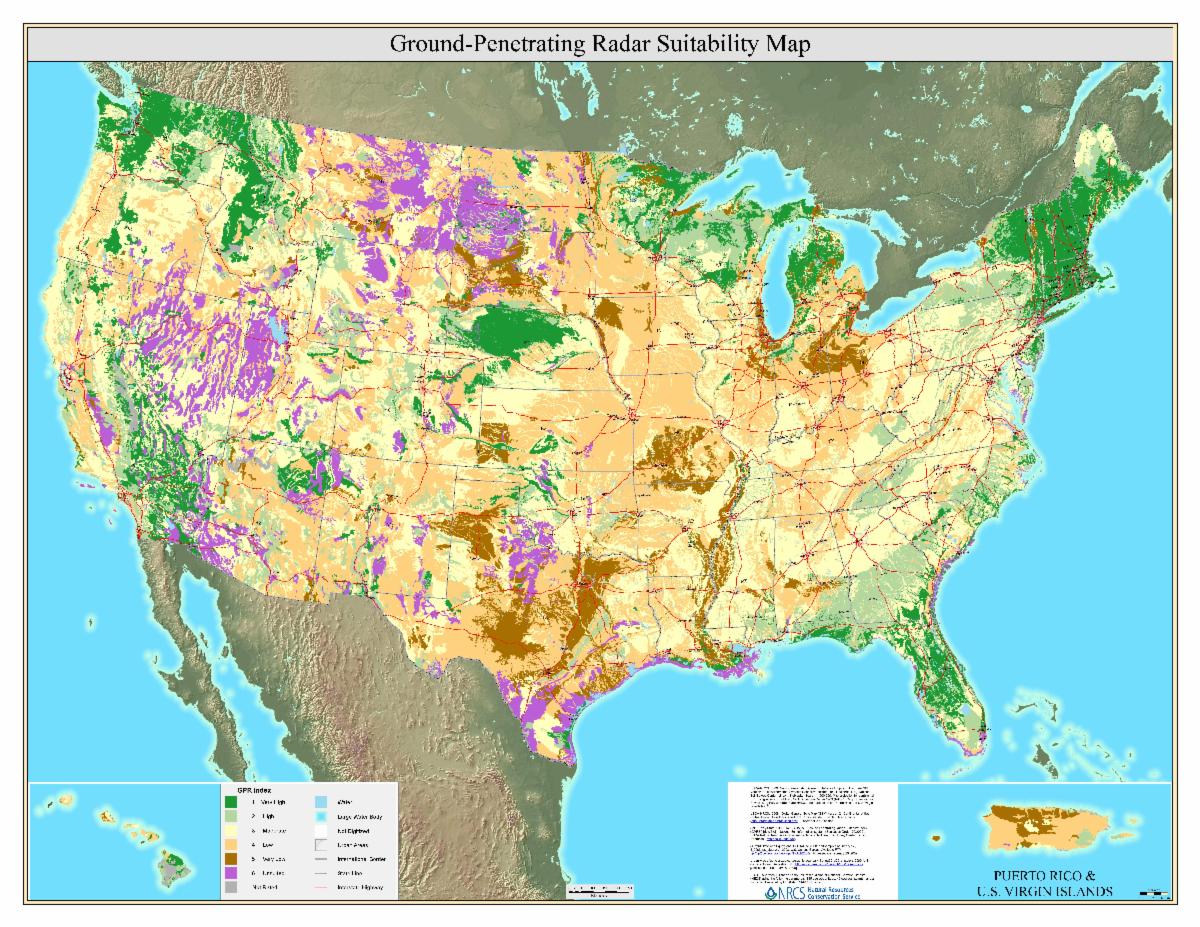

Soil Conditions

GPR signal penetration and resolution are governed almost entirely by soil properties. The technology performs optimally in dry, sandy, or gravelly soils with low electrical conductivity. It performs poorly—sometimes not at all—in:

• Wet or waterlogged soils, where high moisture content absorbs signal energy

• Clay-heavy soils, which have high electrical conductivity and severely attenuate GPR signals, sometimes limiting useful penetration to less than one to two feet

• Soils with high salt content or mineral conductivity

• Rocky or highly heterogeneous soils, which produce a high level of background “clutter” that makes anomaly identification unreliable

A survey conducted without prior knowledge of soil type, moisture content, and conductivity profile cannot be reliably interpreted. The GPR operator must understand the baseline signal behavior of the specific soil at the specific site before any anomaly can be meaningfully assessed.

Vegetation and Surface Conditions

GPR is best used in flat, open terrain with short grass cover and minimal woody vegetation. Root systems from trees, shrubs, and stumps create pervasive subsurface anomalies that are indistinguishable from grave features without additional verification. An apple orchard—as in Kamloops—is close to the worst possible GPR operating environment: decades of root growth, organic decomposition, soil amendment, irrigation, and ground disturbance produce exactly the kind of complex, anomaly-rich subsurface environment in which GPR results are least interpretable.

Operator Expertise and Interpretive Standards

GPR data is not self-interpreting. The radargram produced by a survey requires expert analysis by someone trained in both the technology and the forensic or geophysical context. The same anomaly pattern can represent a grave, a tree stump, a rock cluster, a buried pipe, or an old drainage feature. Distinguishing between these possibilities requires:

• Knowledge of the site's land use history

• Understanding of local soil stratigraphy

• Experience interpreting GPR data in forensic contexts specifically

• Integration of the GPR data with other investigative findings

A technician who is an expert in GPR operation but not in forensic grave detection is not qualified to characterize a GPR anomaly as a probable grave. This distinction matters enormously when the result of that characterization will be communicated publicly.

Time Dependence

GPR anomalies from buried remains change over time in ways that are not always favorable for detection. Research has documented that grave signatures become less distinct as decomposition progresses and disturbed backfill settles and compacts toward the density of surrounding soil. Studies monitoring forensic burial simulations found that many grave anomalies became undetectable within months to years of burial. For older interments—the historic school-era burials at the center of the Kamloops claim—this means that any grave signal would have diminished substantially over decades.

The Verification Protocol: From Anomaly to Evidence

If GPR is to be used responsibly in forensic search operations—and it can and should be, within its proper scope—it must be embedded in a verification protocol that does not treat the GPR result as an endpoint. The following sequence represents the minimum standard for a responsible GPR-informed forensic investigation.

Step 1: Site Assessment Before the Survey

Before a GPR survey is conducted, the following information should be gathered and documented:

• Soil type, texture, and moisture profile for the survey area

• Site history: land use, known burials, agricultural activity, utility installation, construction

• Vegetation inventory: locations and root spread of trees, shrubs, and stumps

• Known surface features that may have subsurface signatures

A site that is unlikely to yield interpretable GPR data should not be surveyed, or should be surveyed with explicit acknowledgment in all reporting that results will have limited interpretive value.

Step 2: GPR Survey by Qualified Operator

The GPR survey should be conducted by an operator with specific forensic geophysics training, not merely general GPR operating experience. The survey should follow a systematic grid pattern with documented antenna frequency, traverse spacing, and data collection parameters. All survey data should be archived in raw form alongside processed radargrams.

Step 3: Cadaver Dog Verification

Any anomaly identified as potentially consistent with a grave feature should be evaluated by a certified Human Remains Detection (HRD) canine team before any further action is taken. Cadaver dogs and GPR are complementary technologies that detect entirely different signatures—VOC chemistry versus soil density contrast—and agreement between them provides a substantially stronger basis for further investigation than either alone.

The absence of cadaver dog verification at Kamloops was not a minor procedural gap. It was the single most consequential investigative failure in the chain of events that followed. A properly deployed HRD canine team working the orchard would have provided independent, chemistry-based evidence either supporting or contradicting the GPR findings. None was used.

Step 4: Soil Probing and Core Sampling

Physical probing of anomalous zones allows direct assessment of soil density variations and can detect the “soft” feel of previously disturbed and resettled soil characteristic of grave shafts. Core sampling extracts soil columns for laboratory analysis of chemistry, stratigraphy, and biological markers. Both methods are minimally invasive and should precede any decision to excavate.

Step 5: Forensic Excavation

If the preceding steps collectively support the hypothesis of a burial, forensic excavation should be conducted by a qualified forensic anthropologist or archaeologist using stratigraphic methods—removing soil layer by layer, documenting the stratigraphy as work proceeds, and looking for the physical evidence of a grave shaft, grave goods, or human remains.

This step cannot be bypassed. There is no technology that confirms a grave without excavation. GPR, cadaver dogs, soil probing, and core sampling are all qualifying tools—they raise or lower the probability that a grave is present. Only excavation resolves the question. And it is worth saying plainly: a grave can be missed by inches if the excavator does not know what stratigraphic signs to look for. This is skilled, specialized work, and it should be treated as such.

Fundamental Principle:

No technology confirms a grave without excavation. Every method short of excavation is a qualifying tool that raises or lowers the probability of a burial. Announcing a discovery before excavation is not forensic science—it is speculation.

A Note on University Forensic Curricula

Ground-penetrating radar has become a standard topic in forensic science and forensic anthropology programs at universities across North America and beyond. This is appropriate—it is a legitimately useful tool in the forensic toolkit, and students should understand it.

What is not appropriate is teaching GPR capabilities without equal or greater emphasis on its limitations. A student who completes a forensic science program believing that GPR detects graves has been mis-educated in a way that is potentially damaging to real investigations. The Kamloops case is a vivid and costly illustration of what that miseducation looks like at scale.

University forensic programs should require that GPR instruction include:

• Explicit instruction on what GPR detects (soil anomalies) versus what it does not detect (bodies, remains, graves)

• A thorough inventory of false-positive sources, with case examples

• Instruction on the role of soil science in GPR result interpretation

• Case studies of GPR misinterpretation and their consequences

• Clear protocols for the verification steps required before a GPR anomaly is characterized as a potential grave

• Discussion of Grave Error and the Kamloops case as a primary case study in the consequences of interpretive overreach

PRSAR Policy: Ground-Penetrating Radar in Search Operations

PRSAR Policy Statement: GPR in Missing Persons and HRD Search Operations

Peace River K9 Search and Rescue recognizes ground-penetrating radar as a valuable qualifying technology in forensic search operations. GPR may be used by PRSAR or recommended to partner agencies under the following principles:

1. GPR is a qualifying tool, not a confirmatory one. A GPR anomaly is the beginning of an investigation, not its conclusion. PRSAR will never characterize a GPR finding as evidence of a burial without verification by at least one additional independent method.

2. HRD canine verification is required for any anomaly to be advanced. Before any GPR anomaly is communicated to law enforcement as a probable burial site, the area must be worked by a certified Human Remains Detection K9 team. Agreement between GPR and HRD canine findings is required to recommend further investigation.

3. Site assessment precedes survey. GPR surveys will not be conducted without prior assessment of soil conditions, site history, and vegetation. Survey results will be documented with explicit notation of site-specific limitations.

4. Qualified forensic anthropologist involvement is required for excavation. PRSAR will not conduct or recommend excavation of any potential grave site without the direct involvement of a qualified forensic anthropologist or forensic archaeologist using stratigraphic methods.

5. Family and community communication will be accurate and restrained. PRSAR is committed to communicating with families and communities about search findings with accuracy, clarity, and appropriate epistemic humility. We will not describe a GPR anomaly as a discovery of remains. We will explain what GPR can and cannot determine, and we will not create expectations that the technology cannot support.

6. No grave is confirmed without excavation. This principle is non-negotiable. PRSAR will not support, endorse, or participate in any process that treats a non-excavated anomaly as a confirmed burial.

Conclusion

Ground-penetrating radar is a tool. Like all tools, it has a proper use, proper operating conditions, and proper limits. A hammer used as a screwdriver is not a failed hammer—it is a misused one. GPR used as a grave-confirming instrument is not a failed technology; it is a misapplied one.

The Kamloops case, examined in devastating detail in Grave Error, stands as the most consequential illustration in recent forensic history of what happens when a soil-anomaly detection technology is allowed—through interpretive overreach, institutional failure, media sensationalism, and political pressure—to become the basis for declared historical fact. The social, financial, and political damage runs to many billions of dollars. No body has been found. No grave has been confirmed. No excavation has been permitted.

For the HRD K9 and forensic search community, the lesson is not abstract. Every time a search team, a university program, or a law enforcement agency communicates GPR findings without making the anomaly-versus-evidence distinction explicit, they are moving one small step in the direction of Kamloops. The professional and ethical obligation is clear: teach the limitations as rigorously as the capabilities, embed GPR in a verification protocol that it cannot shortcut, and never—under any circumstances—call an anomaly a discovery.

Introduction

Over the many years of working scent-alerting K9s, we have seen a significant evolution in training aids and the proper storage of those aids. Among the most important lessons learned has been the impact of TTR—Transfer, Trace, and Residual odor—on training integrity and canine imprinting. What began as informal field practices has, through hard experience and careful observation, developed into a body of knowledge that every cadaver dog handler must understand.

Cadaver dogs are trained to detect human decomposition at multiple stages. A properly imprinted human remains detection (HRD) dog should recognize the odor profile of five distinct stages of decomposition:

• Fresh (0–72 hours post-mortem)

• Early decomposition (bloat and purge, days 3–10)

• Active decomposition (black putrefaction, days 10–25)

• Advanced decomposition (days 25– 50)

• Skeletonization / dry remains (50+ days)

Each stage produces a different and complex mix of volatile organic compounds (VOCs). The integrity of each sample—and the separation of those samples during storage—is foundational to whether a dog is truly imprinted on each stage or simply trained to a blended, contaminated odor cocktail that bears little resemblance to what it will encounter in the field.

The TTR Problem: Transfer, Trace, and Residual Odor

The concept of TTR was not invented in a laboratory. It was discovered by accident—dramatically and consequentially—during the Iraq War, when handlers and trainers began noticing that military working dogs trained on explosives were alerting on items they had never been specifically trained to detect. Investigation revealed that cross-contaminated storage was the culprit. The same principle applies with equal force to cadaver dog training aids.

Transfer Odor

Transfer odor occurs when scent molecules from one training aid physically migrate to another surface, object, or container through direct or indirect contact. This is not a subtle effect—human remains produce powerful, highly diffusive VOCs that permeate porous materials, cloth, wood, cardboard, and even many plastics with alarming speed.

In practical terms: if a cadaver sample in a mason jar is placed in an ammo can alongside other samples, the headspace of that ammo can becomes saturated with mixed odors. Every jar, every surface, every foam insert absorbs a portion of that odor. When a handler later retrieves a single jar, they may believe they are presenting one specific scent, but they are presenting a composite—and so is every other “separate” jar in that can.

Trace Odor

Trace odor refers to residual scent left behind on a surface even after the primary source has been removed. It is the ghost of the odor—often imperceptible to humans, but entirely detectable to a dog trained to odor thresholds orders of magnitude beyond human perception.

A container that once held a fresh decomposition sample and is later cleaned and repurposed for a skeletal sample will retain trace odor from the original contents. A freezer shelf that held unpackaged or poorly packaged samples will carry trace odors of everything that was ever stored on it. A handler’s gloves, if not changed between samples, become a trace transfer vector.

Residual Odor

Residual odor is the persistent background scent that accumulates in a storage environment over time. Unlike transfer odor (which moves from source to surface) or trace odor (which lingers after a source departs), residual odor is the ambient, chronic contamination of a space—the odor climate of the storage environment itself.

A freezer used for years to store improperly packaged human remains training aids develops a residual odor profile that permeates every item placed inside it, regardless of how those items are individually packaged. The freezer itself becomes a contaminating agent.

Key Insight: When TTR contamination is present, the dog is not learning to detect decomposition at specific stages—it is learning to detect the odor profile of your storage environment. This distinction has profound implications for operational reliability.

The PRSAR Discovery: When Good Intentions Create Bad Science

At PRSAR, we encountered the TTR problem clearly about 15 years ago. The storage method common at the time—and still used by many teams today—involved several mason jars of cadaver samples stored together in a military surplus ammo can, kept either in an outdoor shed or in a shared freezer. This approach seemed logical: the ammo can was portable, the mason jars were familiar, and the shed or freezer kept things cool.

What we observed, over time, was a troubling pattern. Dogs imprinted in this environment were performing inconsistently on real searches. More specifically, they were alerting with high confidence on areas with minimal remains, and occasionally failing to alert on areas of interest where remains were present but did not match the composite odor signature the dog had been trained to. The imprinting, we concluded, had been to a blended odor, not to distinct stages.

When we examined our storage methods critically, the problems became obvious:

• Mason jars, unless of the highest quality and fitted with intact, uncompromised lids, are not odor-proof. Scent permeates through the seal interface.

• Storing all samples together in a single ammo can created a closed environment where odors commingled freely.

• Freezers shared with other items, or not dedicated solely to cadaver storage, introduced additional odor variables.

• The ammo can itself, once exposed, became a persistent source of residual odor contamination.

• Handlers frequently handled multiple samples in sequence without changing gloves or decontaminating equipment, creating transfer vectors directly to training hides.

The question this raises is not merely academic: if all five decomposition-stage samples are stored together and allowed to commingle odors for months or years, has the dog been imprinted on five distinct stages—or on one blended odor that does not cleanly correspond to any real-world scenario?

Proper Storage Protocols for Human Remains Training Aids

Correcting TTR contamination requires a systematic approach to acquisition, packaging, storage, and handling. The following protocols reflect best practices developed through operational experience and are consistent with guidance from professional HRD training organizations.

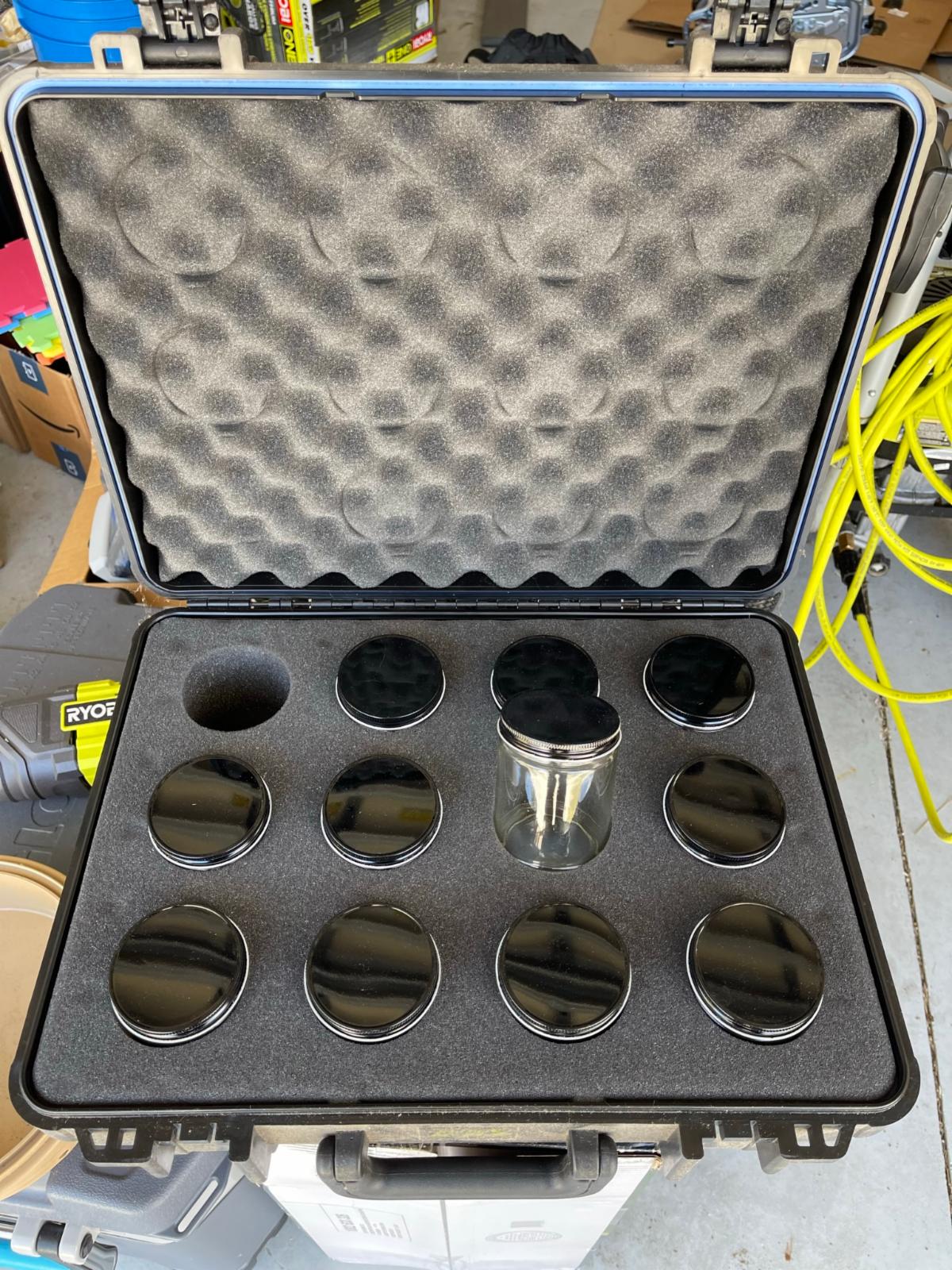

1. Packaging: The Primary Barrier

Effective scent containment begins at the packaging level. A single layer of glass or plastic is insufficient. The standard for HRD training aids should be a triple-barrier system:

1. Inner container: A clean, uncontaminated glass jar (wide-mouth mason jar or purpose-built laboratory jar) with a new, uncompromised lid and seal. The jar must be dedicated to a single sample and a single decomposition stage only. Label the jar with the stage, collection date, and source type (soil, bone, tissue, teeth, etc.).

2. Intermediate barrier: The sealed jar is placed inside a heavy-gauge zip-lock freezer bag (minimum 4 mil), which is then heat-sealed or double-sealed. This captures any headspace leakage from the jar.

3. Outer container: The bagged jar is placed inside a second, larger rigid container—ideally a dedicated sealable plastic storage container—labeled clearly with the decomposition stage and storage date.

Each of these layers must be inspected regularly. Jar lids corrode. Rubber seals degrade. Plastic bags develop micro-perforations. No packaging is permanent.

2. Freezer Specifications and Dedicated Storage

The storage freezer is not a secondary consideration—it is a primary component of the scent-containment system. The following specifications should be considered the minimum standard:

Freezer Type

• Use a dedicated chest or upright freezer used exclusively for cadaver training aids. Under no circumstances should HRD samples share a freezer with food, medications, biological specimens for other purposes, or training aids for other disciplines (explosives, narcotics).

• Chest freezers are preferred over upright freezers because they maintain temperature more consistently when opened and have fewer warm spots. However, either type is acceptable if properly managed.

Temperature Requirements

• Maintain a consistent internal temperature of 0°F (-18°C) or below. Fluctuating temperatures accelerate VOC off-gassing and degrade sample integrity.

• Use a calibrated external thermometer with a probe inside the freezer—do not rely solely on the freezer’s built-in thermostat display, which may not accurately reflect interior conditions.

• Log temperature readings at least weekly. Establish a protocol for sample response if the freezer experiences a failure.

Interior Organization

• Stage separation is mandatory. Each decomposition stage must have its own dedicated section of the freezer, ideally separated by physical dividers or stored in separate sealed bins within the freezer.

• Do not stack samples from different stages directly against one another, even in sealed containers.

• Use a labeling system that allows any team member to identify stage, date, and source without opening any container.

• Keep a master inventory log outside the freezer listing each sample, its stage, collection date, and condition notes.

Freezer Maintenance

• Defrost and deep-clean the freezer at least annually. Use an unscented enzymatic cleaner, then rinse thoroughly with water and allow full drying before restocking.

• After deep cleaning, allow the freezer to run empty for 24–48 hours before returning samples to detect any persistent residual odor.

• Replace the freezer if residual odor contamination cannot be eliminated after repeated deep cleaning.

3. Sample Acquisition and Handling Protocols

Contamination does not begin in the freezer. It can begin at the moment of sample acquisition if proper protocols are not followed.

• Always use clean, nitrile examination gloves when handling any training aid. Change gloves between handling different samples or different stages. Never use the same gloves to handle a training aid and then prepare a training hide.

• Use dedicated tools (forceps, tongs, spatulas) for each stage. Do not cross-contaminate tools between stages. Store tools in stage-designated containers.

• When collecting samples in the field, package immediately using the triple-barrier system. Do not transport loose samples in an open container.

• Document every sample at acquisition: date, location, estimated post-mortem interval, sample type (soil, bone, soft tissue, teeth, hair), and collector name.

• Samples from unknown or unverified sources should not be used for imprinting. Source integrity is essential to odor integrity.

4. Thawing and Training Aid Preparation

Thawing and preparation introduce another high-risk window for contamination that is frequently overlooked.

• Thaw samples in a designated, odor-isolated preparation area—not in the kitchen, not in the team vehicle, and not in a shared workspace.

• Thaw only the specific stage sample required for the training session. Do not thaw multiple stages simultaneously in the same space.

• Use disposable preparation surfaces (heavy plastic sheeting or disposable bench liners). Dispose of preparation materials as biohazardous waste.

• Prepare training aids in containers that will be used only for that stage and are cleaned with an enzymatic cleaner between sessions.

• Never refreeze a sample that has been fully thawed. Degraded samples should be properly disposed of as biohazardous material.

5. Training Hide Integrity

The training hide itself must be treated as a scent-controlled environment, not simply a prop.

• Use stage-dedicated hide containers. A PVC pipe section or commercial scent vessel used for “fresh” decomposition should never be used for skeletal remains and vice versa.

• Clean hide containers with an unscented enzymatic cleaner after each session and allow to fully air out before storage.

• Store hide containers separately by stage, in the same dedicated manner as the samples themselves.

• Never touch a training hide with an ungloved hand after a session begins. The handler’s own scent and any cross-contaminated residue become part of what the dog learns.

Record-Keeping and Quality Control

No storage protocol is complete without a documentation system. Teams that do not maintain records of their training aids cannot answer the most fundamental question: has this dog been properly imprinted on all five decomposition stages using uncontaminated samples?

At a minimum, maintain the following records:

• Sample log: For each sample in the collection stage, source type, collection date, condition, and disposal date.

• Training session log: For each session—which dog, which handler, which sample stage(s) used, hide configuration, and dog’s response.

• Freezer log: Weekly temperature readings, cleaning dates, and any anomalies.

• Incident log: Any suspected contamination events, packaging failures, or protocol deviations, with corrective actions taken.

These records are not bureaucratic overhead. They are the evidentiary foundation that supports the reliability of the team’s work, and in operational contexts—search and rescue, law enforcement, forensic investigations—the integrity of that work can matter enormously.

When to Reassess Imprinting

If a team has been using TTR-compromised training aids, the hard question must be asked: is the dog actually imprinted on five stages of decomposition, or is it imprinted on the odor of the storage environment? There is no shame in asking this question—but there is risk in refusing to ask it.

Consider a formal reassessment of imprinting if any of the following apply:

• Samples from multiple stages have been stored together without rigorous separation for six months or more.

• The storage freezer has been shared with other training aids or non-HRD materials.

• The team cannot produce documentation confirming that each sample was acquired, packaged, and stored in accordance with TTR-mitigating protocols.

• The dog’s field performance is inconsistent in ways that suggest odor generalization rather than specific stage discrimination.

• Training aids have been stored in non-temperature-controlled environments (sheds, vehicle trunks, outdoor containers) for extended periods.

Reassessment should involve fresh, verified, uncontaminated samples acquired from a trusted source, reintroduced under controlled conditions by a trainer who was not involved in the original imprinting. This is a process that takes time and commitment, but it is the only way to establish true confidence in the dog’s imprinting.

TADD Jars: The Science of Odor Delivery

As awareness of TTR contamination has grown, so has the development of purpose-built containment systems designed specifically to address the shortcomings of mason jars, ammo cans, and improvised storage. Chief among these is the Training Aid Delivery Device, or TADD—a system developed by SciK9 that represents a significant advancement in how training aids are contained, presented, and protected.

What Is a TADD?

A TADD is a glass or plastic containment jar fitted with a specialized membrane assembly in place of a conventional lid. That membrane assembly is the defining feature of the system: it is constructed from a hydrophobic and oleophobic material that allows volatile organic compounds—the scent molecules the dog is trained to detect—to pass through in controlled amounts, while physically blocking liquids, solids, particulate, dog saliva, dirt, and environmental contaminants from entering the jar and contaminating the training aid.

In practical terms, a TADD serves two functions simultaneously that conventional systems cannot: it is both the primary storage container and the training delivery device. When the handler presents the TADD during a training session, the membrane is the active face—odor escapes through it at a controlled rate. When training is complete, the protective lid is replaced, and the same jar goes directly back into secure storage. The training aid is never handled directly, never transferred between containers, and never exposed to the open environment.

NASA Outgassing Compliance: Why Materials Matter

One of the most technically significant aspects of the TADD system is that all components are manufactured to meet NASA low outgassing standards—specifically the ASTM E595 test, developed by NASA to screen materials for use in spacecraft where off-gassing of trace chemicals could contaminate sensitive instruments or degrade air quality in sealed environments.

Applied to canine training, this standard means that the jar itself, the membrane holder, the gasket, and the lid produce negligible VOC emissions of their own. The practical implication is critical: the only scent the dog is learning is the training aid, not the container. Standard glass mason jars, plastic containers, and metal ammo cans all off-gas detectable chemical signatures that, over time and repeated exposure, can become part of what the dog is searching for rather than the decomposition odor itself.

The Membrane System

The TADD membrane assembly consists of three components working in concert:

• A gas-tight, chemical-resistant gasket that creates the primary seal between the membrane holder and the jar opening, preventing bulk leakage around the edges of the membrane.

• The odor-permeable membrane itself—hydrophobic (water-repelling) and oleophobic (oil-repelling)—which allows gas-phase VOCs to diffuse through while blocking liquid and particulate contamination in both directions.

• A custom polypropylene membrane holder with a protective safety grid that prevents puncture or damage to the membrane during field use.

The result is a controlled, one-directional odor delivery system. During training, the handler removes the storage lid, exposing the membrane. The dog accesses the scent through the membrane without ever making contact with the training aid itself. After the session, the lid is replaced, and the system is sealed again.

TADD Jars and TTR Mitigation

From a TTR standpoint, the TADD system addresses each of the three contamination vectors in a fundamentally different way than conventional storage:

• Transfer odor: Because the training aid never leaves the jar and the jar is designed to contain its contents hermetically when closed, the mechanism for transfer odor—sample-to-surface migration—is dramatically reduced. The training aid does not touch the hide, the handler’s tools, or any intermediate surface.

• Trace odor: Because the same jar serves as both storage container and delivery device for the life of the training aid, there is no moment at which the sample is removed, transferred, and replaced, which is precisely when trace odor is left behind. The jar carries only the odor profile of its single, dedicated training aid.

• Residual odor: The NASA outgassing-compliant materials ensure that the jar itself does not accumulate or emit a secondary odor signature. Combined with proper secondary containment in metallized odor barrier bags and stage-separated freezer storage, the TADD system minimizes the background odor environment that dogs learn to associate with the training context.

Important Note: SciK9 specifies that the TADD is intended to be loaded only once, for the life of the training aid. Once the membrane holder is secured onto the jar, repeated removal and reattachment cannot guarantee consistent seal integrity. Load once, store properly, use as designed.

TADD Limitations and Considerations

The TADD system represents a meaningful advancement in training aid management, but it is not a universal solution to TTR contamination and should be understood within the broader storage and handling framework described in this article.

• The TADD is the primary containment layer. SciK9 itself recommends using metallized odor barrier bags as secondary containment even with TADDs, because “odor will always find a way out eventually.” No single containment layer is a complete solution.

• Temperature exposure is a critical vulnerability. TADD components can be damaged or compromised at temperatures above 150°F (65°C), temperatures that are routinely reached inside parked vehicles in warm climates. Never store loaded TADDs in an unventilated vehicle, shed, or outdoor container.

• Stage separation still applies. TADDs do not eliminate the need for physical separation of decomposition stage samples within the storage freezer. Each stage must still be stored in its own section, with TADDs from different stages not commingled in the same secondary containment bag or freezer bin.

• The system requires training aid loading under proper protocols. Loading a TADD using contaminated gloves, in an open environment, or without stage-dedicated tools transfers the same contamination risks as any other loading process. TADD loading should follow the same handling protocols described in the previous sections of this article. The manufacturer recommends nitrile gloves to prevent human odor displacement during loading.

• Blank TADDs serve a training function. The TADD system includes the option of blank (unloaded) jars to use in training as negative hides, allowing handlers to extinguish a dog’s response to the container itself and confirm that alerts are on the training aid odor, not the TADD housing.

Conclusion

The evolution of HRD K9 training has brought us a long way from ammo cans and mason jars in a shed—but only if teams are willing to apply what has been learned. The TTR problem is not theoretical. It was demonstrated in military working dog programs during the Iraq War, it has been observed in search and rescue teams across the country, and it was experienced firsthand at PRSAR over a decade ago.

The solution is not complicated, but it demands discipline: dedicated freezers, meticulous packaging, stage separation, rigorous handling protocols, and honest record-keeping. These are not the hallmarks of an overly cautious program—they are the hallmarks of a professional one.

The families waiting for answers at the end of a search deserve a dog imprinted on what it will actually find, not on what happens to be in the ammo can.

Quick Reference: TTR Mitigation Checklist

Storage & Packaging

• Dedicated freezer — HRD samples only, no shared use

• Triple-barrier packaging: glass jar → sealed bag → rigid outer container

• Stage separation enforced inside freezer

• Temperature maintained at 0°F (-18°C) or below, logged weekly

• Annual freezer deep-clean with enzymatic cleaner

Handling

• Fresh nitrile gloves for each sample and each stage

• Stage-dedicated tools, cleaned between sessions

• Designated preparation area, disposable surfaces

• Never refreeze thawed samples

Training Aids & Hides

• Stage-dedicated hide containers, enzymatic cleaning between sessions

• Never cross-contaminate hides between stages

Documentation

• Sample log, training session log, freezer log, incident log maintained

• Records available to support imprinting verification

Peace River K9 Search and Rescue • HRD K9 Training Series • 2026

What's Wrong with the above picture?

PRSAR is on Venmo!

This QR code offers a quick and easy way to support us on our mission. Please feel free to donate today!

SEARCH TECHNOLOGY AND FORENSIC SCIENCE

LiDAR in Clandestine Grave Recovery and Archaeology:

Technology, Applications, Limitations, and the Future of Remote Sensing in Forensic Search

Peace River K9 Search and Rescue (PRSAR)/Michael Hadsell

Published 2026 • HRD Science and Technology Series

Introduction

In 2018, airborne laser scanning revealed more than 61,000 previously unknown Maya structures beneath the jungle canopy of northern Guatemala—pyramids, highways, reservoirs, agricultural terraces, and fortifications covering 2,100 square kilometers. The survey took a single day to collect. Processing the data took months. The result rewrote the population estimates of Classic Maya civilization and transformed our understanding of one of the ancient world’s great cultures. None of it was visible from the ground or from conventional aerial photography.

The technology that made this possible—Light Detection and Ranging, universally known as LiDAR—has in a remarkably short time become one of the most powerful remote sensing tools available to both archaeologists and forensic search professionals. Its ability to generate centimeter-precise three-dimensional maps of terrain surface, penetrate dense vegetation to reveal the bare earth beneath, and detect subtle elevation changes invisible to the human eye has opened capabilities that were simply not available to previous generations of searchers.

This article explains how LiDAR works, what it can and cannot do. How it is being applied in both forensic grave recovery and archaeological investigation, and where it fits in the broader multi-method toolkit that responsible search and recovery programs must deploy. As with every technology in this series, the goal is not to oversell a capability but to explain it accurately—so that the teams and investigators who might use it understand both its remarkable strengths and its genuine limitations.

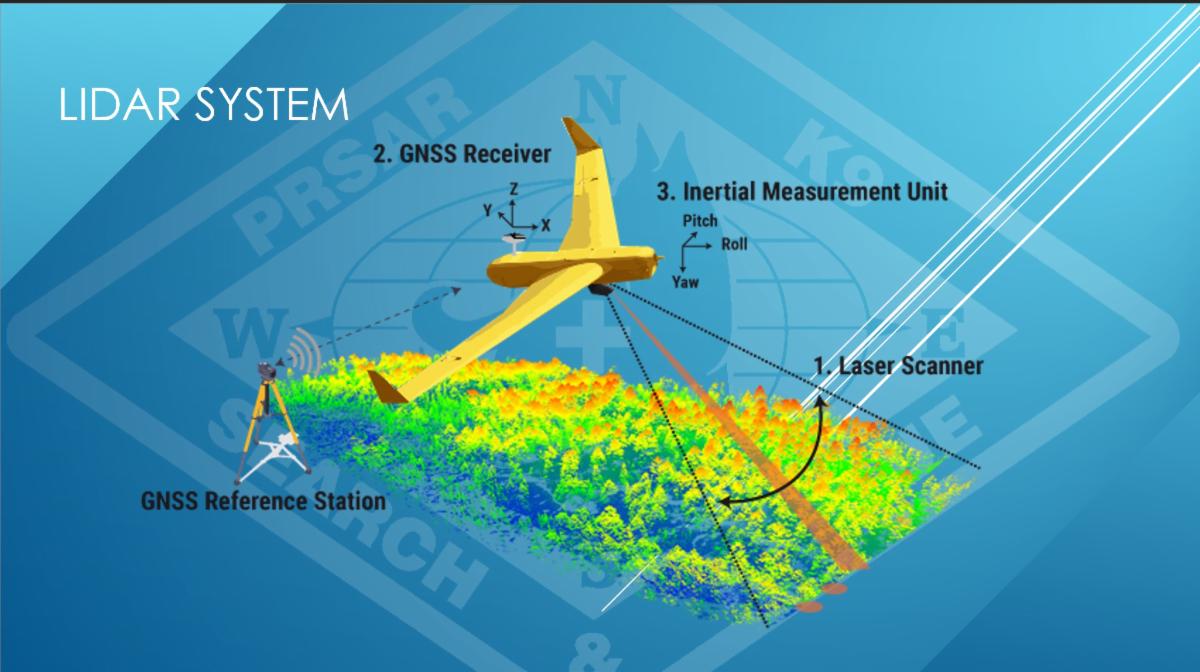

What Is LiDAR? How the Technology Works

LiDAR is an active remote sensing technology that measures distance by emitting rapid pulses of laser light and measuring the time it takes for each pulse to reflect from a surface and return to the sensor. By combining thousands to millions of such measurements per second with precise positioning data—typically from GPS and inertial measurement units—LiDAR systems build extraordinarily detailed three-dimensional point clouds: dense maps of the precise location in space of every surface the laser touches.

The physics are straightforward. Light travels at a known speed. Measuring the round-trip travel time of a laser pulse to a surface and back gives the distance to that surface with millimeter-to-centimeter precision. Multiply this across millions of pulses from a moving platform and the result is a three-dimensional model of everything the laser can reach.

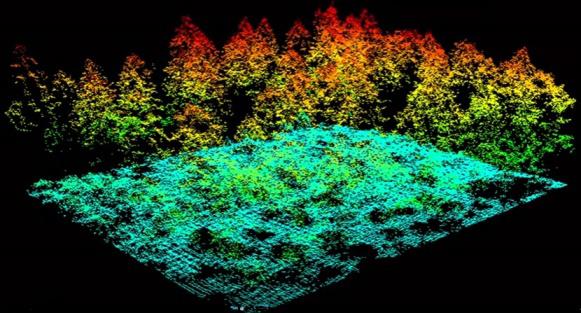

The Key Capability: Penetrating Vegetation

What makes LiDAR transformative in forested and vegetated environments is its ability to record multiple returns from a single pulse. When a laser pulse is fired into a forest, some of the energy reflects from the top of the canopy. Some passes through gaps in the foliage and reflects from understory vegetation. Some reaches the ground and reflects from the bare earth surface. By recording all of these returns and using sophisticated filtering algorithms to separate canopy returns from ground returns, LiDAR systems can produce a bare-earth digital elevation model (DEM)—a precise map of the ground surface beneath the vegetation, as if every tree and shrub had been removed.

This is the capability that revealed the Maya civilization in Guatemala and has since transformed landscape archaeology globally. Ground surveys, conventional aerial photography, and satellite imagery are all defeated by dense canopy. LiDAR is not.

Types of LiDAR Systems

LiDAR systems used in forensic and archaeological applications fall into three broad categories:

• Airborne LiDAR (ALS — Aerial Laser Scanning): Mounted on fixed-wing aircraft or helicopters, covering large areas rapidly. The platform used for the Maya surveys and most large-scale archaeological LiDAR campaigns. Coverage ranges from hundreds to thousands of square kilometers per mission. Point density is lower than terrestrial systems but more than sufficient for landscape-scale feature detection.

• UAV-Mounted LiDAR (UAS LiDAR): LiDAR sensors mounted on unmanned aerial vehicles, which can fly at lower altitudes and achieve higher point densities than manned aircraft. Increasingly affordable, highly maneuverable, and deployable in locations inaccessible to conventional aircraft. The platform used in the George Mason University forensic grave detection research evaluated by the NIJ in 2024, and in the long-term Colombian burial monitoring studies. Sensors such as the DJI Zenmuse L2 on the Matrice 350 RTK have brought high-quality UAV LiDAR within reach of search and recovery programs that previously could not access the technology.

• Terrestrial LiDAR (TLS — Terrestrial Laser Scanning): Tripod-mounted scanners that capture extremely dense, high-resolution point clouds of a fixed scene. Used for detailed documentation of specific sites rather than area-wide survey. The platform used in the foundational Corcoran et al. (2018) study at the University of Tennessee Body Farm, which demonstrated LiDAR’s ability to detect and quantify the subtle surface elevation changes produced by decomposing buried human remains.

Key Principle:

LiDAR does not see through the ground. It is a surface technology. Its power lies in detecting and precisely measuring what is happening at the ground surface—elevation changes, subtle depressions, micro-topographic anomalies—that are invisible to human observers on the ground but measurable with centimeter precision from above.

LiDAR in Forensic Grave Detection: The Science

When a clandestine grave is dug and a body is buried, a sequence of physical changes begins at the surface that LiDAR is uniquely positioned to detect and quantify over time.

The Mounding and Subsidence Cycle

At the time of burial, the displaced soil—the backfill—is replaced above the grave shaft in a disturbed, loosely packed state. This produces an initial elevation increase: the grave surface is slightly higher than the surrounding undisturbed ground. Over time, as the body decomposes and its volume decreases, and as the backfill settles and compacts under gravity and precipitation, the grave surface subsides. The result is a depression—often subtle, sometimes covered by leaf litter or vegetation regrowth—that represents a net elevation loss at the grave location relative to surrounding terrain.

This is the signature that LiDAR detects. The Corcoran et al. (2018) study at the University of Tennessee Anthropological Research Facility—the Body Farm—is the foundational peer-reviewed demonstration of this capability. Three human graves of varying sizes, one control pit, and surrounding undisturbed ground were scanned four times over a 21-month period using a tripod-mounted terrestrial laser scanner. The results were clear: all disturbed surfaces exhibited measurable elevation changes consistent with the mounding and subsidence cycle. The changes were localized precisely at the grave boundaries, distinguishing them from surrounding undisturbed ground. Crucially, these changes were detectable even when the surface was covered by grass, leaf litter, and other debris—materials that would defeat visual inspection.

Detection of Surface Remains Under Canopy

A 2025 study published in Forensic Science International evaluated the ability of UAV-mounted LiDAR to detect a concealed human body on a surface within a densely vegetated search area. Using two LiDAR sensors in several operational modes, and quantifying canopy density using dendrometric methods and the Normalized Difference Vegetation Index (NDVI), the study demonstrated that airborne LiDAR sensors can capture body signatures in areas with dense vegetation—providing a proof of concept for LiDAR-assisted missing person searches in forested environments where ground search is difficult or impossible.

The Three-Step Protocol: Geographic Profiling, LiDAR, Geophysics

The most operationally mature framework for using LiDAR in forensic grave detection is the three-step protocol described in the peer-reviewed literature and adopted in practice by forensic search programs:

• Step 1 — Geographic profiling: Use available intelligence—suspect behavior, known travel routes, landscape features, historical land use—to define a geographic search probability area. This narrows the search from a region to a zone.

• Step 2 — LiDAR survey: Conduct an airborne or UAV LiDAR survey of the probability area to generate a high-resolution bare-earth DEM. Analyze the DEM for micro-topographic anomalies consistent with grave features: localized depressions, subtle mounding, areas of differential vegetation response, or surface disturbance patterns. This narrows the zone to specific targets.

• Step 3 — Near-surface geophysics: Apply GPR, electrical resistivity tomography, or other subsurface methods to the LiDAR-identified targets to further characterize what lies below the surface. This narrows specific targets to confirmed excavation candidates.

This protocol is explicitly recommended in the peer-reviewed literature as the appropriate integration of LiDAR with complementary methods, and reflects the lesson that no single technology is sufficient. LiDAR identifies surface anomalies. Geophysics characterizes subsurface conditions. Cadaver dogs provide independent chemical confirmation. Excavation by a qualified forensic anthropologist is the only confirmation.

The George Mason University / NIJ Research Program

In 2024, the NIJ Forensic Technology Center of Excellence hosted a webinar presenting the results of a formal technology evaluation conducted by George Mason University—the most recent and most directly policy-relevant evaluation of LiDAR for forensic grave detection in the United States. GMU researchers deployed LiDAR mounted on a DJI M300 UAV—with Real Time Kinematic (RTK) GPS positioning for precision—over simulated grave sites at GMU’s outdoor forensic research facility. The sites were scanned repeatedly over several months alongside GPR surveys, with the goal of understanding the complementary advantages of each technology.

Key findings: LiDAR excelled at detecting and monitoring surface-level changes—mounding, subsidence, and vegetation response—while GPR provided subsurface characterization that LiDAR cannot. The two technologies were found to be complementary rather than competitive, with integration of their datasets providing substantially more information than either alone. This conclusion aligns with the broader consensus in the forensic geophysics literature: the future of forensic grave detection is multi-sensor, multi-method, and data-integrated.

Long-Term Monitoring: The Colombia Studies

Among the most rigorous long-term evaluations of LiDAR and complementary technologies for grave detection are a series of studies conducted at controlled burial sites in Colombia, South America—a country with an estimated 121,000 missing persons and victims of forced disappearances. The monitoring program created twelve simulated clandestine graves at sites in savannah and rainforest environments, buried at depths of 0.5 to 1.2 meters, and monitored them with UAV, GPR, and electrical resistivity tomography over four to eight years. The results confirmed that UAV-derived data can detect likely burial positions, and that geophysical methods can resolve clandestine burials over extended monitoring periods—providing critical evidence for the value of these technologies in mass atrocity investigation and human rights contexts.

LiDAR in Archaeology: Transforming the Field

While the forensic applications of LiDAR are significant and growing, the archaeological applications have been nothing short of revolutionary. The technology has fundamentally changed what archaeologists can know, how quickly they can know it, and at what scale they can work.

The Maya Revolution: Guatemala 2018

The landmark event in LiDAR archaeology was the 2018 PACUNAM LiDAR Initiative survey of 2,144 square kilometers of the Petén region of northern Guatemala—the heartland of Classic Maya civilization. The survey identified more than 61,000 previously unknown structures: pyramids, residential complexes, agricultural terraces, raised field systems, causeways, reservoirs, and defensive fortifications. The scale of the Maya urban landscape revealed by LiDAR was far larger than any previous estimate—comparable in scale and complexity, as the researchers noted, to ancient civilizations of China or Southeast Asia.

The significance of this discovery extended beyond the number of structures. LiDAR revealed a fundamentally different Maya world—not a collection of isolated ceremonial centers surrounded by sparse agricultural communities, but a densely interconnected urban landscape in which millions of people lived, farmed, traded, and built infrastructure across the jungle. The revision of Maya population estimates was dramatic. The implications for understanding the collapse of Classic Maya civilization—long debated in terms of environmental degradation and resource pressure—became both more urgent and more nuanced.

The Maya Surveys Continue: Valeriana and Beyond

The Guatemala survey was the beginning rather than the conclusion. LiDAR surveys across Mesoamerica have continued to produce major discoveries. In 2024, researchers analyzing existing LiDAR data originally collected for environmental monitoring—not archaeological survey—identified Valeriana, a massive previously unknown Maya city in Mexico estimated to be among the largest ever discovered, potentially second in scale only to Calakmul. The discovery was made not by a targeted archaeological expedition but by repurposing legacy data from forestry and climate studies—demonstrating that the archive of existing LiDAR data, collected for non-archaeological purposes across tropical regions worldwide, represents an extraordinary untapped resource for future archaeological discovery.

In 2023, a LiDAR survey of Calakmul itself uncovered a hidden network of elevated causeways connecting political and religious centers. A Tulane University-led study using LiDAR across 2,500 square kilometers identified 110,000 buildings in the central Maya lowlands and developed a method to distinguish elite masonry-vaulted structures from non-elite buildings with a 93% success rate—enabling the first large-scale spatial analysis of wealth and social hierarchy across the Maya landscape.

Beyond Maya: Global Archaeological Applications

The impact of LiDAR on archaeology extends far beyond Mesoamerica:

• In Cambodia, LiDAR surveys of the Angkor region revealed that the medieval Khmer city of Mahendraparvata—the precursor to Angkor Wat—was far larger than previously known, with a formal urban grid extending across the Phnom Kulen plateau. The discovery overturned decades of scholarship about Khmer urban development.

• In the United Kingdom, LiDAR-derived terrain models have identified hundreds of previously unknown prehistoric and Roman-era features—earthworks, field systems, ring ditches, and settlement patterns—beneath pastureland and cultivation that had obscured them from ground survey.

• In Syria, terrestrial LiDAR documented the standing ruins of Palmyra before and after their partial destruction by ISIS in 2015, creating a millimeter-precise record that now serves as a blueprint for potential reconstruction—demonstrating LiDAR’s role in cultural heritage preservation as well as discovery.

• In the United States, LiDAR surveys of Civil War battlefield sites and historical burial grounds have located unmarked graves, previously unknown earthworks, and evidence of engagements whose locations were debated by historians. The 2024 drone GPR survey of a Kentucky farm site that searched for the remains of 22 Black Union soldiers from the Fifth U.S. Colored Cavalry combined both LiDAR terrain analysis and ground-penetrating radar in exactly the multi-method integration framework described earlier in this article.

• In forensic human rights contexts, LiDAR has been applied to the search for mass graves from conflicts in Colombia, Guatemala, Bosnia, and elsewhere—providing search teams with the ability to survey large, dangerous, or difficult terrain areas without requiring investigators to be physically present at every square meter.

What LiDAR Cannot Do: The Limitations

As with every technology in this series, an honest account of what LiDAR cannot do is as important as an account of what it can. LiDAR is not a universal solution. It has genuine limitations that every operator and investigator must understand.

LiDAR Does Not See Beneath the Ground

This is the most fundamental limitation and the one most frequently misunderstood by non-specialists. LiDAR is a surface technology. Its laser pulses reflect from surfaces—ground, vegetation, structures—and do not penetrate soil. It cannot detect a buried body, a buried grave shaft, or any subsurface feature directly. What it detects is the effect of subsurface events on the surface: the mounding and subsidence produced by decomposition, the vegetation anomalies produced by altered soil chemistry, the micro-topographic patterns left by human activity.

This means LiDAR is always indirect in its forensic application. It identifies surface anomalies that may be consistent with grave features. It does not confirm burial. That confirmation requires subsurface investigation by GPR, soil probing, cadaver dogs, or excavation.

Temporal Limitations: The Window of Detection

The surface elevation changes produced by a clandestine grave are not permanent. In the initial weeks after burial, the backfill mound may be clearly detectable. As decomposition proceeds and backfill settles, the surface change becomes subtler. In established vegetation with root systems that fill and stabilize disturbed soil, the elevation signature may diminish to the point of being undetectable—particularly for older burials where decades of surface processes have erased the initial disturbance.

The Corcoran et al. study monitored graves over 21 months and found consistent detectability over that period. Long-term detectability is less well characterized and will vary substantially with soil type, climate, vegetation, and burial depth. LiDAR is more reliable for relatively recent disturbances than for historic burials where surface evidence has had decades to equilibrate.

Vegetation Density and Canopy Closure

While LiDAR’s ability to penetrate vegetation is one of its defining advantages, that penetration is not unlimited. In very dense canopy—closed tropical forest where the ground point density returned by the laser may be as low as 0.26% of the total returns, as documented in the 2025 UAV LiDAR forensic study—the bare-earth model is built from very sparse ground data. Subtle surface features may be missed. The quality of the DEM degrades with canopy density, and in some environments, ground returns may be insufficient for reliable surface modeling.

Data processing techniques are improving continuously, and integration of complementary sensors—thermographic, multispectral, hyperspectral—can compensate for some of these limitations. But operators must understand the point density of their ground returns and the consequent resolution limits of their DEMs before making interpretive claims about what the LiDAR data does or does not show.

False Positives: Not Every Anomaly Is a Grave

This is the lesson of the GPR article in this series, applied equally to LiDAR. A surface depression detected by LiDAR may be a grave. It may also be a tree stump removal, an animal burrow, a historic agricultural feature, a natural soil drainage pattern, a water main access point, or any of dozens of other landscape features that produce localized elevation changes. As the peer-reviewed literature explicitly notes, not all elevation changes identified by LiDAR will be from a grave, and all must be further investigated with other methods before any interpretation is warranted.

The three-step protocol—geographic profiling, then LiDAR, then geophysics, then cadaver dogs, then excavation—exists precisely because LiDAR anomalies require verification. LiDAR is the second filter in a multi-stage process of progressive confirmation. It is not the last word.

Operator Training and Data Interpretation

Generating LiDAR data and interpreting LiDAR data are different skills. The point clouds and derived DEMs produced by a LiDAR survey must be processed, filtered, and analyzed by someone with training in geospatial analysis and an understanding of the specific forensic or archaeological context. A person who can fly a drone with a LiDAR sensor is not necessarily qualified to interpret the resulting data for forensic grave detection. Teams deploying LiDAR for forensic purposes should ensure that data processing and interpretation is performed by or in consultation with a qualified forensic geophysicist or remote sensing specialist.

LiDAR in the Multi-Method Framework: Where It Belongs

The consistent message from the peer-reviewed literature—and from the operational experience of search and recovery programs that have deployed LiDAR in the field—is that LiDAR is most powerful not as a standalone tool but as a component of a carefully sequenced multi-method investigation. Its proper place in that sequence is as a wide-area screening technology that reduces a large search area to a manageable set of anomaly targets for further investigation.

The Recommended Integration Sequence for Forensic Grave Search:

1. Intelligence and geographic profiling — define the search probability area

2. LiDAR survey — identify micro-topographic anomalies across the probability area

3. Cadaver dog survey — independent chemical confirmation at anomaly locations

4. GPR or electrical resistivity survey — subsurface characterization at confirmed anomaly locations

5. Soil probing and core sampling — physical assessment of subsurface density and chemistry

6. Forensic excavation — conducted by a qualified forensic anthropologist using stratigraphic methods No step is optional. Each step reduces uncertainty and focuses investigative resources. Only Step 6 confirms a burial.

This framework represents the current state of best practice in forensic search science. LiDAR is the wide-area rapid screening tool. GPR is the subsurface characterization tool. Cadaver dogs are the independent biological chemical detection system. Excavation is the confirmation. Each technology contributes what the others cannot provide.

PRSAR Position: LiDAR in Search and Recovery Operations

Peace River Search and Rescue recognizes LiDAR as a significant and rapidly developing capability for both forensic grave detection and archaeological survey. As UAV-mounted LiDAR systems become increasingly accessible in terms of both cost and operational simplicity, the technology is moving from specialized research programs into the operational toolkit of professional search and recovery organizations.

PRSAR endorses the following principles for the responsible use of LiDAR in search and recovery contexts:

• LiDAR is a qualifying technology. A LiDAR anomaly is a target for further investigation, not a confirmed finding. Teams using LiDAR must communicate this distinction clearly to law enforcement partners, families, and any other stakeholders.

• Integration is mandatory. LiDAR should not be deployed in isolation. Its results must be followed by cadaver dog survey, GPR or other subsurface investigation, and, where warranted, forensic excavation by a qualified specialist.

• Operator training must include interpretation. Teams should not deploy LiDAR without ensuring that the resulting data will be processed and interpreted by someone with appropriate geospatial training, not merely someone competent to operate the drone.

• LiDAR data should be archived. Point cloud data, derived DEMs, and all processing parameters should be documented and preserved as potential evidence. Re-analysis of archived LiDAR data—as demonstrated by the Valeriana discovery from repurposed environmental survey data—can yield findings not anticipated at the time of original collection.

• The technology is evolving rapidly. Teams should monitor current research, particularly regarding integration of LiDAR with thermal, multispectral, and hyperspectral sensors, and update their protocols as the evidence base develops.

Conclusion

LiDAR has done two things in a remarkably short period of time. In archaeology, it has revealed civilizations—literally. Tens of thousands of structures, entire urban landscapes, the evidence of populations and engineering works that were invisible for centuries beneath forest canopy, now mapped with centimeter precision from the air in a single day. The transformation of Maya archaeology is the most dramatic example, but it is one instance of a global change in what archaeological survey can accomplish.

In forensic search and recovery, LiDAR has provided something that investigators have long needed: a way to screen large areas of terrain for micro-topographic anomalies that may indicate the location of clandestine graves—rapidly, non-invasively, and in environments that ground survey cannot easily penetrate. The Corcoran et al. work at the Body Farm established the scientific basis. The GMU-NIJ research program has moved the technology toward operational deployment. The Colombia long-term monitoring studies have demonstrated its sustained value in real-world mass atrocity investigations.

What LiDAR cannot do is equally important to understand. It does not see underground. Its surface anomalies require verification. Its data requires qualified interpretation. And it is never, under any circumstances, the last word on whether a grave is present. That word belongs to excavation alone.

Used correctly—as the first wide-area screen in a multi-method, multi-stage investigation—LiDAR is one of the most powerful tools available to the forensic search community today. The teams that understand both its capabilities and its limits will use it well. And the families waiting for answers deserve nothing less.

Introduction

Most people understand that bones are the durable framework of the body—the structural material that outlasts soft tissue by decades or even centuries after death. What is far less widely appreciated is that bone is not merely a passive structural material. It is an active, electrically responsive substance. Bone is piezoelectric: it generates an electric field when pressure is applied to it, and that property does not disappear at death. It persists in dry bone, in buried bone, and in bone submerged in water.

This single fact has profound implications—not only for our understanding of bone biology, but for the science of locating human remains. It provides a physical basis for detection technologies that can find skeletal material at distances that would have seemed implausible a generation ago, and it raises intriguing questions about whether that same electromagnetic signature influences how cadaver dogs search.

This article explains piezoelectricity from first principles, describes how it manifests in bone across all of its physical states, and examines its practical applications in human remains detection—including experimental work conducted by this author using buried human bone and magnetometric scanning.

What Is Piezoelectricity?

Piezoelectricity is the property by which certain materials generate an electric charge in response to applied mechanical stress. The word itself is derived from the Ancient Greek πιέζω (piézō), meaning “to squeeze or press,” and ἤλεκτρον (electron), meaning “amber”—a reference to the ancient observation that rubbed amber attracts small objects, one of the earliest recorded encounters with electrical phenomena.

The effect arises from the linear electromechanical interaction between the mechanical and electrical states of crystalline materials that lack inversion symmetry—that is, materials whose internal crystal structure is not identical when viewed from opposite directions. When mechanical force deforms such a crystal, the asymmetry causes a net displacement of electrical charge within the material, producing a measurable voltage across its surfaces.

Piezoelectricity was formally discovered and characterized by Pierre Curie and his brother Jacques Curie in 1880, during systematic pressure studies using quartz. Their work established both the direct piezoelectric effect (mechanical stress produces electric charge) and, soon after, the converse effect: applying an electric field to a piezoelectric material causes it to mechanically deform.

The Reversible Nature of the Effect

The reversibility of piezoelectricity is what makes it so broadly useful in technology. The same material property that generates electricity from pressure can also convert electricity into precise mechanical movement. This bidirectional relationship is exploited across a remarkable range of applications:

• Ultrasound imaging and therapy: Electrical pulses applied to piezoelectric transducers generate the high-frequency mechanical waves used in medical imaging and therapeutic tissue treatment.

• Precision actuators and sensors: Piezoelectric elements convert minute electrical signals into extremely precise mechanical displacements, and vice versa, enabling the positioning systems in atomic force microscopes, inkjet printers, and precision machining tools.

• Energy harvesting: Piezoelectric materials embedded in flooring, roadways, or wearable devices can convert ambient mechanical vibration into usable electrical power.

• Sonar and acoustic sensing: The same principle Curie identified in quartz underlies the sonar systems used in submarines, fish finders, and structural integrity testing.

Lead zirconate titanate (PZT) is among the most studied and widely used piezoelectric materials. When its static structure is mechanically deformed by approximately 0.1% of its original dimension, it generates a measurable voltage. Conversely, when an external electric field is applied, it deforms by approximately the same proportion. This characteristic is shared, in varying degrees, by a wide range of natural and synthetic materials—including bone.

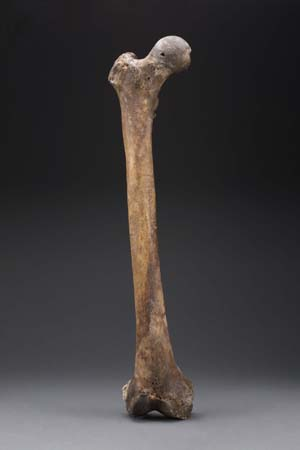

Bone as a Piezoelectric Material

Bone is not a simple calcium deposit. It is a composite biological material with a highly organized hierarchical structure. At the nanoscale, bone consists primarily of two components: collagen—a fibrous protein that provides tensile strength and flexibility—and hydroxyapatite, a crystalline calcium phosphate mineral with the chemical formula Ca₅(PO₄)₃OH. It is the crystalline hydroxyapatite component that gives bone its piezoelectric character.

The piezoelectric properties of bone have been recognized in the scientific literature since the mid-twentieth century and have been extensively studied in the context of bone remodeling—the process by which bone continuously rebuilds itself in response to mechanical loading. When a bone is subjected to compressive stress (as it is with every step you take), the resulting piezoelectric charge difference between compressed and stretched regions is now understood to be one of the signals that guides osteoblast activity—the cellular mechanism by which new bone is deposited.

Piezoelectricity Across All States of Bone

One of the most important features of bone piezoelectricity for forensic and search applications is its persistence across the different physical states that bone passes through after death. Regardless of its form, bone retains its piezoelectric properties:

• Fresh bone (Ca₅(PO₄)₃OH): In its natural state, bone contains living cells, marrow, water, and organic matrix alongside the hydroxyapatite crystal lattice. The piezoelectric effect is present but, in a living individual, is electrically masked by the much larger bioelectric potentials generated by nerve and muscle cell activity—the movement of ions across cell membranes that creates the electrical potential differences central to all biological signaling.

• Dry bone (Ca₃Na(PO₄)₃): As bone desiccates after death, water and organic components diminish, but the hydroxyapatite crystalline structure remains intact, and with it the piezoelectric response to mechanical stress.

• Ash (Ca₃(PO₄)₃): Even bone that has been exposed to high heat retains a calcium phosphate crystalline structure. Piezoelectric properties, while altered in degree, are not eliminated.

This persistence means that a bone lying on the surface of the ground, buried under soil, or submerged in water is, in every case, under continuous mechanical pressure—from the weight of soil, from hydrostatic pressure, or simply from its own mass against the ground—and is therefore continuously generating a low-level electric field.

The Post-Mortem Window: When Bone Becomes Detectable

In a living person, the piezoelectric potential of bone is effectively hidden. The bioelectric activity of the nervous system and muscles—measured in millivolts across cell membranes throughout the body—overwhelms and masks the comparatively subtle piezoelectric signal of the skeleton beneath.

After death, ion transport across cell membranes ceases as cellular energy reserves are exhausted. The dissipation of this bioelectric “noise” takes approximately two hours. Once that window has passed, the piezoelectric signal of the bone—no longer masked—becomes the dominant electrical output of the skeletal material. From this point forward, it is measurable, persistent, and, as subsequent research has shown, detectable at considerable distance.

Key Principle:

The roughly two-hour post-mortem dissipation of bioelectric potential is the threshold after which bone piezoelectricity becomes the dominant electrical signal of skeletal remains. This is not merely theoretical—it has practical implications for the timing and methodology of searches involving recently deceased individuals.

From Electric Field to Electromagnetic Field

The relationship between electricity and magnetism is one of the foundational unities of physics. A changing electric field generates a magnetic field. A changing magnetic field generates an electric field. These two phenomena are not separate forces but two aspects of a single electromagnetic interaction, described mathematically by Maxwell’s equations.

This relationship is directly relevant to bone piezoelectricity. When a buried bone produces a piezoelectric electric field in response to pressure, that field—to the extent that it varies over time due to soil movement, settling, groundwater, seismic micro-vibration, or environmental loading—generates a corresponding magnetic field. The result is not merely an electric field localized at the bone surface, but an electromagnetic field that extends outward from the bone into the surrounding medium.

Experimental Confirmation: Buried Femur Study

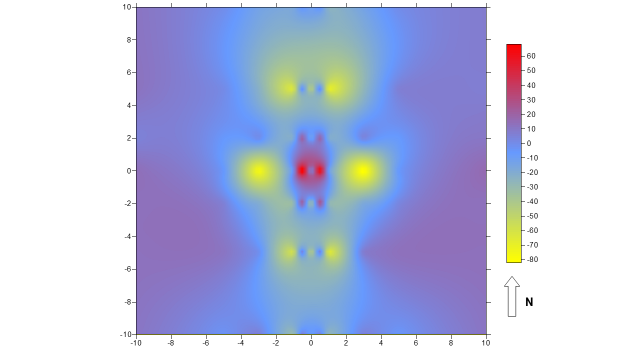

To investigate the magnitude and spatial character of this electromagnetic effect, the author conducted a controlled burial experiment using a human femur. The femur was buried at a depth of two feet in loamy, damp soil—conditions chosen to be representative of typical shallow burial scenarios encountered in search operations. A phased micro magnetometer was used to scan the burial area in a systematic grid pattern. Control areas with non-piezoelectric materials buried at equivalent depth were scanned under identical conditions for comparison.

The results revealed several significant findings that challenge earlier assumptions about the electromagnetic signature of buried bone:

• The shape of the electromagnetic field produced by the femur did not precisely replicate the physical geometry of the bone. Rather than a signal centered uniformly along the bone’s length, the field diverged outward and upward from the bone in a cone-shaped plume extending toward the surface.

• The center of the bone exhibited opposite field polarity compared to the ends of the bone. This bipolar character—analogous to a dipole antenna—is precisely why standard dipole antenna detection techniques are effective for locating bone at a distance.

• The signal attenuation pattern did not conform to the inverse-square law (1/r²) that governs many forms of radiation and signal degradation with distance. This is a particularly significant finding, as it suggests that the electromagnetic field of buried bone propagates through soil more persistently than would be predicted by conventional signal decay models.

• Placing magnets at various locations along the bone altered the response of dipole antennae in predictable ways, providing additional confirmation that the detected signal is a genuine electromagnetic phenomenon generated by the bone itself, not an artifact of the measurement system.

Simple Confirmation: The Voltmeter Experiment

The reality of bone piezoelectricity does not require sophisticated instrumentation to demonstrate. In a simple bench experiment, voltmeter leads attached to a bone sample confirmed that the mechanical pressure of blowing a stream of air across the bone surface—a force so small it would be imperceptible to touch—was sufficient to produce up to a 2.0 millivolt increase in the electric field output of the bone. This result illustrates both the sensitivity of the piezoelectric response and the very low threshold of mechanical stimulus required to produce a measurable electrical output.

Detection Applications: Finding Bone at Distance

The combination of the piezoelectric properties of bone and the resulting electromagnetic field it generates provides a physical basis for a detection technology that operates on entirely different principles from chemical scent detection or ground-penetrating radar. Using standard dipole antenna techniques—operating in either in-line or offset modes—it has been demonstrated that skeletal elements can be detected at distances exceeding 480 meters (approximately 1,600 feet).

This is not a theoretical projection. The technology was applied in a forensic investigation in the State of Georgia, USA. In the case of Georgia v. Ryan Duke, dipole antenna detection techniques were used to detect and locate skeletal elements. The admissibility of this detection method was ruled upon by the Irwin County Criminal Court in May 2022, where the court found the evidence admissible—a meaningful legal recognition of the scientific validity of electromagnetic bone detection.

Why Dipole Antenna Techniques Work

The reason dipole antenna methods are well-matched to buried bone detection is precisely the bipolar electromagnetic character of the bone’s field revealed in the buried femur experiments. A dipole antenna is optimized to detect fields with opposite polarity at two points—exactly the field geometry that bone produces, with opposite polarity at the center versus the ends. The antenna’s response pattern aligns naturally with the structure of the bone’s electromagnetic output.

The cone-shaped upward plume of the field, and the departure from inverse-square attenuation, are also operationally favorable characteristics. They mean that the detectable signal from buried bone is stronger at the surface than would be predicted by simple distance-based decay models, extending the effective detection range and making surface-level scanning more practical.

Implications for Cadaver Dog Searching

The electromagnetic field generated by piezoelectric bone raises a question that has not yet been fully investigated but deserves serious attention from the HRD K9 community: does this field influence how cadaver dogs search?

Canine olfaction—the mechanism by which HRD dogs detect decomposition odors—is extraordinarily sensitive. But dogs do not navigate by scent alone. Research has established that dogs are sensitive to magnetic fields. Studies have documented that dogs preferentially orient their body axis along the Earth’s magnetic field axis during certain behaviors, and that this magnetic sensitivity appears to involve magnetoreceptor mechanisms that are not yet fully characterized.

The electromagnetic field generated by buried bone—particularly given its cone-shaped upward plume, its resistance to inverse-square attenuation, and its persistent character—represents a potential additional signal channel available to searching dogs beyond chemical VOC detection. If dogs can sense magnetic field perturbations of the magnitude produced by buried bone, then a searching dog approaching a burial site might be responding to two distinct signals simultaneously: the VOC plume rising from decomposing material, and the electromagnetic disturbance produced by the piezoelectric bone beneath.

The experimental finding that placing magnets along the bone alters the response of dipole antennae provides indirect evidence that the electromagnetic field is of sufficient character to interact with external magnetic sources—and by extension, potentially with a magnetically sensitive biological detector in the form of a searching dog.

An Open Research Question:

Whether HRD dogs respond behaviorally to the electromagnetic field of piezoelectric bone—independently of or in addition to scent—remains an area where controlled experimental work could yield significant insights. If confirmed, it would suggest that the “search picture” for a cadaver dog is richer than a purely olfactory model implies.

Conclusion

Bone is not simply an inert structural remnant. It is a piezoelectric material—a crystalline substance that generates an electric field in response to mechanical pressure, and that generates an electromagnetic field as a consequence of that electrical activity. This property is intrinsic to the hydroxyapatite crystal lattice of bone and persists through all post-mortem states: fresh, dry, and calcined.

The practical consequences of this are significant and still being fully explored. Dipole antenna detection techniques, grounded in the electromagnetic signature of piezoelectric bone, have demonstrated detection ranges exceeding 480 meters and have produced evidence ruled admissible in criminal court. The departure of the bone’s electromagnetic field from inverse-square attenuation suggests that the signal propagates through soil more persistently than simpler models would predict—a finding with immediate implications for search planning and detection methodology.

For the HRD K9 community, piezoelectricity of bone adds a dimension to the search environment that is only beginning to be understood. The scent picture has long been our primary mental model for what a dog “sees” when working a search area. The electromagnetic picture may be equally real, and equally deserving of our attention.

References

[1] Curie, J. & Curie, P. (1880). Développement par compression de l’électricité polaire dans les cristaux hémièdres à faces inclinées. Bulletin de la Société Minéralogique de France, 3, 90–93.

[2] Fukada, E., & Yasuda, I. (1957). On the Piezoelectric Effect of Bone. Journal of the Physical Society of Japan, 12(10), 1158–1162.

[3] Lippmann, G. (1881). Principe de la conservation de l’électricité, ou second principe de la théorie des phénomènes électriques. Journal de Physique Théorique et Appliquée, 10(1), 381–394.

[4] πιέζω. Liddell, H.G. & Scott, R. A Greek–English Lexicon. Oxford University Press.

[5] Rinaldi, A., & Placidi, L. (2014). A microscale second gradient approximation of the damage parameter of quasi-brittle heterogeneous lattices. ZAMM, 94(10), 862–877.

[6] Jaffe, B., Cook, W.R., & Jaffe, H. (1971). Piezoelectric Ceramics. Academic Press.

[7] Bassett, C.A.L., & Becker, R.O. (1962). Generation of electric potentials by bone in response to mechanical stress. Science, 137(3535), 1063–1064.

[8] Fukada, E. (1995). History and recent progress in piezoelectric polymers. IEEE Transactions on Ultrasonics, Ferroelectrics, and Frequency Control, 47(6), 1277–1290.

[9] Williams, W.S., & Breger, L. (1975). Piezoelectricity in tendon and bone. Journal of Biomechanics, 8(6), 407–413.

[10] Author’s experimental data and manuscript. Irwin County Criminal Court, State of Georgia v. Ryan Duke, May 2022 (evidence ruled admissible).

Peace River K9 Search and Rescue • HRD Science and Technology Series • 2026

Thank You or Your Support!

Phone: 941-548-7560

Introduction

What Ground-Penetrating Radar Actually Does

What Else Produces GPR Anomalies

A Case Study in Misinterpretation: Kamloops, 2021

What the Evidence Actually Showed

The Root Cause: Conflating Anomaly with Evidence

Technical Limitations of GPR in Forensic Contexts

Soil Conditions

Vegetation and Surface Conditions

Operator Expertise and Interpretive Standards

Time Dependence

The Verification Protocol: From Anomaly to Evidence

Step 1: Site Assessment Before the Survey

Step 2: GPR Survey by Qualified Operator

Step 3: Cadaver Dog Verification

Step 4: Soil Probing and Core Sampling

Step 5: Forensic Excavation

A Note on University Forensic Curricula

PRSAR Policy: Ground-Penetrating Radar in Search Operations

Conclusion

Suggested Reading

The Primary Reference: Grave Error

Ground-Penetrating Radar: The Technology Itself

Forensic Geophysics and Geoforensics

Forensic GPR Performance Research

Forensic Archaeology and Stratigraphic Excavation

Online Resources

Introduction

The TTR Problem: Transfer, Trace, and Residual Odor

Transfer Odor

Trace Odor

Residual Odor

The PRSAR Discovery: When Good Intentions Create Bad Science

Proper Storage Protocols for Human Remains Training Aids

1. Packaging: The Primary Barrier

2. Freezer Specifications and Dedicated Storage

3. Sample Acquisition and Handling Protocols

4. Thawing and Training Aid Preparation

5. Training Hide Integrity

Record-Keeping and Quality Control

When to Reassess Imprinting

TADD Jars: The Science of Odor Delivery

What Is a TADD?

NASA Outgassing Compliance: Why Materials Matter

The Membrane System

TADD Jars and TTR Mitigation

TADD Limitations and Considerations

Suggested Reading and Reference List

Foundational Books

Peer-Reviewed Research Articles

Online and Organizational Resources

Conclusion

Quick Reference: TTR Mitigation Checklist

Introduction

What Is LiDAR? How the Technology Works

The Key Capability: Penetrating Vegetation

Types of LiDAR Systems

LiDAR in Forensic Grave Detection: The Science

The Mounding and Subsidence Cycle

Detection of Surface Remains Under Canopy

The Three-Step Protocol: Geographic Profiling, LiDAR, Geophysics

The George Mason University / NIJ Research Program

Long-Term Monitoring: The Colombia Studies

LiDAR in Archaeology: Transforming the Field

The Maya Revolution: Guatemala 2018

The Maya Surveys Continue: Valeriana and Beyond

Beyond Maya: Global Archaeological Applications

What LiDAR Cannot Do: The Limitations

LiDAR Does Not See Beneath the Ground

Temporal Limitations: The Window of Detection

Vegetation Density and Canopy Closure

False Positives: Not Every Anomaly Is a Grave

Operator Training and Data Interpretation

LiDAR in the Multi-Method Framework: Where It Belongs

PRSAR Position: LiDAR in Search and Recovery Operations

Conclusion

Suggested Reading

Forensic LiDAR: Grave Detection

Archaeological LiDAR

Technical References: LiDAR Science and Processing
