250-350 RX 2 Stroke
Engine: Both engine capacities received a completely new, purpose-built engine. The 350 RX was designed to obtain the greatest linear power delivery and give riders the option to exploit the great power available when needed, while the 250 RX can count on explosive performance, ready to compete in races under all conditions.
» Head: The first noticeable difference when looking at the new engines is certainly the dual-spark-plug head on the RX 350 2Str, while the 250cc still relies on a classic single spark plug. This differentiates the two motorcycles’ character even further, with the 250cc providing riders with a high-revving engine that competes with the likes of 250 4Str bikes, while the 350cc manages to keep a greater torque and rounded delivery, enhancing its ease of recreational use, at lower speeds while still provides enough overall horsepower for race use.
» Cylinder, piston, and power valve: to further differentiate the two bikes, apart from the obvious engine capacity, Betamotor engineers worked on new cylinders and pistons, designed specifically for each engine. The power valve, too, was calibrated accurately to manage the two deliveries by adopting different springs.
» Crankshaft: the two motorcycles have a different stroke, with the 250cc reaching 72mm and the 350cc reaching 73.6mm.
» Crankcase: new engine crankcases, with different internals between the two capacities, matched with each model’s crankshaft.
» Gear box: gear boxes are shared between both models, with the only difference being the final ratios of the sprockets, 13/50 for the 250 and 13/47 for its big sister.
Exhaust: also new for both models. Exhaust systems were designed to enhance the features of both engines, and differ in the internal silencer diameter, which is bigger on the 350.
New components shared by all RX Models:

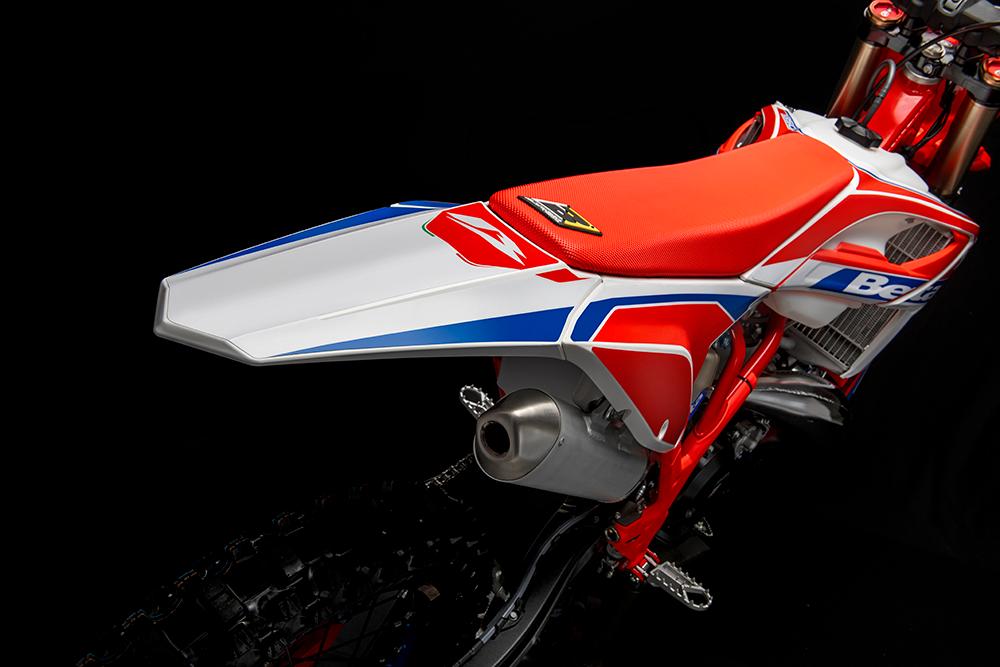

Graphics: a modern race look, simple yet bold, the final touch to the Italian RX range.
Radiators: their bearing structure was strengthened to prevent any deformation that might affect their operation, even during heavy-duty use.
|
