In automation and industrial machinery, precision and reliability are key factors determining the success of any operation. Among the numerous components designed to enhance precision, pneumatic rotary indexer actuators stand out for their unique ability to deliver unidirectional rotation in fixed, precise steps. These devices are integral to applications that require several sequential processing steps.

What is a Pneumatic Rotary Indexer Actuator?

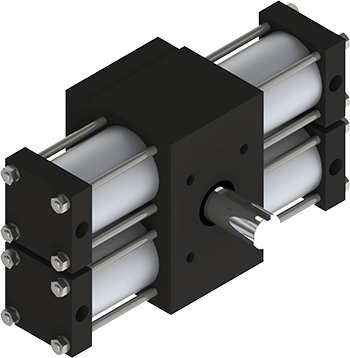

A pneumatic rotary indexing actuator is a specialized device that converts the energy of compressed air into rotary motion. Unlike standard rotary actuators that provide reciprocating motion, rotary indexing actuators are engineered to deliver motion in discrete, fixed steps. Each step aligns with tooling at a predetermined position.

How Do Pneumatic Rotary Indexing Actuators Work?

These rotary indexing actuators use compressed air to lock a table and transmit positions to it. They have pneumatic actuators or cylinders with pistons that are powered by compressed air from pneumatic lines connected to an air compressor. What makes these actuators unique is their ability to lock into specific positions at the end of each rotational step. This is achieved through mechanical hard stops, which physically limit the rotation to the desired angle. As a result, the actuator moves in a unidirectional manner, preventing any backward motion or slippage.
