Differences Between Rim and Mortise Cylinders
Do you know the difference between a rim cylinder and a mortise cylinder?

By looking at the face of the cylinder, it can be difficult to tell the difference between a mortise cylinder and a rim cylinder. It's beyond the face of the cylinder where the differences become apparent.
Rim Cylinders
  • Installed with long screws that hold the cylinder in place
  • Tailpiece is a thin length of metal that protrudes from the back of the cylinder, rotating when the key is turned
  • Tailpieces are typically cut to a specific length
  • Rim cylinders typically require more space to operate
  • Rim cylinders are commonly used in conjunction with
  • Keyed pull trims
  • Residential deadbolt locks
  • Exit Control Locks

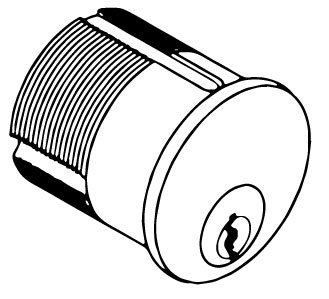

Mortise Cylinders
  • Installed with a cylinder nut that holds the cylinder in place
  • Tailpiece is typically referred to as a cam which is parallel with the back of the cylinder, rotating when the key is turned
  • There are many different types of tailpieces or cams and ensuring you have the proper cam for your application can be challenging
  • Most commonly used on
  • Keyed lever trims
  • Most keyswitches
  • Cylinder dogging on exit devices
Did You Know?
Detex has created a chart to help you know which Detex products take which cylinder. Download it here.
