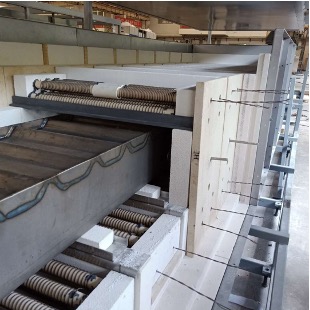

Furnace brazing is a critical process used to join metal components in various industries. However, like any manufacturing process, it comes with its share of challenges and potential defects. In this article, we will explore some common furnace brazing issues and possible solutions to ensure high-quality and reliable brazed joints.

1. Non-Brazed Areas: Contamination Woes and Solutions

A common anomaly in furnace brazing is the occurrence of non-brazed areas on joints. This defect arises when the braze fails to wet the components adequately due to contamination. A reliable solution involves meticulous part cleaning to ensure a contaminant-free surface before brazing. The use of sufficient water vapor inside the furnace can aid in removing any organic residue.

Requirements for Furnace: Dew point control

2. Braze Voids: Various Causes

Braze voids are a recurring concern during furnace brazing and can be attributed to several factors, including inadequate braze volume, excessive weight pressure, low braze temperature, short dwell times, and insufficient component contact. To minimize voids, it is crucial to achieve consistent and uniform contact between the components. Giant weld gaps are often a result of uneven reduced gas distribution within the furnace. Careful monitoring and adjustments to gas flow can maintain consistent weld gaps and prevent defects.

Furnace Requirements: Dew point control, a streamlined chamber design, even temperature distribution, and sufficient heating power. Improving the gas intake method and optimizing gas distribution.

3. Black Product Surface: Managing Oxidation

A dark product surface can indicate oxidation during brazing. To combat this, maintaining the furnace's dew point and oxygen content within the desired range is crucial. Suitable amount of hydrogen content can also improve this situation.

Furnace Requirements: Streamlined furnace design with no dead ends for gas flow, low-friction gas flow, scientifically positioned gas inlets, and a controlled oxygen content.

4. Grain Coarsening: Overcoming Temperature Disparities

Grain coarsening can arise due to lack of the braze flow and uneven temperature distribution during brazing. Ensuring proper temperature uniformity and control throughout the furnace can help prevent this issue.

Furnace Requirements: Improved thermal layout and special designs for zone connections to ensure even heat distribution.

5. Lead Pull Failure: Navigating the Culprits

Lead pull failures can result from aluminum traces in the braze material and low hydrogen content in the atmosphere during brazing, among other factors.

Furnace Requirements: Hydrogen control, a mass flow rate controller if needed, and a gas-tight chamber.

In conclusion, addressing common furnace brazing issues necessitates a comprehensive approach that encompasses part preparation, precise furnace parameters, atmosphere control, and unwavering manufacturing discipline. By understanding and implementing appropriate solutions, manufacturers can consistently achieve high-quality brazed joints, providing customers with dependable and reliable products.
