Used Harper Calciner For Sale

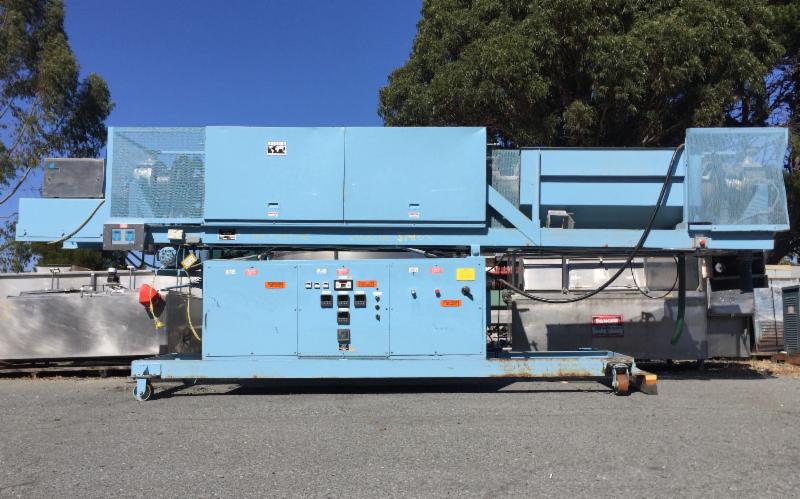

Calciner, 10" diameter X 240" long manufactured by Harper Intl., model number NE-10D90-RT-WC-20-F. Tube constructed of HT (High Temperature) Alloy. Unit is a three-zone design with 90" long hot zone and 60" long cooling zone. Heating/cooling zones driven by 480V, 3/60hz power supply. Maximum temperature rating of 650 Deg C., operating temperature of 450 Deg C. Includes 3-1/2" flanged discharge on each end of tube. Includes gas-tight bellow seals. Calciner complete with Schenk Accurate bulk solids metering feeder. Tube driven by 3/4 HP, 1725 RPM, 90V motor through gear reducer. Serial number FJ69. Mounted on frame with casters. Previously used in glass crushing/cooking operation.
|
Additional Calciners, Dryers, Kilns, and Furnaces:
Calciners:
S302170 Calciner, 10 X 7', Gas, S/st, 1800 Deg F,
S741074 Calciner, 10 X 240, Harper, Electric, 3-Zone, 650 Deg C.,
S733023 Calciner, 6 X 5', Custom, S/st, Gas-fired,
Rotary Dryers:
A740007 Dryer, Rotary, 90 x 45', 304 S/st, Gas,
C740629 Dryer, Rotary, 14 X 14', C/st, 1 HP, Indirect Fired
A740890 Dryer, Rotary, 10' X 42', Quad Pass, Heil, Trunnions, Triple,
C739842 Dryer, Rotary, 7' X 33', C/St, Burner, Dust Collector
S739482 Dryer, Rotary, 5' x 11'8, S/st, 3 HP,
S741067 Dryer, Rotary, 5'2 x 24', S/st, FMC Link-Belt, 10 HP,
S741066 Dryer, Rotary, 5'2 x 24', S/st, FMC Link-Belt, 10 HP,
A740499 Dryer, Rotary, 5' x 26', S/st, Link-Belt,
C739844 Dryer, Rotary, 4' X 32', C/St, Skid Mounted
C739904 Dryer, Rotary, 4' X 48', C/st, Internal Paddles
S741063 Dryer, Rotary, Roto-Louvre, 5'6 x 29', C/st, 7.5 HP,
S741062 Dryer, Rotary, Roto-Louvre, 5'6 x 29', C/st, 7.5 HP,
C730734 Dryer, Turbo, Rotary, 6'8 Trays, S/st, Krauss Maffei, (5)
Kilns:
C740503 Kiln, 8' X 92', Rotary, Metso, 2400 Deg F, Ported, 2013
C740514 Kiln, Box, 24X24X24, ThermalTek, Furnace, 1600 deg F
C740511 Kiln, Box, 3' X 2' X 2', 18 CF, 2350 Deg F, Envelope
Furnaces:
S740070 Furnace, Belt, 36 x 10', S/st Conv, Nat. Gas, 1/2 hp
C740515 Furnace, Box, 24X24X24, ThermalTek, Box, 1600 Deg F
C740513 Furnace, Box, 3' X 2' X 2', 18 CF, 2350 Deg F, Envelope
S408485 Furnace, Firebox, 10MM BTU/hr, Gas/oil, Peabody,
C735492 Furnace, Kiln, Thermolyne, Mdl FA1748, 17-1/2l x 9-1/2w
C405505 Furnace, Multiple Hearth, Ram Engr, 25' X 6 Hearth,
S409494 Furnace, Tilting, Melting, Lindberg, Gas, Zinc,
C409501 Furnace, Vertical, Kiln, 1MM BTU/hr, 900 lb/hr, Nat Gas
|
|
