Tired of unreliable pressure transducers and repetitive expensive repairs?

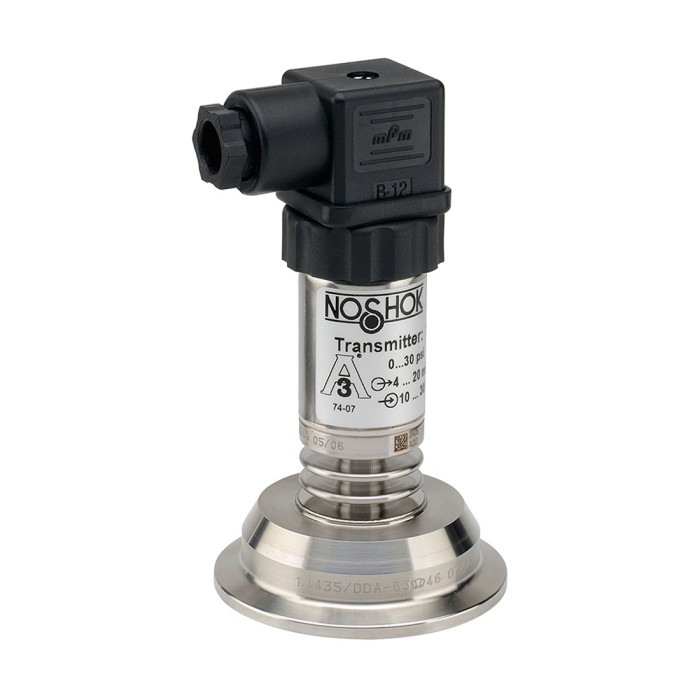

Well, there is a better way. NoShok's 11 Series are a tough, accurate, reliable, and economical solution to many sanitary pressure transducer needs. Whether it be on a CIP skid or measuring line pressure on your HTST system, these rugged little workhorses get the job done day in and day out. With service life of over 100 MILLION cycles, and stability that other manufacturers dream of, you can install these instruments and rely on their doing their job and reducing downtime. We have you covered!

• Output signals 4 mA to 20 mA 2-wire, 0 Vdc to 5 Vdc 3-wire, 1 Vdc to 5 Vdc 3-wire, 1 Vdc to 6 Vdc 3-wire, 0 Vdc to 10 Vdc, 3-wire, 1 Vdc to 11 Vdc 3-wire

• Pressure ranges Vacuum through 0 psig to 400 psig

• Accuracy ±0.25% full scale (BFSL); Optional ±0.125% full scale (BFSL); (Includes the effects of non-linearity, hysteresis, non-repeatability, zero point and full scale errors) Stability ±0.2% full scale for 1 year, non-accumulating

• Adjustment ±10% full scale for zero and span

• Response time < 10 ms

• Service life > 100,000,000 load cycles

• Temperature ranges Compensated 32 ºF to 175 ºF (0 ºC to 80 ºC) Effect ±0.01%/ºF for zero and span Media -40 °F to 300 °F (-40 °C to 150 °C) Ambient -40 ºF to 176 ºF (-40 ºC to 80 ºC) Storage -40 °F to 212 °F (-40 °C to 100 °C)

• Proof pressure 3 times full scale for 0 psig to 2 psig through 0 psig to 200 psig 1.75 times full scale for 0 psig to 300 psig through 0 psig to 400 psig Burst pressure 3.8 times full scale for 0 psig to 2 psig through 0 psig to 200 psig 4 times full scale for 0 psig to 300 psig through 0 psig to 400 psig

Please call or email us for a quote on your application today!

Email: sales@ksecorp.com 1-(800)-573-4243
