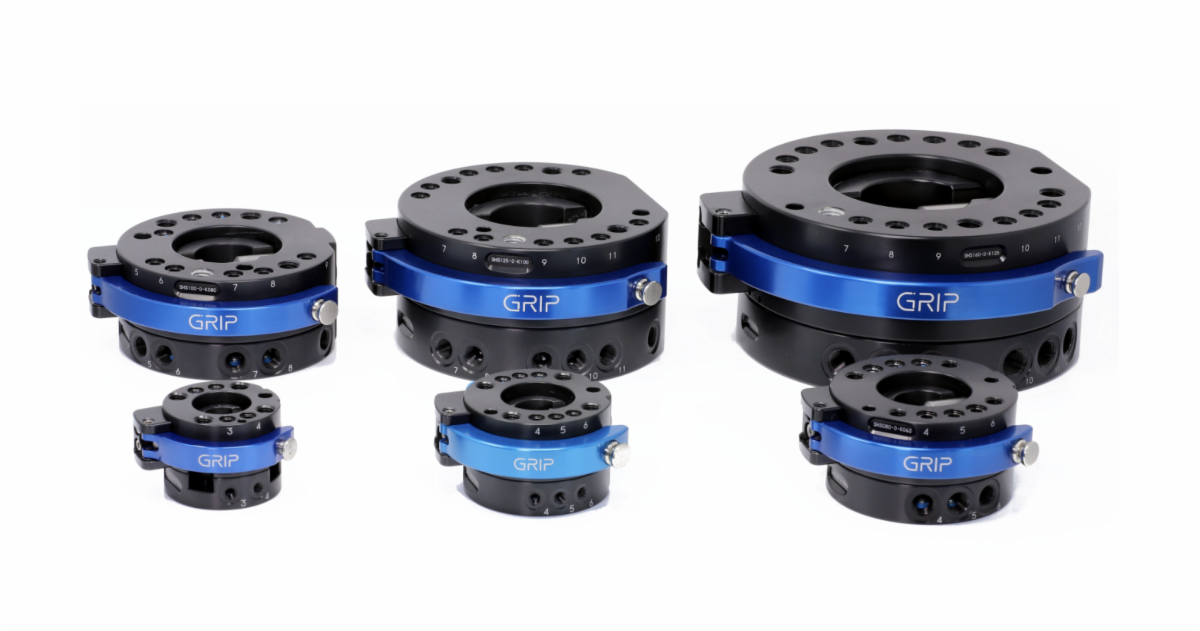

The SHS Connector – the original one with the blue hand lever – can now be purchased directly from Essential Robot Products. This thrust lever system was developed by GRIP over 10 years ago and is among the most popular manual tool changers in the world and is currently available for immediate delivery.
Features of the SHS Connector

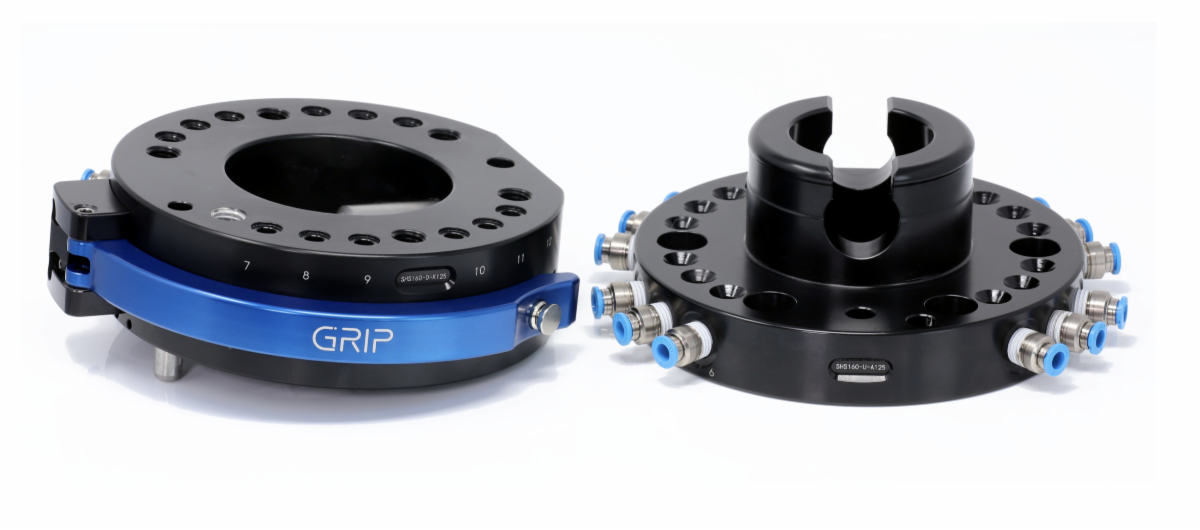

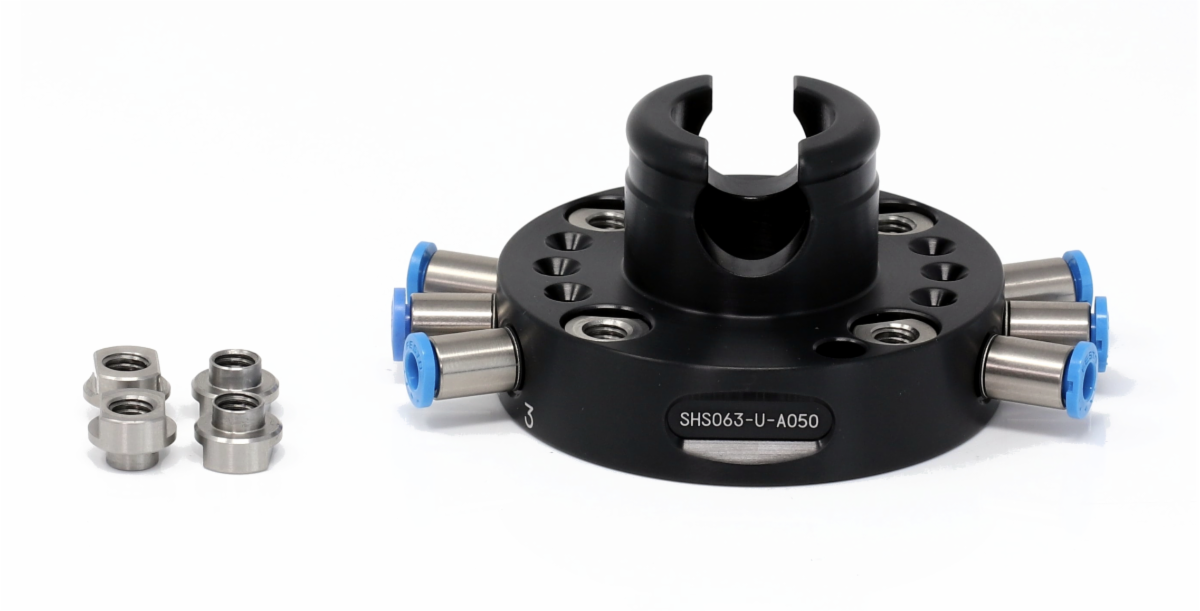

The SHS Connector is equipped with integrated pneumatic feedthroughs, with electrical feedthroughs being optional. The Connector consists of a cylindrical bolt which locks the upper and lower assemblies. Closing the lever to lock, cinches the two assemblies together. A centering disc can be installed on both the upper assembly (robot side) and lower assembly (tool side) and ensures that the tools are correctly aligned with the robot arm.
What makes the GRIP SHS tool changer cutting edge:
• Integrated pneumatic feedthroughs
• Integrated mounting surface for energy feed-through
• Interface according to DIN EN ISO 9409-1
• High repeatability < 0.02 mm
• Durable - over 5000 change cycles without loss of repeatability
• Withstands high loads
• Tool-free thanks to integrated operating lever

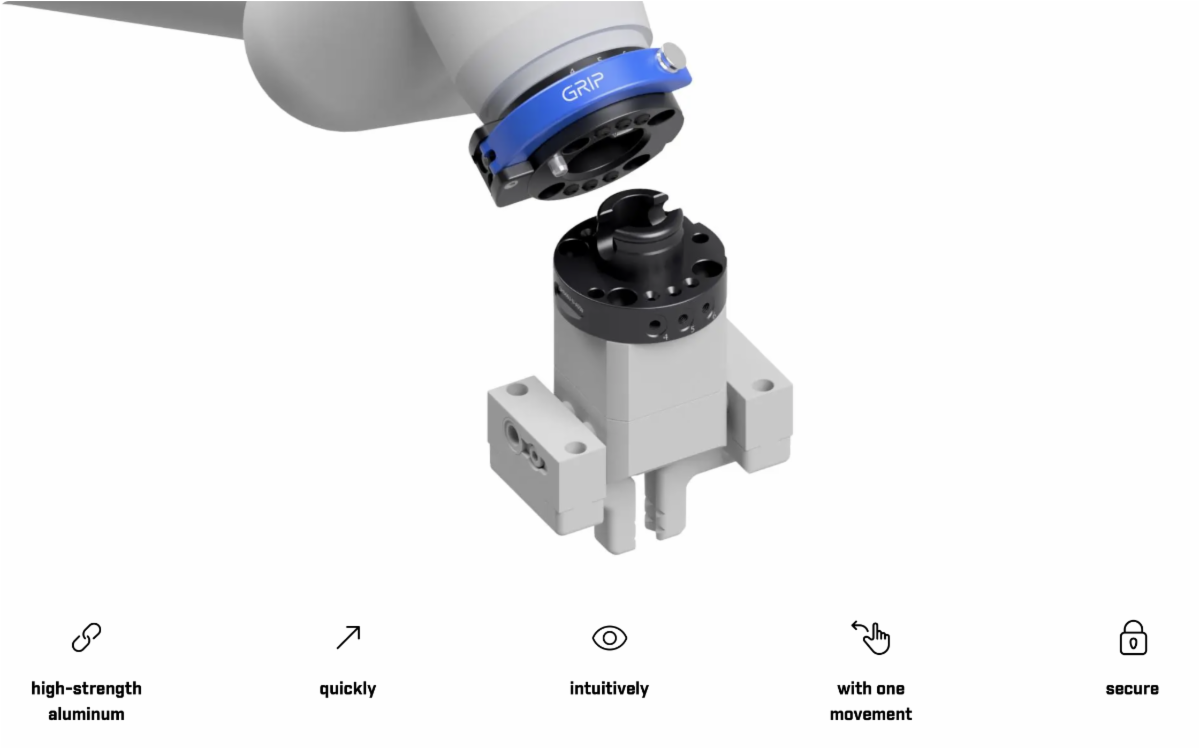

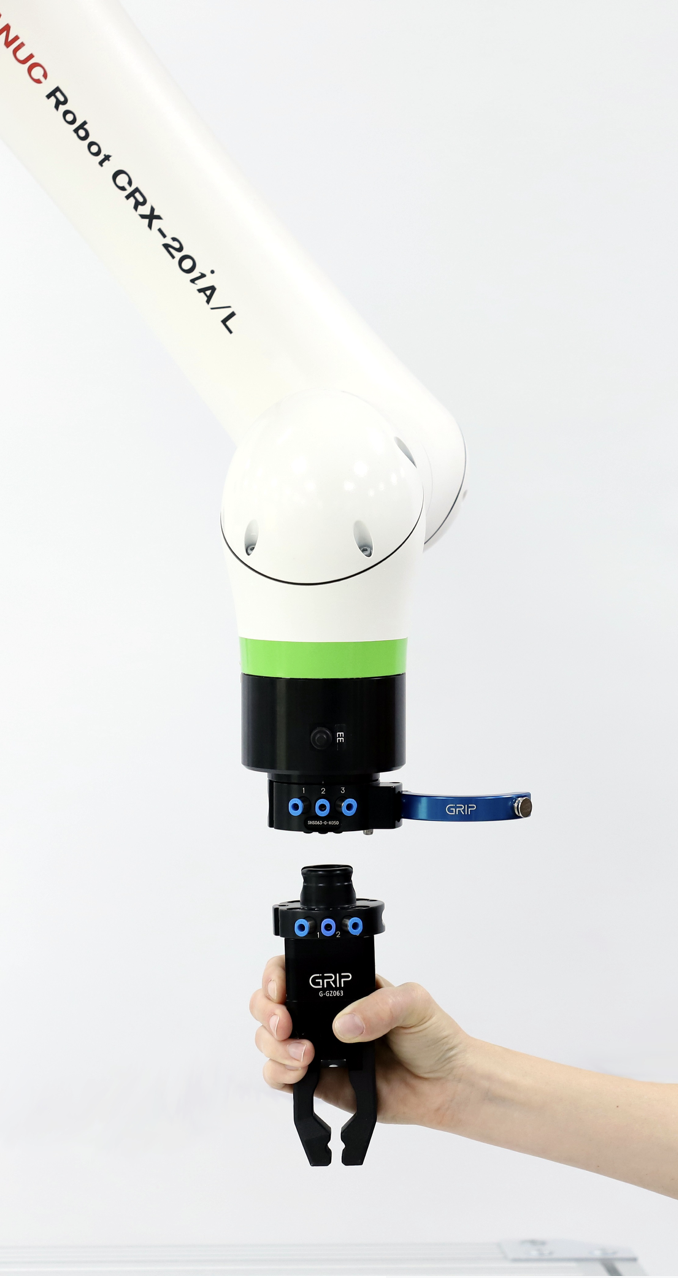

• Intuitive operation: Can be opened and closed with one hand
• Low weight - made of high-strength anodized aluminum
• Locking pin secures hand lever against accidental release
|
