Smallest PC with AMD Ryzen and

Sunlight-Readable Touch Monitors

American quality once again meets German engineering with Impact’s smallest PC featuring AMD Ryzen. Connecting them to sunlight-readable touch monitors - described below – is convenient and made possible via HDMI or Display Port and USB cables.

Choose between PC/Media Player or Motherboard

Impact Components introduces new compact media players / IPCs (industrial personal computers) IMP-3714-R1 and IMP-3714-R2. Measuring only 147 x 165 x 36 mm (5.78" x 6.5" x 1.4") and weighing only about 1 kg (2.2 Lb), the computers offer significant power savings. Users can deploy a few such fanless computers or media players for gaming, kiosks, or robotic automation to save money on electricity thanks to their low power consumption. With or without chassis (just as motherboards optionally), these products available from Impact feature built-in AMD CPUs and and AMD Radeon™ Vega Graphics.

Operating temperature in chassis:

-10 °C to +35 °C in horizontal position

-10 °C to +40 °C in vertical position

(Motherboard operating temperature: -10°C to +70°C)

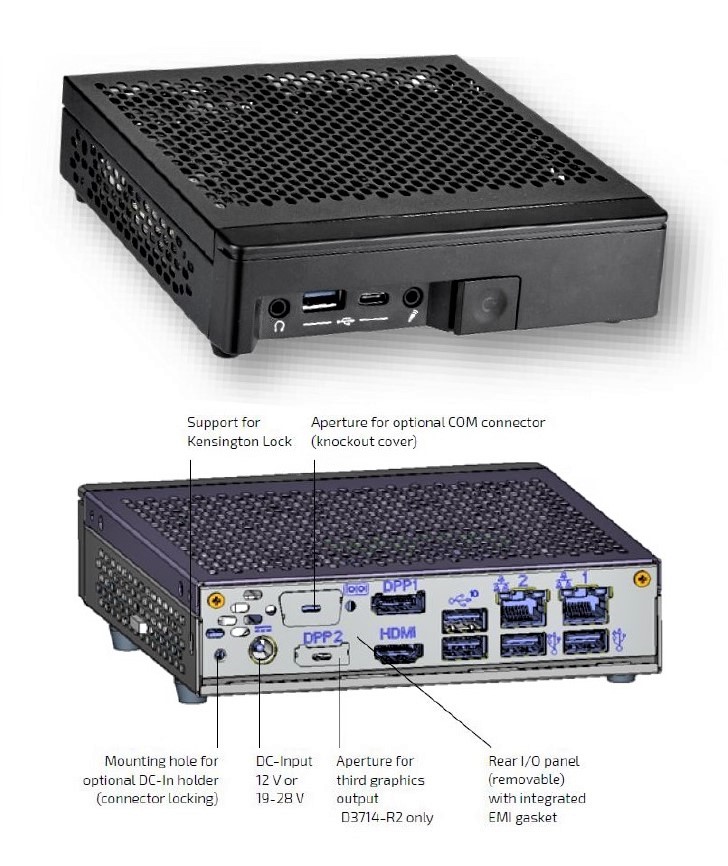

Chassis Data Sheet


Board Data Sheet

Impact’s media players / IPCs are based on Kontron’s new German-made AMD Ryzen based industrial grade motherboard of 5.5”x5.8” mini-STX form factor capable of fanless operation. They work with latest NVME SSD drives or SATA. Each motherboard features 2 LANs, 1 GPIO, up to 3 Display Ports, 1 HDMI, 1 eDP, 1 Dual-Channel LVDS, 7 USBs, 1 USB-C, and TPM V2.0, supports Linux and Windows 10 & Windows 11, and operates with either 12V or any voltage within 19V to 28V. Optional are: chassis for -R1 & -R2 versions, heatsink or slim-profile fan, up to 2 optional Serial COM ports (like RS232/422/485), and WiFi/Bluetooth M.2 based card with special antennas.

CPU and GPU Options

D3714-R1 with AMD Ryzen™ R1102G

(Dual-Core, 2 Threads, 1.2GHz base / 2.6GHz max, Radeon™ Vega 3 Graphics)

Performance** similar to Intel Celeron J4005, Celeron 6305E, and Intel Atom E3950, higher than Celeron 4205E

D3714-R2 with AMD Ryzen™ R1305G

(Dual-Core, 4 Threads, 1.5GHz base / 2.8GHz max, Radeon™ Vega 3 Graphics)

Performance** similar to Intel Pentiums Silver J5005 and Gold G5400T, higher than Intel Celeron 6305E

D3714-V2* with AMD Ryzen™ V1605B

(Quad-Core, 8 Threads, 2.0GHz base / 3.6GHz max, Radeon™ Vega 8 Graphics)

Performance** similar to Intel Core i3-9100TE, higher than i3-8145UE, i3-10110U, i3-1115G4

Note*: this version is only available for use as a computer motherboard system or SBC without a chassis

 Note**: see more info below


With benchmark measurements taken by means of Passmark, PC Mark10, and 3D methods, these AMD equivalents to specific Intel CPUs can be established based on their Power Consumption (x axis) and CPU & GPU Performance (y axis). For example, performance of Kontron D3714-V2 motherboard with embedded AMD Ryzen CPU V1605B (QC/QuadCore) is comparable to Intel Core i3 CPU 9100TE while offering about 2x power consumption savings. Performance-per-watt is lower than mini PCs running even on the latest 11th gen Intel platform.


Click on the picture for detailed comparison of AMD and Intel processors

For example, idling on desktop, IMP3714-V2 running on AMD Ryzen Embedded V1605B CPU consumes between 11W and 13W - just half compared to Intel NUC11PAQi7.

Sunlight-Readable Touch Monitors of Wide Temp.

Impact announces availability of 21.5" and 32" Full-HD Open Frame Touch Monitors of industrial-grade for 24/7 use in such applications as retail, gaming, kiosk, self service, finance, transit, conference, education and healthcare.

* * *



  • Sunlight readable
  • Fans for heat dissipation
  • Operating temperature: -20℃ to 70℃
  • High TNI*** temp
  • Inputs: VGA, DVI, HDMI, DP, USB (Type B, for touch)
  • Viewing cone: 178 degrees in all directions
  • Touch screen: 10-touch PCAP with Strengthened Glass
  • Mounting: VESA or side screws
  • Built-in light sensor
  • Optional AntiGlare surface
  • MTBF of 50K hours
  • Fulfillable mass production lead time

Note***: TNI is "twisted nematic isotropic" transition temperature. A high TNI panel is designed to prevent blackening when the display operates under elevated temperature conditions such as outdoors. Basically TNI is when the LCD turns black and is unreadable.

21.5" Full-HD Open Frame Touch Monitor

Power consumption: 65W max

Brightness (with PCAP): 830 nits

TNI: +105℃

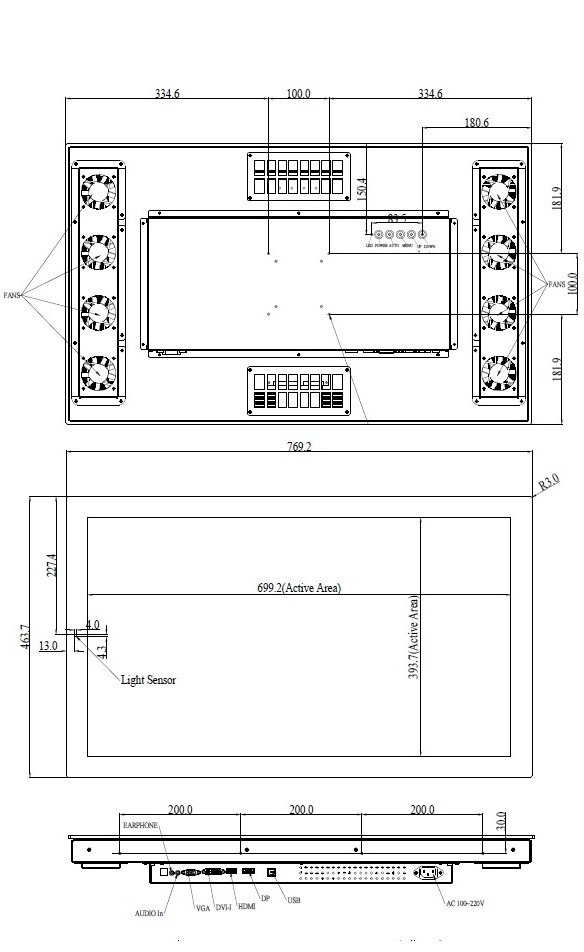

32" Full-HD Open Frame Touch Monitor

Power consumption: 80W max

Brightness (with PCAP): 1200 nits

TNI: +90℃


Please specify O/S (operating system, if any) and amount of RAM & storage you need when inquiring about computer products - supported in mass production for min 7 years or longer from introduction without any changes to the motherboard design.
